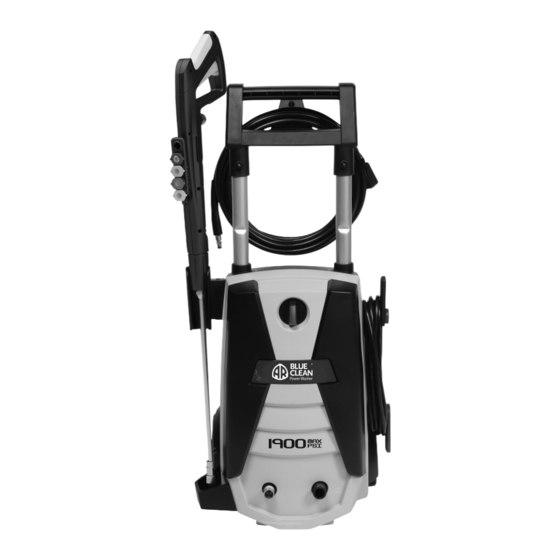

1900 PSI
Electric Pressure Washer
94628-KN
94628_AR319 S-Q_1900PSI EN.indd 1
ASSEMBLY, CARE AND
USE INSTRUCTIONS
Model AR 319 S-Q
READ CAREFULLY
IMPORTANT:
RETAIN THESE INSTRUCTIONS
AND
ATTACH RECEIPT TO MANUAL FOR FUTURE
REFERENCE.
Questions, problems, missing parts?
Before returning to your retailer, call (1-866-235-5112)
or email (info@arnorthamerica.com) our customer
service department. They are available from 8:00 a.m. -
5:00 p.m., CST, Monday - Friday. www.arblueclean.com
17/11/3 上午10:14
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Blue Clean AR 319 S-Q
Summary of Contents for Blue Clean AR 319 S-Q
- Page 1 1900 PSI Electric Pressure Washer ASSEMBLY, CARE AND USE INSTRUCTIONS Model AR 319 S-Q READ CAREFULLY IMPORTANT: RETAIN THESE INSTRUCTIONS ATTACH RECEIPT TO MANUAL FOR FUTURE REFERENCE. Questions, problems, missing parts? Before returning to your retailer, call (1-866-235-5112) or email (info@arnorthamerica.com) our customer service department.
-
Page 2: Table Of Contents
Limited Warranty ......................15 Replacement Parts List ....................16 PRODUCT SPECIFICATIONS PRODUCT SPECIFICATIONS SPECIFICATIONS Max PSI Max GPM Frequerry Weight (lbs.) Model (lbs/sq. in.) (Gal/per min) Cold Water Volts Amps AR 319 S-Q 1900 22.5 ✔ 94628_AR319 S-Q_1900PSI EN.indd 2 17/11/3 上午10:14... -
Page 3: Package Contents
PACKAGE CONTENTS PACKAGE CONTENTS PACKAGE CONTENTS PW909383SS 0°– Red 15°– Yellow 25°– Green 40°– White PART DESCRIPTION QUANTITY PART DESCRIPTION QUANTITY Spray Gun Power Washer Unit Spray Gun Trigger Lock Spray Gun Holster O-Ring Replacement Kit Nozzle Cleaning Wire Garden Hose Adapter High Pressure Hose On Board Foam Cannon Nozzle Tray... -
Page 4: Safety Information
SAFETY INFORMATION SAFETY INFORMATION SAFETY INFORMATION Please read and understand this entire manual before 9. DO NOT use your power washer when you are under attempting to assemble and operate the product. the influence of alcohol or drugs. Use this power tool carefully and only when you are alert. - Page 5 35. NEVER use lances or other parts that are not to protect pumps. compatible for this specific AR Blue Clean unit. 36. NEVER use an extension power cord since it defeats 27. NEVER use hot water with your power washer. It will the effectiveness of the GFCI and increases the overheat and damage the high pressure pump.
-
Page 6: Assembly Instructions
PREPARATION PREPARATION PREPARATION Before beginning assembly of product, make sure all Tools Required for Assembly (not included): Phillips parts are present. Compare parts with package contents screwdriver. list and hardware contents list. If any part is missing or damaged, DO NOT attempt to assemble the product. Please call customer service at 1-866-235-5112. - Page 7 ASSEMBLY INSTRUCTIONS HIGH PRESSURE HOSE ASSEMBLY The High Pressure Hose Outlet is to the left when facing the unit. Pull back collar on High Pressure Hose (D) and insert o-ring post into water outlet on the unit (A) far enough so collar can thread onto outlet threads. Turn clockwise until hand tight.
- Page 8 PREPARATION ASSEMBLY INSTRUCTIONS Unlocked Locked Locking Spray Gun (Before Lance Installation) Lance Installation To lock trigger of spray gun (H), point gun away While spray gun (H) is in the locked position, from you and turn dial to lock (“3” and “9” position). insert lance (F) into the end of the spray gun and Squeeze or pull trigger to make sure it is locked.
- Page 9 OPERATING INSTRUCTIONS ASSEMBLY INSTRUCTIONS Attach garden hose to the garden hose adapter (K). Garden Hose Adapter Installation When facing the unit, the water inlet is located to the right. Attach silver collar of garden hose adapter (K) Flush out garden hose before connecting Note: directly to power washer water inlet (A).
-
Page 10: Operating Instructions
OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS • Make sure the “ON/OFF” switch is in the “OFF” position. The power switch has international symbols for ‘on’ and ‘off’: On (|) Off (O). • Unwind the power cord completely and plug the GFCI • Always test a small area to avoid chance of damaging into a grounded 120 volt outlet. - Page 11 OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS • The power washer will pull a ratio of water to swiveling the bottom blue cord hook to the right or detergent of 10:1 or 10 parts water to 1 part left until it faces up. The power cord then can be detergent.
-
Page 12: Care And Maintenance
OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS Detergents • Use detergents designed for power washers. These ALWAYS spray detergent on a dry surface. DO NOT can be purchased online at our website www. pre-soak area. Wetting the surface first dilutes arblueclean.com. Hardware stores or home centers the detergent and reduces its cleaning ability. -
Page 13: Pump Saver
5) Turn power off when pump saver exits the machine’s while being stored in ALL climates. It also assists with water outlet. protection from internal corrosion. The AR Blue Clean part #is: PW64511(16oz. bottle). Order online at Note: Instructions on Pump Saver Bottle are generic and www.arblueclean.com... -
Page 14: Troubleshooting
CARE AND MAINTENANCE TROUBLESHOOTING If you have any questions regarding the product, please call customer service at 1-866-235-5112 PROBLEM CORRECTIVE ACTION Unit will not turn on. 1. The GFCI module on the end of the power cord must be plugged directly into an outlet. 2. -
Page 15: Limited Warranty
CARE AND MAINTENANCE TROUBLESHOOTING LIMITED WARRANTY This product has a 2 (two) year warranty. Please read the following carefully to understand what each warranty entails: This product is under warranty to the original retail consumer against defects in material and workmanship for a period 1 (one) year and is a complete “bumper to bumper”... -
Page 16: Replacement Parts List
REPLACEMENT PARTS LIST For replacement parts, call our customer service department at 1-866-235-5112, 8:00 a.m. - 5:00 p.m., CST, Monday - Friday or order online at www.arblueclean.com 0°– Red 15˚ – Yellow 25° – Green 40˚ – White PW909383SS PART DESCRIPTION PART # PART...
