Long life, 2 to 5 times that of conventional pumps
Incorporates a new diaphragm material.
Enlarged bore size and shortened stroke extend life.
High abrasion resistance and low particle generation
No sliding parts in wetted areas.
Self-priming makes priming unnecessary

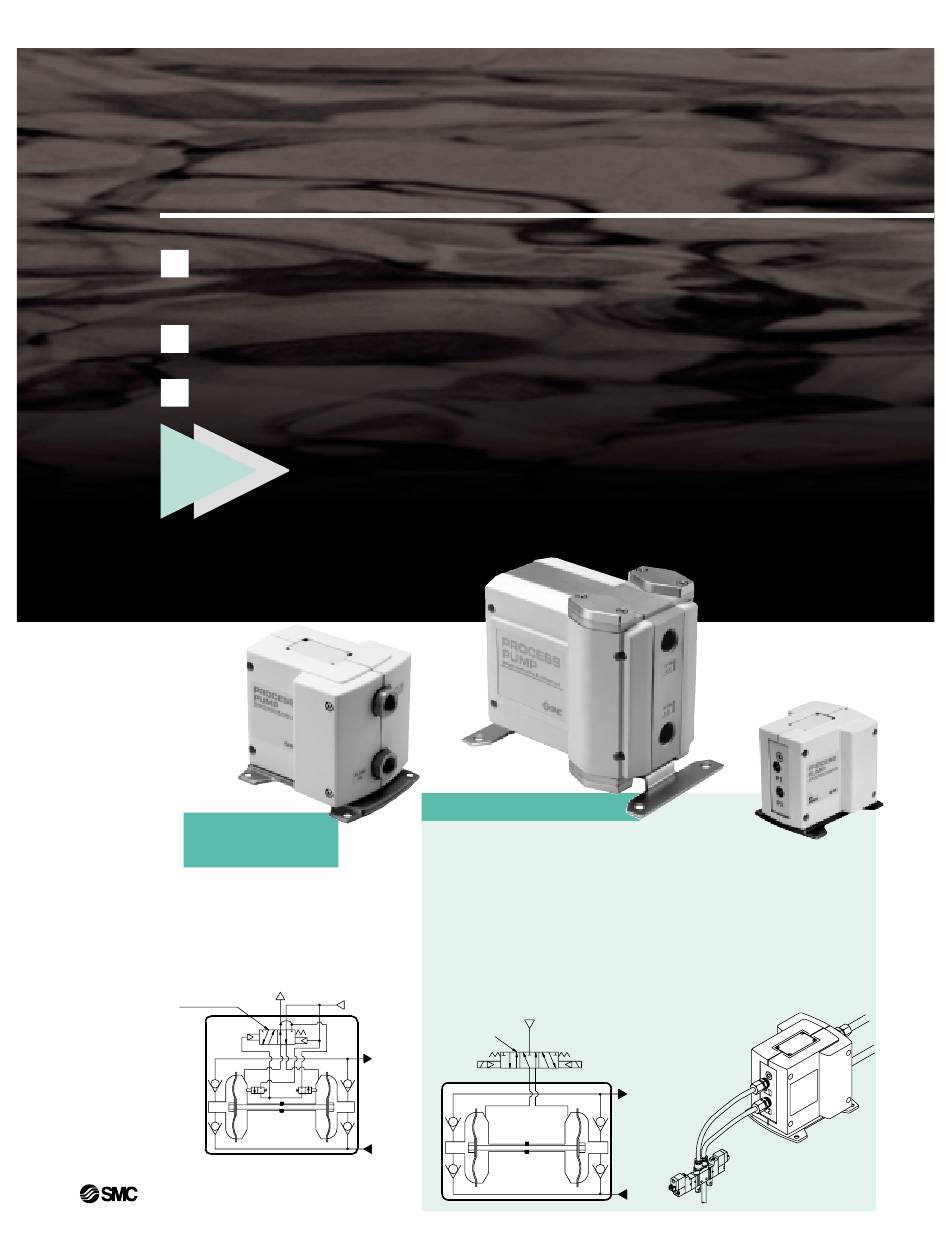

Process Pump
Series
Automatically operated type/Air operated type
(internal switching type)
Automatically
operated type
Compatible with a
wide variety of fluids
• PA3000
• PA5000
Switching valve
®
I
SHOP ONLINE at www.airlinehyd.com
Compact, high capacity
transfer and recovery of
PA3000/5000
: Max. 20l/min (0.7SCFM)
: Max. 45l/min (1.6SCFM)
Air exhaust port
Air supply port
Discharge
port
Suction
port
(external switching type)
Air operated type
Control with external switching valve
makes constant cycling possible
• Discharge rate is easily controlled.
The flow rate can be easily adjusted by the number of external solenoid valve
ON/OFF cycles.
• Stable operation is possible even with a minimal flow rate, low
pressure operation or the entrainment of gases.
• Can be used when there is repeated stopping of operation.
• Since a switching valve is not contained inside the body, life is
longer than the automatically operated type.
Air supply port
5 way valve
(compared to series PA2000)
New
New
Discharge
port
Suction
port
