Operating Instructions

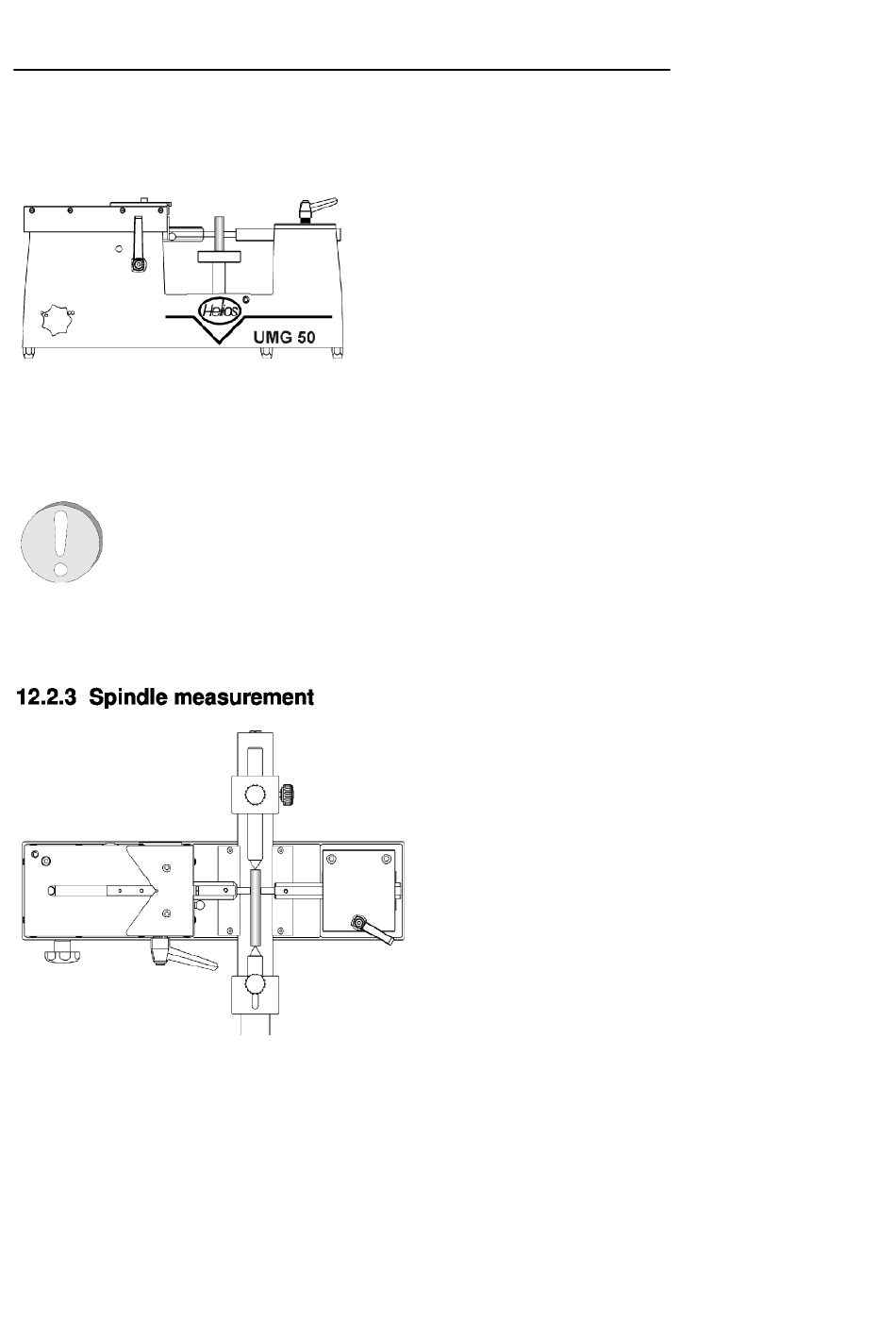

12.2.2 External measurement 50-100mm

Channel calibration is retained even after switching between internal and external
measurem ent!
18
Switch to channel 1 with the CHA button.
1.
Move the counter-spindle to the desired position.
2.
Insert appropriate end-measurement.
3.
Bring the measuring faces together.
4.
Press MEN button.
5.
Press ENT button.
6.
Enter adjusting piece measurement into preset
7.
memory with the figure key pad.
Confirm with the ENT button.
8.
9. Press MEN button.
10.Insert the test piece and read off measurement from
the display.
1. Bring the measuring spindle and the counter-
spindle together.
2. Zero with the CLR button.
3. Attach centering retainer.
4. Disengage sprung centre and clamp on test piece.
5. Place the test piece against the counter-spindle.
6. Position the measuring spindle.
7. Read off the measured value from the display.
