A.2.5.4
Functionality of Connector J8 (USB 2.0 Micro-B Connector)
This connector on the kit enables the user to connect the kit to PC using USB 2.0 Type-A to Micro-B
Cable on J8 (USB Micro-B connector).

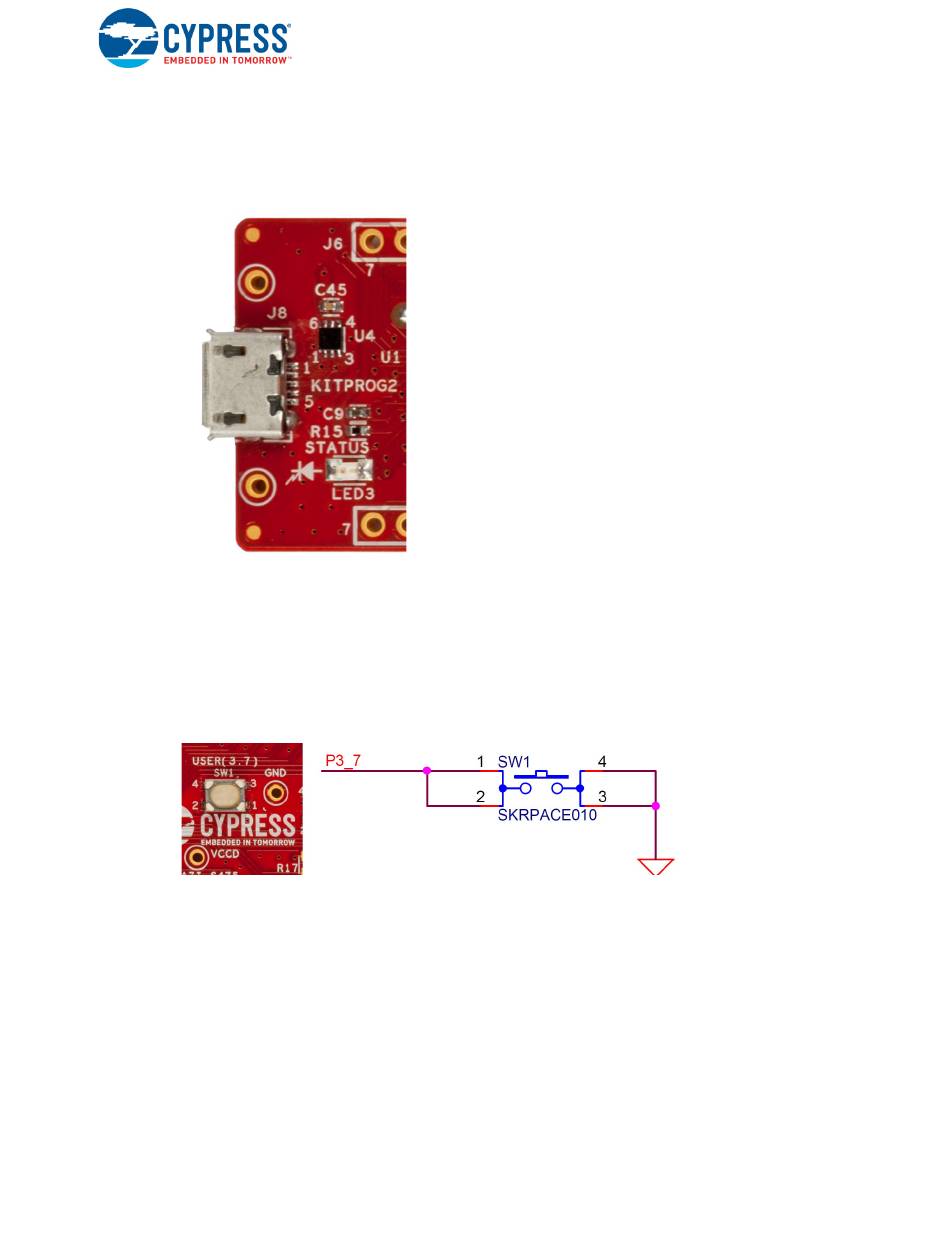

Figure A-8. USB 2.0 Micro-B connector J8
A.2.6
User and Passive Inputs
A.2.6.1
User Switch
The target PSoC 4100S Plus board contains a switch connected to the P3[7] pin on the
PSoC 4100S Plus device. This switch can be used for general user inputs or to control different
states in an application.
Figure A-9. User Switch on the Board
CY8CKIT-149 PSoC® 4100S Plus Prototyping Kit Guide, Doc. #: 002-20729 Rev. *E
42
