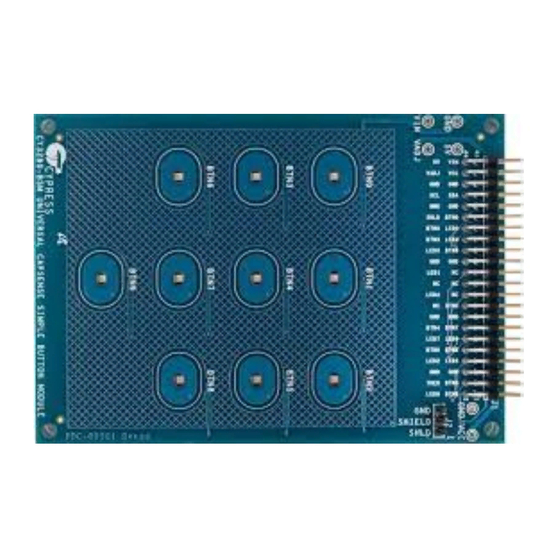

CY3280-BSM UNIVERSAL CAPSENSE
1

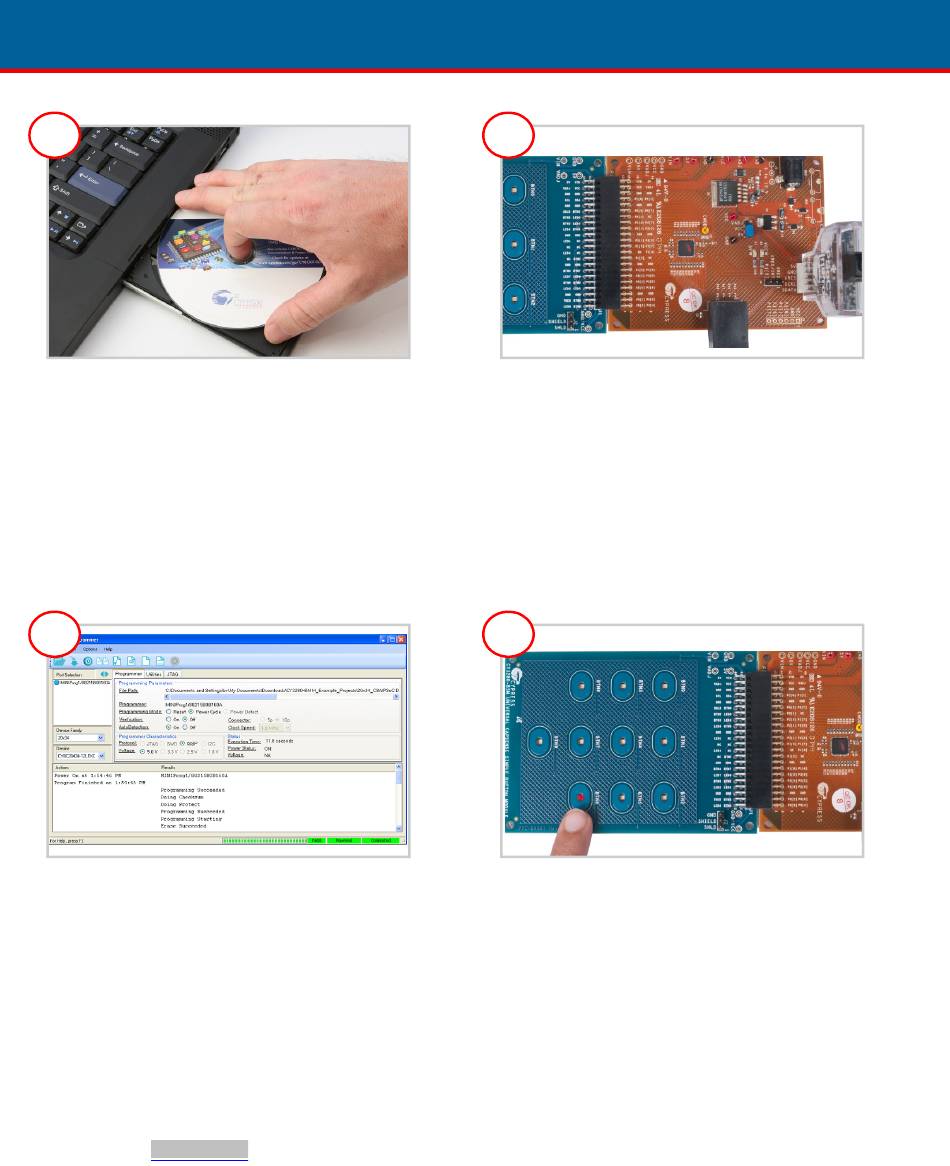

1. Insert the kit DVD in the DVD drive.
2. Install PSoC Designer and PSoC Programmer.
Note The hardware prerequisites for this kit are
CY3280-20x34 Universal CapSense
Controller (UCC) board and MiniProg1.
3
1. In PSoC Programmer, click File > File Load.
Browse and load CY3280_BSM_20x34.hex.
2. Click the Connect button. Select Power
Cycle mode
3. Click the Program button.
4. Click the Toggle power button.
Note The hex file is located at:
<Install_ directory>\Cypress\
CY3280-BSM\<version>\Firmware\
20x34_CSA\CY3280_BSM_20x34\
CY3280_BSM_20x34\
Arrow.com.
Downloaded from
®
SIMPLE BUTTON MODULE KIT
QUICK START GUIDE
2
1. Connect the CY3280-BSM board to the
CY3280-20x34 UCC board's P2 connector.
2. In the CY3280-20x34 board, place the
jumper on header J1 to short pins 2 and 3.
In the CY3280-BSM board, place the jumper
on header J2 to short pins 2 and 3.
3. Connect MiniProg1 to the CY3280-20x34
UCC board's ISSP connector (J3). Connect it to
your PC using a USB cable.
4
1. When you touch a button, the
corresponding LED on the module board lights
up, indicating the button you touched.
2. Touch the same button to turn off the LED.
You can touch multiple buttons simultaneously.
