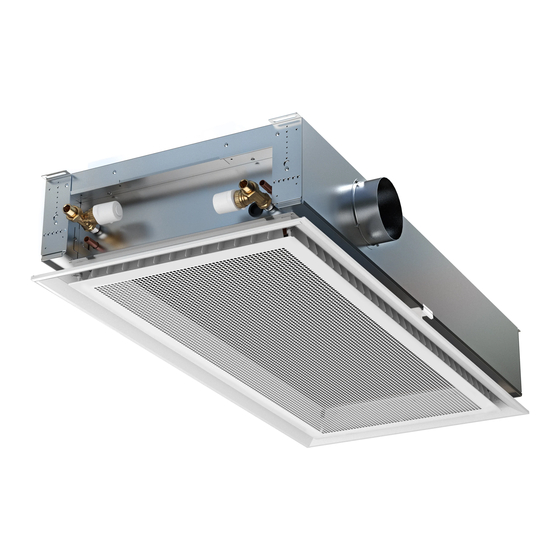

ADAPT Parasol EXb
Installation - Commissioning - Maintenance
Content
Installation, base module ................................... 2
Water ......................................................................... 4
Air .............................................................................. 5
Commissioning .................................................... 5
Nozzle setting ............................................................. 5
ADC ........................................................................... 7
Connections ......................................................... 8
Installation, design cover ................................. 11
Maintenance ...................................................... 14
Symbols in this user manual
Warning/Caution!
01/09/2020
Art. 942428024
Advertisement
Table of Contents
Related Manuals for Swegon ADAPT Parasol EXb
Summary of Contents for Swegon ADAPT Parasol EXb
-
Page 1: Table Of Contents
ADAPT Parasol EXb Installation - Commissioning - Maintenance 01/09/2020 Art. 942428024 Content Installation, base module ........2 Symbols in this user manual Water ................. 4 Air ................5 Warning/Caution! Commissioning ............ 5 Nozzle setting ............. 5 ADC ................7 Connections ............8 Installation, design cover ......... -
Page 2: Installation, Base Module
ADAPT Parasol EXb Installation, base module A1, B1 Swegon reserves the right to alter specifications. 01/09/2020... - Page 3 ADAPT Parasol EXb A3, B3 Ø125 Ø160 MF/HF A7, B6 01/09/2020 Swegon reserves the right to alter specifications.
-
Page 4: Water
Plain pipe 12 x 1.0 mm Supply pipe Plain pipe 12 x 1.0 mm B: Cooling/Heating 690, 1290 Return Plain pipe 12 x 1.0 mm Supply pipe Plain pipe 12 x 1.0 mm Swegon reserves the right to alter specifications. 01/09/2020... -
Page 5: Air
Ø 160 Air connection on side 2 (standard) T-25 1 x 8 Nozzle configuration Air connection on side 4 [Pa] q = k · √p [l/s] [pi Pa] q [l/s] k = k-factor 01/09/2020 Swegon reserves the right to alter specifications. - Page 6 The total flow of the product is the sum of the above. NB! p (1.3) = p (2.4) NOTE: The commissioning pressure is different for the long sides (2 & 4) and the short sides (1 & 3). Swegon reserves the right to alter specifications. 01/09/2020...
-
Page 7: Adc
• Check the flow compared to the max. flow in the zone, adjust the pressure set point until the correct flow is obtained with TUNE Control. If Max. flow is not achieved, it will be necessary to close another/other zone damper(s). 01/09/2020 Swegon reserves the right to alter specifications. -
Page 8: Connections
Cable adapter 24 V AC / DC Adapter VOC Sensor Pressure sensor 3xRJ12 (Modbus) Sensor module 1. Connection when no VOC sensor is used. 2. Connection when a VOC sensor is used. Swegon reserves the right to alter specifications. 01/09/2020... - Page 9 Modular 6/6 RJ12 Modular 6/6 RJ12 | 22 | 23 | 24 | 25 | | 22 | 23 | 24 | 25 | MB id 4 MB id 1 Master Slave id 1 01/09/2020 Swegon reserves the right to alter specifications.
- Page 10 PC with Switch for termination resistance. the help of Cable On the last sensor module in the converter USB-RJ12 circuit switch 1 is set to On. Swegon reserves the right to alter specifications. 01/09/2020...
-
Page 11: Installation, Design Cover
ADAPT Parasol EXb Installation, design cover A8, B7 A9, B8 TORX T-25 / 1 x 8 A10, B9 A11, B10 Click! 01/09/2020 Swegon reserves the right to alter specifications. - Page 12 ADAPT Parasol EXb A12, B11 A13, B12 A15, B14 Swegon reserves the right to alter specifications. 01/09/2020...
- Page 13 ADAPT Parasol EXb A16, B15 A17, B16 01/09/2020 Swegon reserves the right to alter specifications.
-
Page 14: Maintenance
ADAPT Parasol EXb Maintenance Swegon reserves the right to alter specifications. 01/09/2020...
