Swegon ADAPT Colibri d Installation, Commissioning Maintenance

ADAPT
Installation – Commissioning – Maintenance

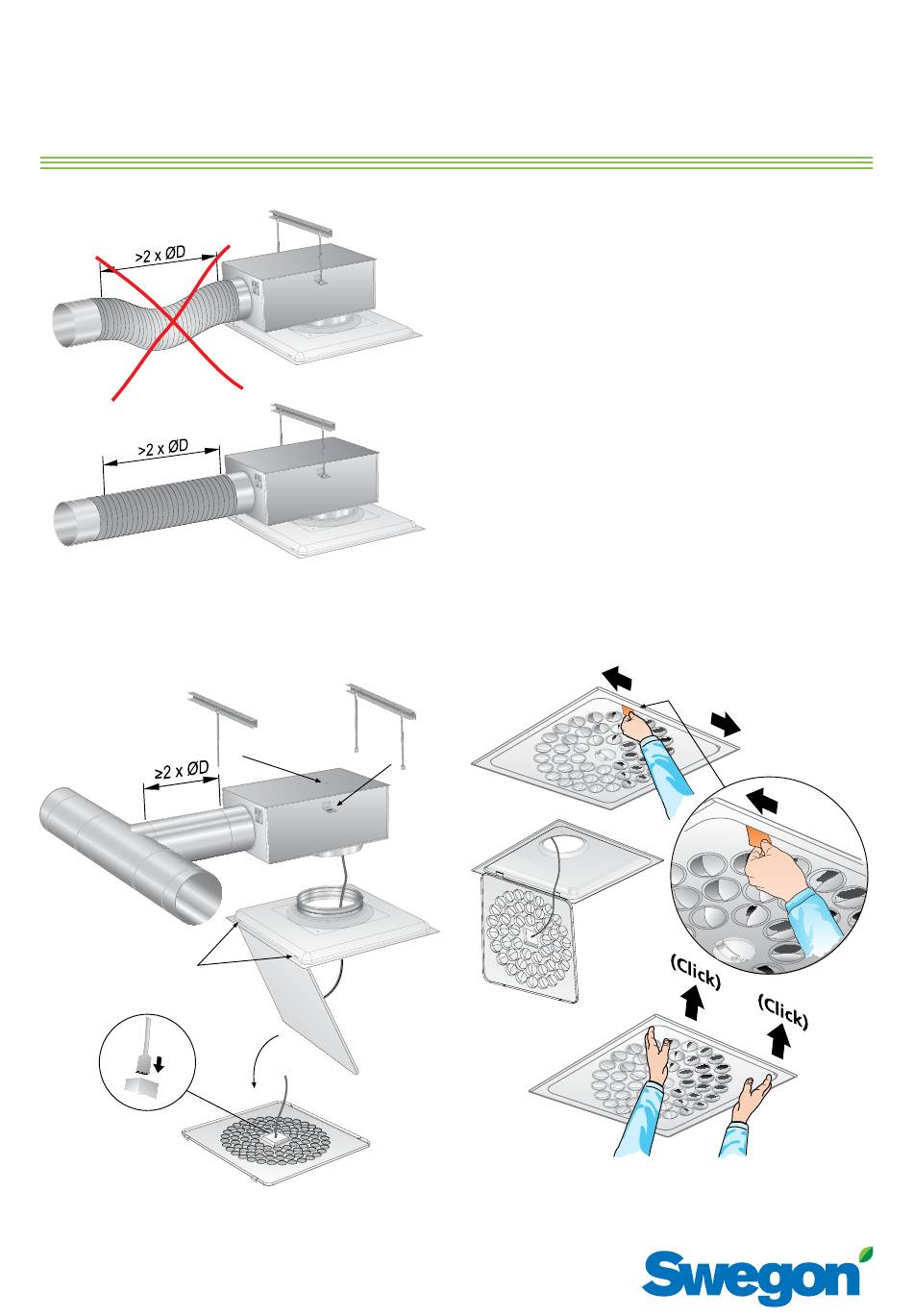

Figure 1. Using a flexible duct.
C
Figure 2. ADAPT Colibri, installation, make sure the diffuser is
turned with it's hinges (C) facing the same direction as the inlet
of the commissioning box.
Colibri d
TM
A B
Installation
All connections to the duct system should be done with a
straight duct of the same dimension as the box inlet and
with a length > 2 * ØD. If a flexible duct is used, it should be
stretched so it remains as straight as possible, see figure 1.
1. The commissioning box can be suspended from a
ceiling and connected to a duct system. Use hanger
system (A) or (B), see figure 2.
2. Press the ADAPT Colibri air diffuser into the outlet of
the commissioning box and secure it with screws or
pop rivets. The diffuser should be turned so it's hinges
(C, figure 2) face the same direction as the inlet of the
commissioning box. Readjust the hanger rods of the
commissioning box if needed, so that the air diffuser is
firmly positioned against the false ceiling, or the frame-
work of the modular suspended ceiling.
3. Remove the frontplate section of the air diffuser by
applying the Quick Access principle, see figure 3.
4. Connect the air diffuser connector to the appropriate
contact in the upper surface of the diffuser face plate.
5. Flip the diffuser face plate up to close it.
Figure 3. Quick Access.
20150225 / Art. No. 1545215
1
