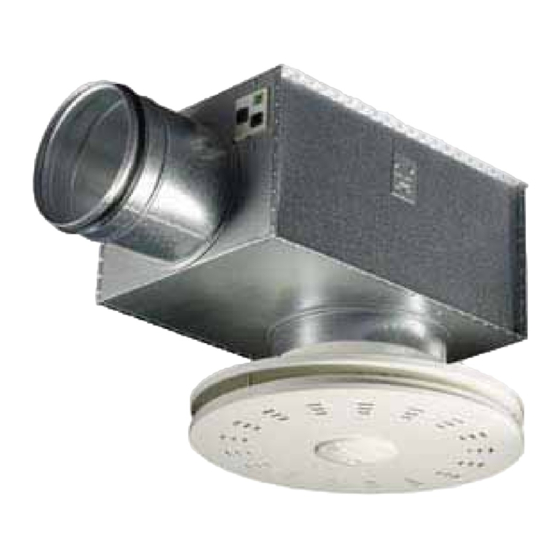

Swegon ADAPT Free Installation, Commissioning Maintenance

ADAPT
Installation - Commissioning - Maintenance
Installation
1. ADAPT Free is suspended from the ceiling. Female-
threaded screw caps are available on the top of the air
diffuser.
2. Secure the connecting duct by means of pop rivets.
3. The bottom plate can be dismantled by pressing the
fixing pins of the bottom plate outward, which will
loosen it from the upper cone.
Secure the bottom plate to the upper cone with the
safety cord, press together the S-hook to prevent it from
coming loose.
N.B.! Disconnect the electric cable from the motor.
Table. Presence detector's detection area
H A1
2.2 4.5
2.4 4.8
2.6 5.3
2.8 5.7
3.0 6.1
Dimensions specified in meters
Free
TM
B1 A2
4.0 2.9
4.3 3.3
4.7 3.7
5.0 4.1
5.4 4.5

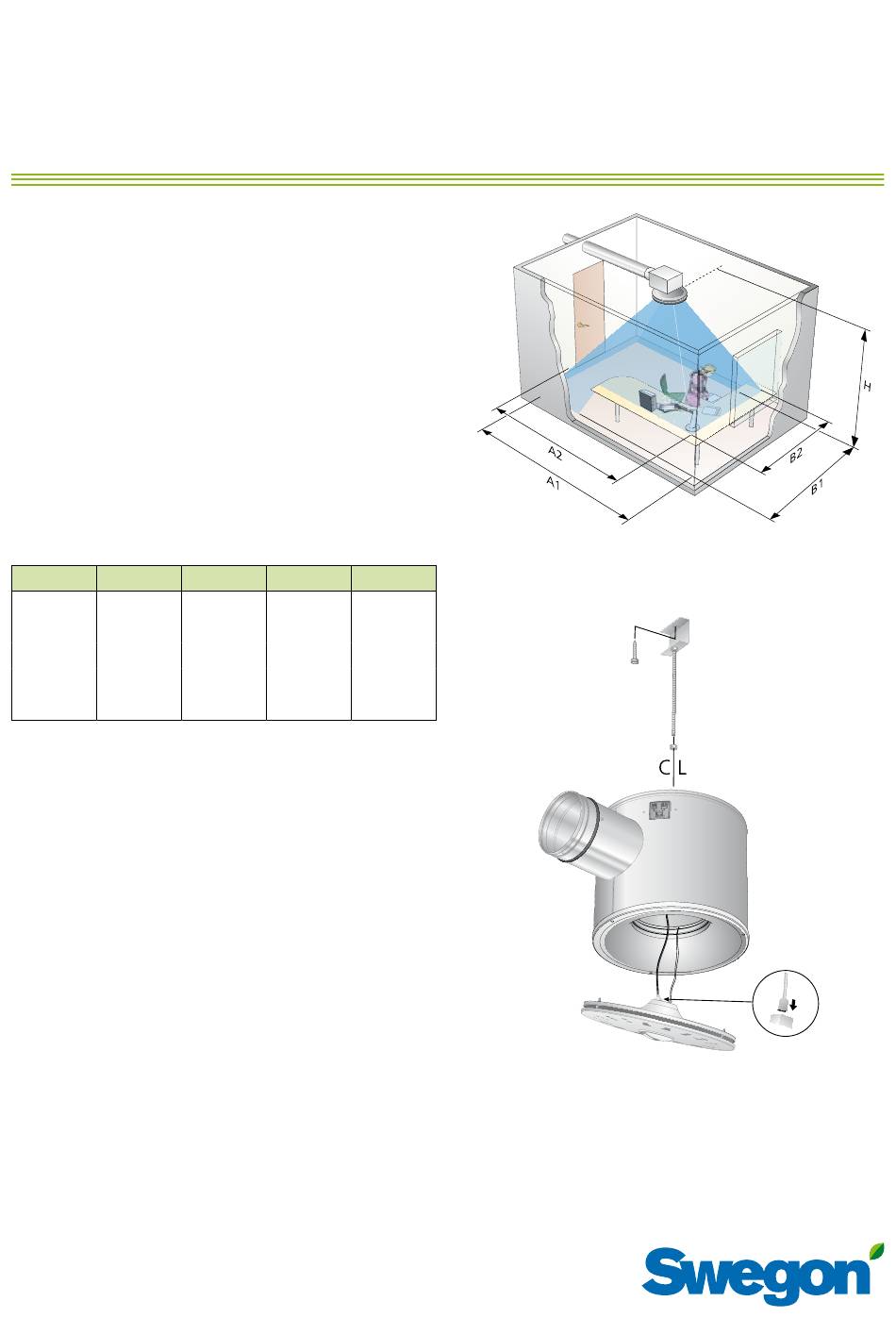

Figure 1. Presence detector's detection area.
B2
2.5
2.9
3.2
3.6
4.0
Figure 2. ADAPT Free, installation.
20100215
1
