Installation – Commissioning – Maintenance, ADAPT Sb

Installation

1. The commissioning box can be suspended from a
ceiling and connected to a duct system. Use hanger
system (A) or (B), see figure 2.
2. The front plate of ADAPT Sphere can be dismantled by
pressing the fixing pins of the bottom plate outward,
which will loosen it from the upper cone. The bottom
plate is secured to the upper cone by a safety cord.
3. Press the ADAPT Sphere air diffuser into the outlet of
the commissioning box. Make sure that the orientation
of the sensor module aligns with the extension of the
room, see figure 1. Then fixate and secure the diffuser
with screws or pop rivets. Readjust the hanger rods of
the commissioning box if necessary, so that the air dif-
fuser is firmly positioned against the false ceiling.
4. Connect the air diffuser connector into the top of the dif-
fuser (C, figure 2) and attach the safety cord. Press together
the S-shaped hook to prevent it from coming loose.

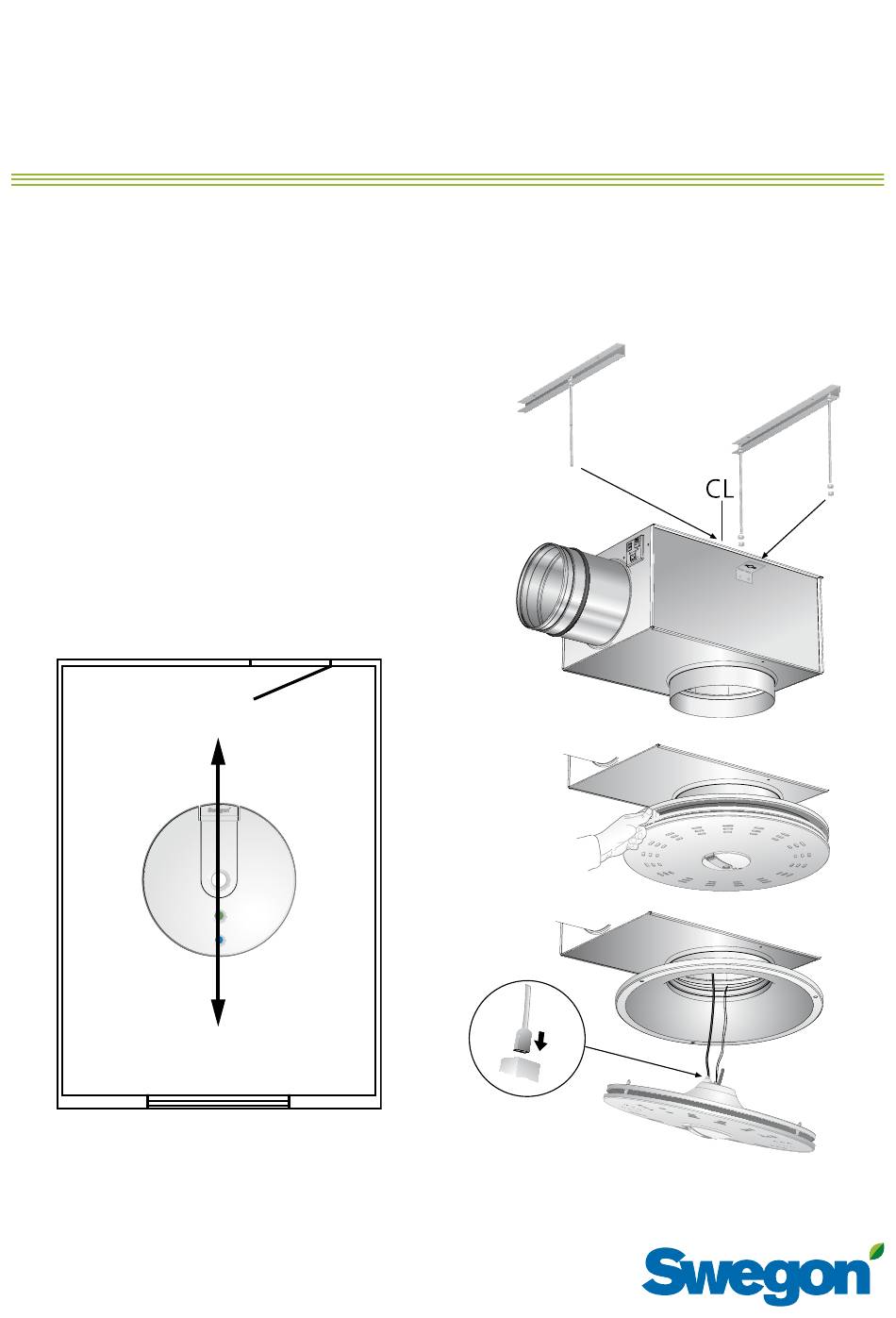

Figure 1. The orientation of the sensor module in a room or in
an office module. The LED's of the sensor should be aligned with
the extension of the room in a straight line, facing the short sides
of the room as shown by the arrow in the figure.
Sphere b
TM
5. Attach the diffuser section to the cone using the 3 pins.
6. The distance between the commissioning box and the
diffuser section can be extended to up to 200 mm. If a
greater distance is required, this is only possible if an order
is placed for a special version with extra long cables.
A
C
Figure 2. ADAPT Sphere, installation.
20120718 / Art. No. 1545216
B
