Swegon ADAPT Extract d Installation, Commissioning Maintenance

ADAPT
Installation – Commissioning – Maintenance
Installation
1. The commissioning box can be suspended from a
ceiling and connected to a duct system. Use hanger
system (A) or (B), see figure 2.
2. Plug the connector of the commissioning box into the
top of the diffuser (C, figure 2). The front plate does
not normally need to be removed when plugging the
connector in the diffuser.
3. Mount the diffuser into the outlet of the commission-
ing box. Make sure that the orientation of the sensor
module aligns with the extension of the room, see figure 1.
4. Fixate and secure the diffuser with screws or pop rivets.
Readjust the hanger rods of the commissioning box if
necessary, so that the air diffuser is firmly positioned
against the false ceiling.
Disassembly of the front plate
1. Dismantle the front plate from the diffuser body by
turning the three springs which enables separation of
the front plate from the pins of the diffuser.
2. When re-installing the front plate, position the three
springs to the match the same rungs as on delivery.

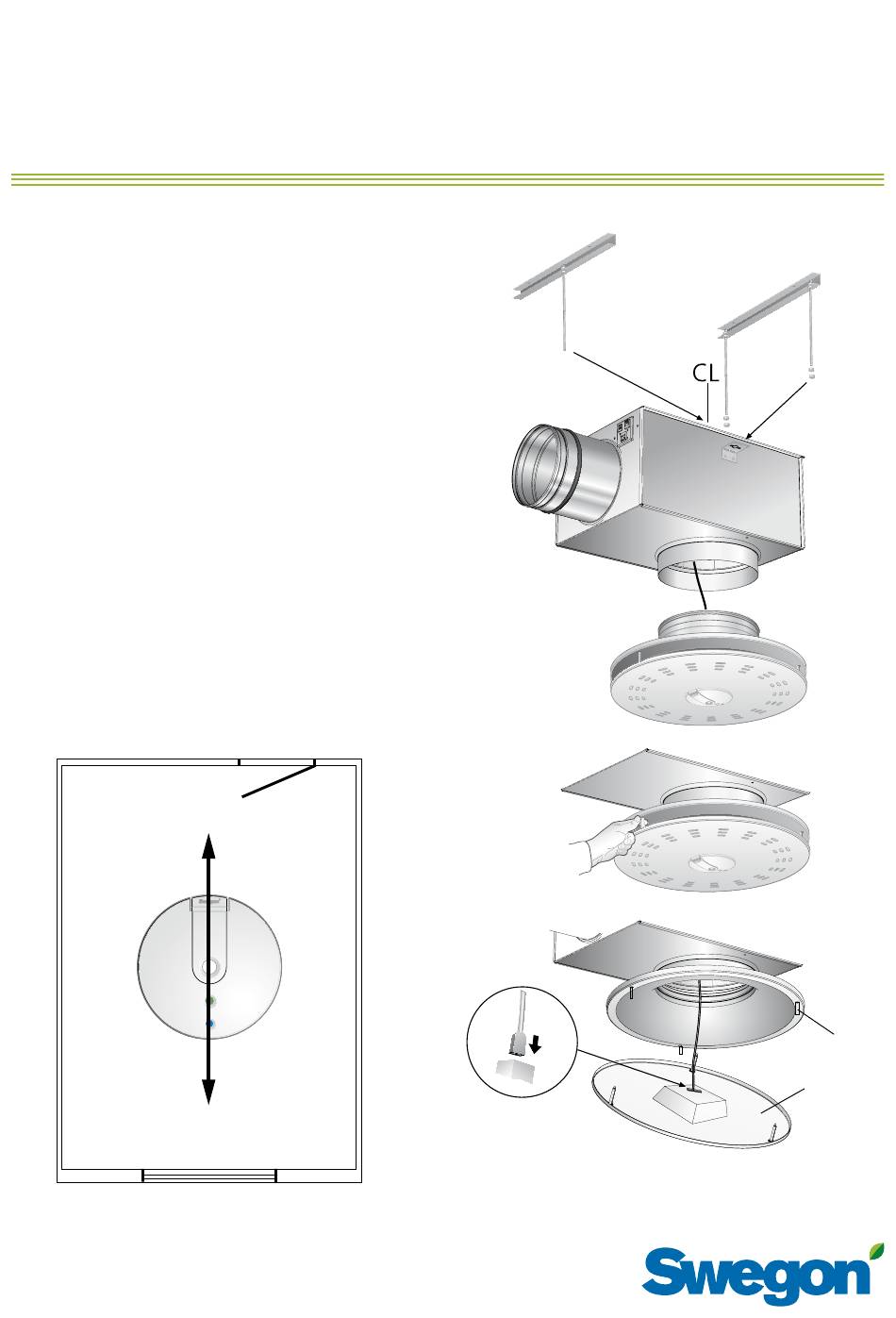

Figure 1. The orientation of the sensor module in a room or in
an office module. The LED's of the sensor should be aligned with
the extension of the room in a straight line, facing the short sides
of the room as shown by the arrow in the figure.
Extract d
TM
A
C
Figure 2. ADAPT Extract, installation.
20130610 / Art. No. 1545218
B
Pins
insulation
1
