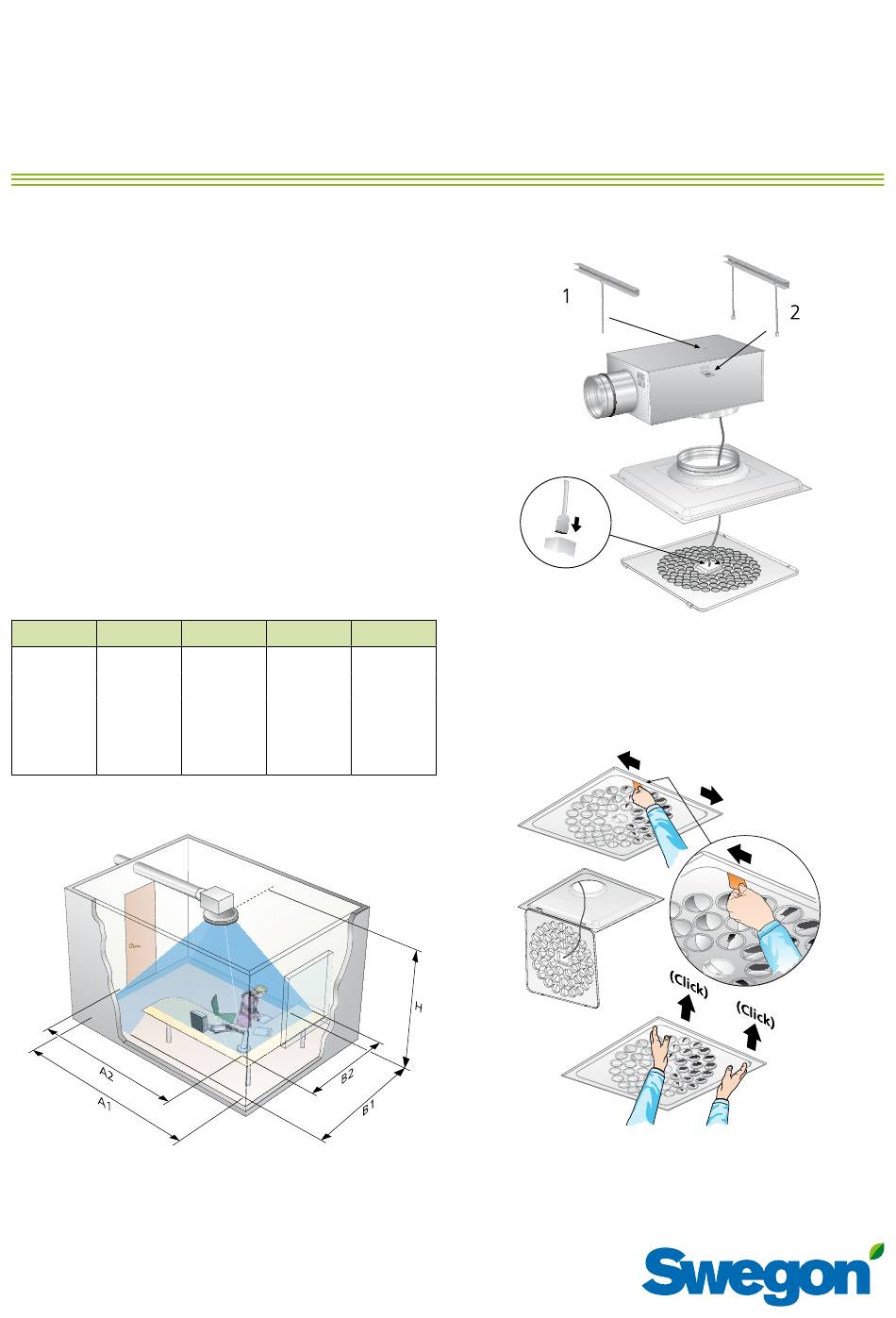

Swegon ADAPT Colibri Installation, Commissioning Maintenance

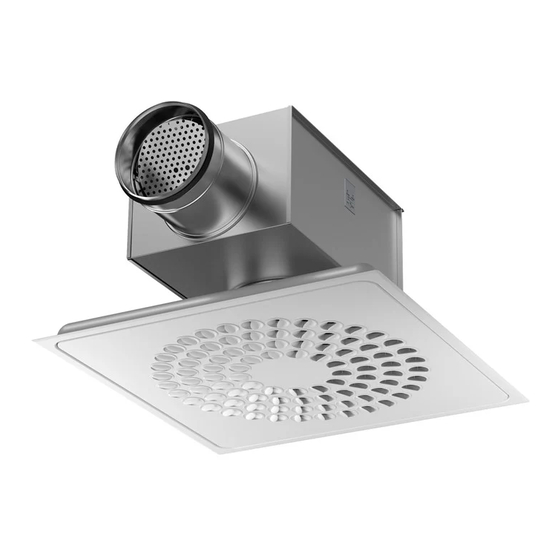

ADAPT Colibri
Installation - Commissioning - Maintenance
Installation
1. The commissioning box can be suspended from a
ceiling and connected to a duct system. Use hanger
system 1 or 2.
2. Press the ADAPT Colibri air diffuser into the outlet of
the commissioning box and secure it with screws or
pop rivets. Readjust the hanger rods of the commis-
sioning box if needed, so that the air diffuser is firmly
positioned against the false ceiling, or the framework
of the modular suspended ceiling.
3. Remove the bottom section of the air diffuser by apply-
ing the Quick Access principle, see Figure 3.
4. Connect the air diffuser connector to the appropriate
contact in the upper surface of the diffuser face plate.
5. Flip the diffuser face plate up to close it.
Table. Presence detector's detection area
H A1
2.2 4.5
2.4 4.8
2.6 5.3
2.8 5.7
3.0 6.1
Dimensions specified in meters
Figure 1. Presence detector's detection area.
B1 A2
4.0 2.9
4.3 3.3
4.7 3.7
5.0 4.1
5.4 4.5
TM
B2
2.5
Figure 2. ADAPT Colibri, installation.
2.9
3.2
3.6
4.0
Figur 3. Quick Access
20100215
1
