Swegon ADAPT Free d Installation, Commissioning Maintenance

ADAPT
Installation – Commissioning – Maintenance
Installation
All connections to the duct system should be done with a
straight duct of the same dimension as the box inlet and
with a length > 2 x ØD. If a flexible duct is used, it should be
stretched so it remains as straight as possible, see figure 1.
1. The commissioning box can be suspended from a ceiling
and connected to a duct system.The diffuser is secured
to the ceiling by connecting the M8 threaded rod (A)
into the popnut on the top of the diffuser, see figure 3.
2. Make sure that the orientation of the sensor module
aligns with the extension of the room, see figure 2. If
the connecting duct does not enter the room as in the
example in figure 4, the frontplate of the diffuser must

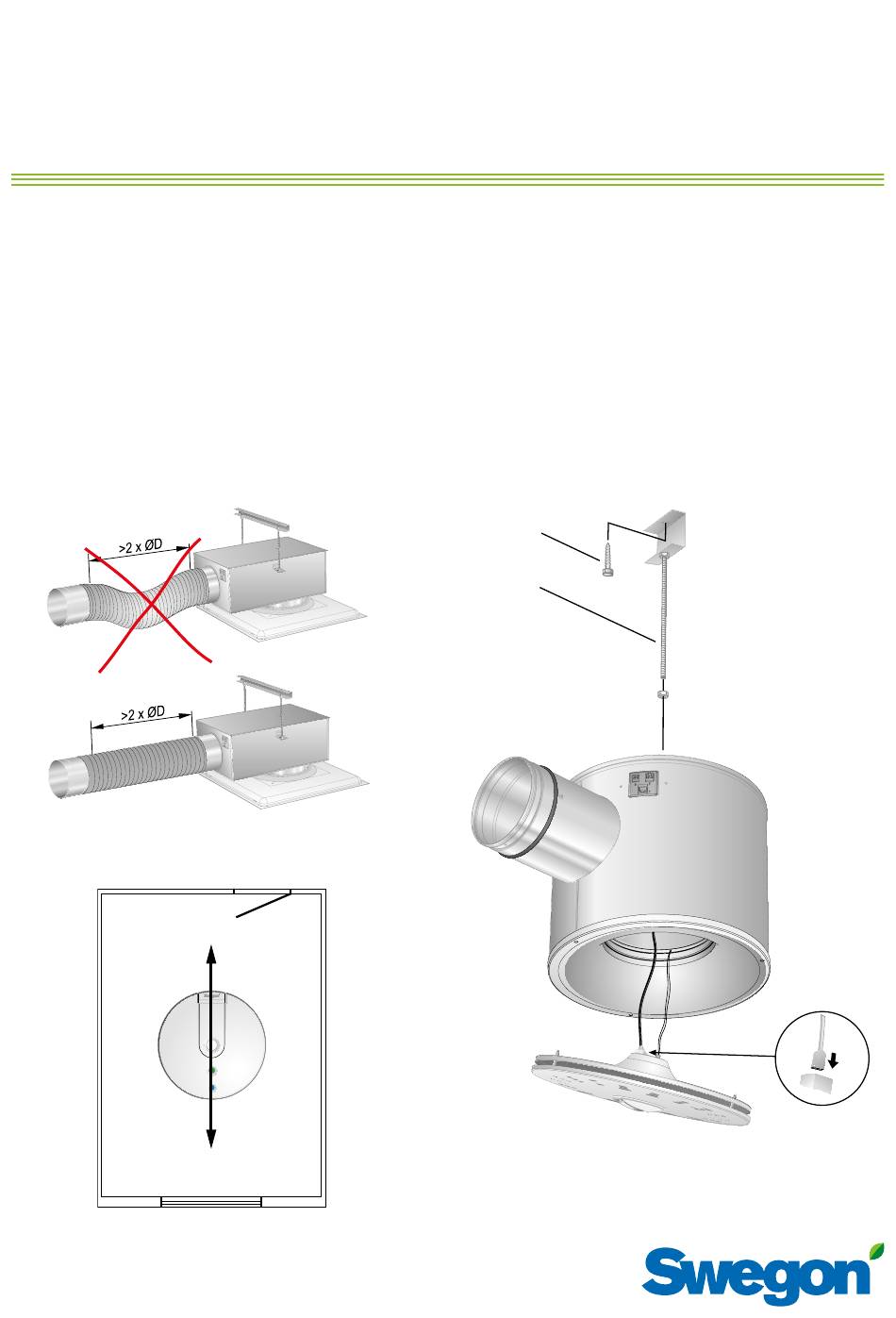

Figure 1. Using a flexible duct.
Figure 2. The orientation of the sensor module in a room or in an
office module. The LED's of the sensor should be aligned with
the extension of the room in a straight line, facing the short sides
of the room as shown by the arrow in the figure.
Free d
TM
be dismantled and rotated in a direction with the sensor
module directed as shown in figure 2. Then fixate and
secure the diffuser with screws or pop rivets. Readjust
the hanger rods of the commissioning box if
3. The front plate is dismantled by pressing the fixing pins
of the bottom plate outward, which will loosen it from
the upper cone. Detach the safety cord that secures front
plate to the upper cone and disconnect the connector
(C, figure 3) from the top of the front plate. When reas-
sembling, press together the S-hook to prevent it from
coming loose.
B
A
Figure 3. ADAPT Free, installation.
20151013 / Art. No. 1545217
necessary.
C
