Swegon ADAPT Extract Installation, Commissioning Maintenance

ADAPT
Installation - Commissioning - Maintenance
Installation
1. The commissioning box can be suspended from a ceiling
and connected to a duct system. Use hanger system 1 or 2.
2. Press the ADAPT Extract air diffuser into the outlet of
the commissioning box. Take into consideration in which
direction the sensor module should point. The module
should be oriented according to the shape of the room
and agree with the discharge direction(s) of the air dif-
fuser. Then secure the air diffuser by means of screws or
pop rivets. Readjust the hanger rods of the commission-
ing box if necessary, so that the air diffuser is positioned
firmly against the false ceiling.
3. Connect the air diffuser connector in the upper section
of the air diffuser and attach the safety cord.
Table. Presence detector's detection area
H A1
2.2 4.5
2.4 4.8
2.6 5.3
2.8 5.7
3.0 6.1
Dimensions specified in meters

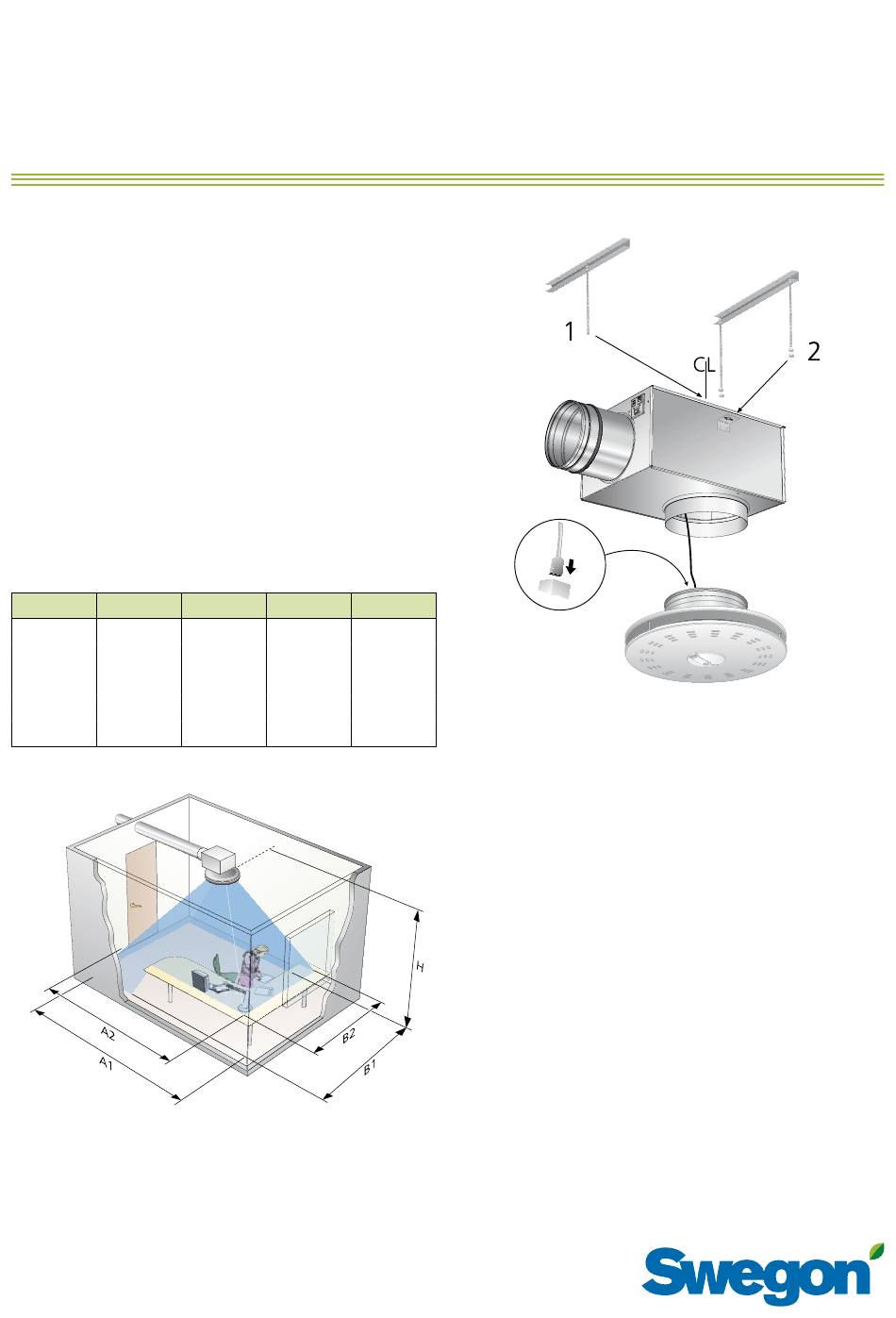

Figure 1. Presence detector's detection area.
Extract
TM
B1 A2
4.0 2.9
4.3 3.3
4.7 3.7
5.0 4.1
5.4 4.5
B2
2.5
2.9
3.2
3.6
4.0
Figure 2. ADAPT Extract, installation.
20100816
1
