Installation – Commissioning – Maintenance – ADAPT Ec
Installation
1. The commissioning box can be suspended from a
ceiling and connected to a duct system. Use hanger
system (A) or (B), see figure 2.
2. Press the ADAPT Extract air diffuser into the outlet of
the commissioning box. Make sure that the orientation
of the sensor module aligns with the extension of the
room, see figure 3. Then fixate and secure the diffuser
with screws or pop rivets. Readjust the hanger rods of

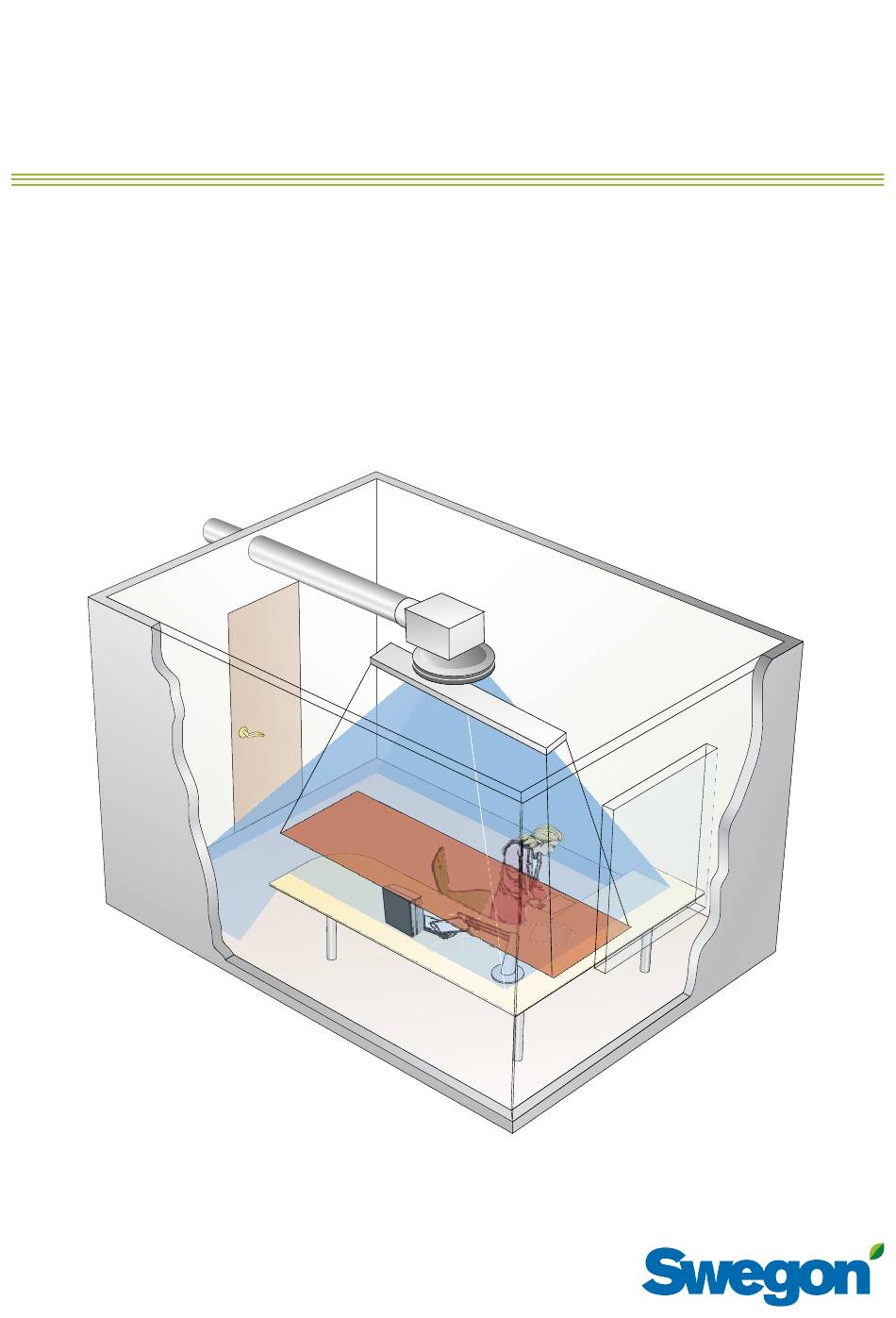

Figure 1. Lighting fixtures or similar objects must not be installed
beneaht the diffuser as this disrupts the presence detection and
room temperature measurement.
Extract
TM
the commissioning box if necessary, so that the air dif-
fuser is firmly positioned against the false ceiling.
3. Connect the air diffuser connector into the top of the
diffuser (C, figure 2) and attach the safety cord. Give
the S-shaped hook a squeeze so it can't loosen.
20120511 / Art. No. 1545218
1
