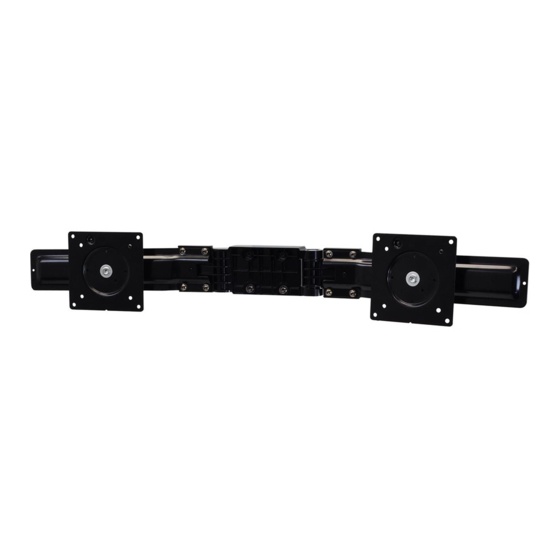

Ergotron 97-583-009 User Manual

Important!
You will need to adjust this product after installation is complete. Make sure all your equipment is properly installed on
the product before attempting adjustments. This product should move smoothly and easily through the full range of
motion and stay where you set it. If movements are too easy or diffi cult or if product does not stay in desired positions, follow
the adjustment instructions to create smooth and easy movements. Depending on your product and the adjustment, it may
take many turns to notice a diff erence. Any time equipment is added or removed from this product, resulting in a change in
the weight of the mounted load, you should repeat these adjustment steps to ensure safe and optimum operation.
888-97-171-W-00 rev.D • 11/12
6 - 16 lbs
(2.7-7.3 kg)
90°
< 10 lbs < 6-14 lbs
(4.5 kg) (2.72-6.35 kg)

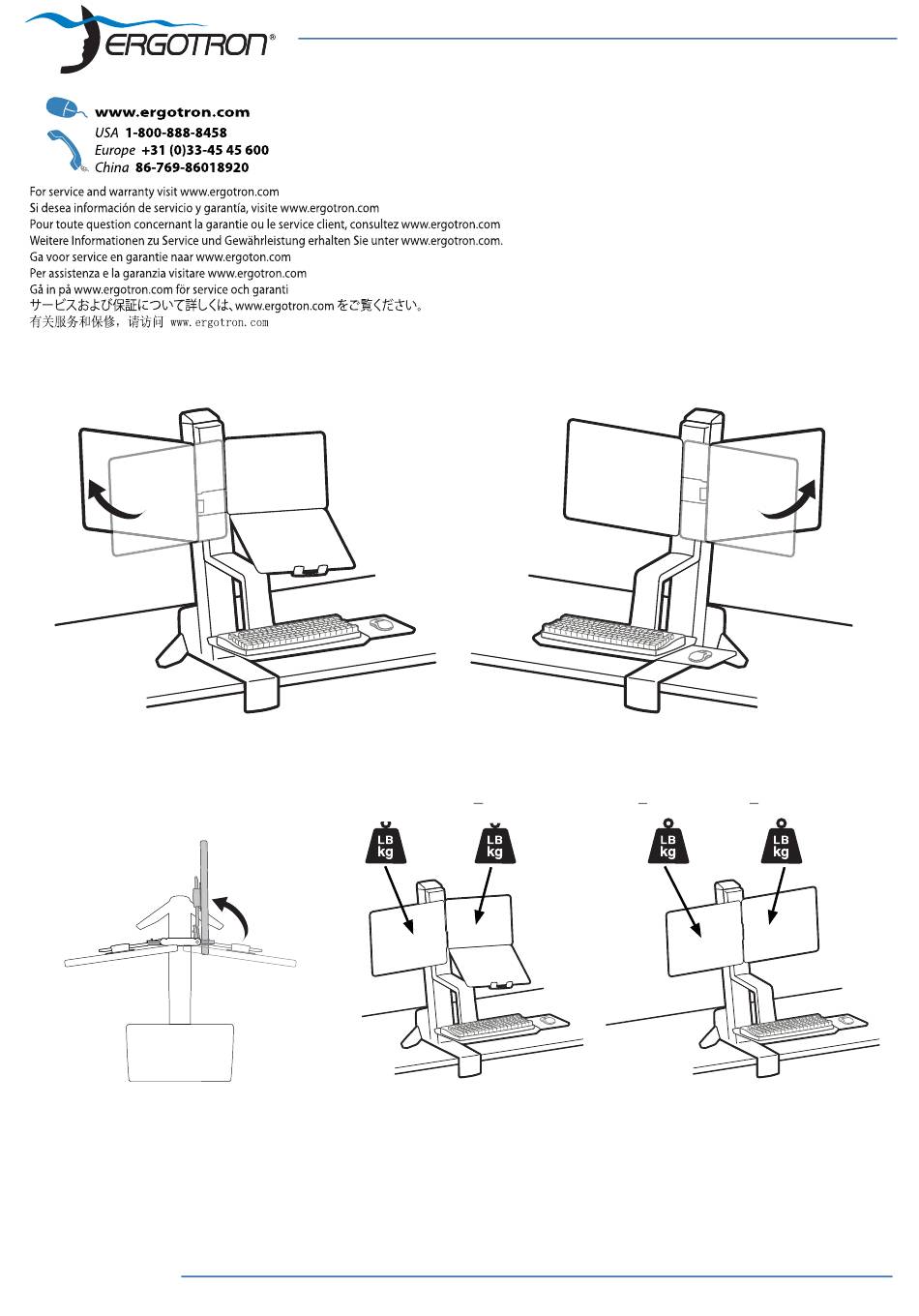

Hinge Bow
User's Guide
Guía del usuario
Manuel de l'utilisateur
Benutzerhandbuch
Gebruikersgids
Guida per l'utente
ユーザーガイド
用户指南
사용자 안내서
< 6-14 lbs
(2.72-6.35 kg)
1 of 5
