Names Of Parts; Top Panel; Rear Panel - Zoom RhythmTrak RT-223 Operation Manual

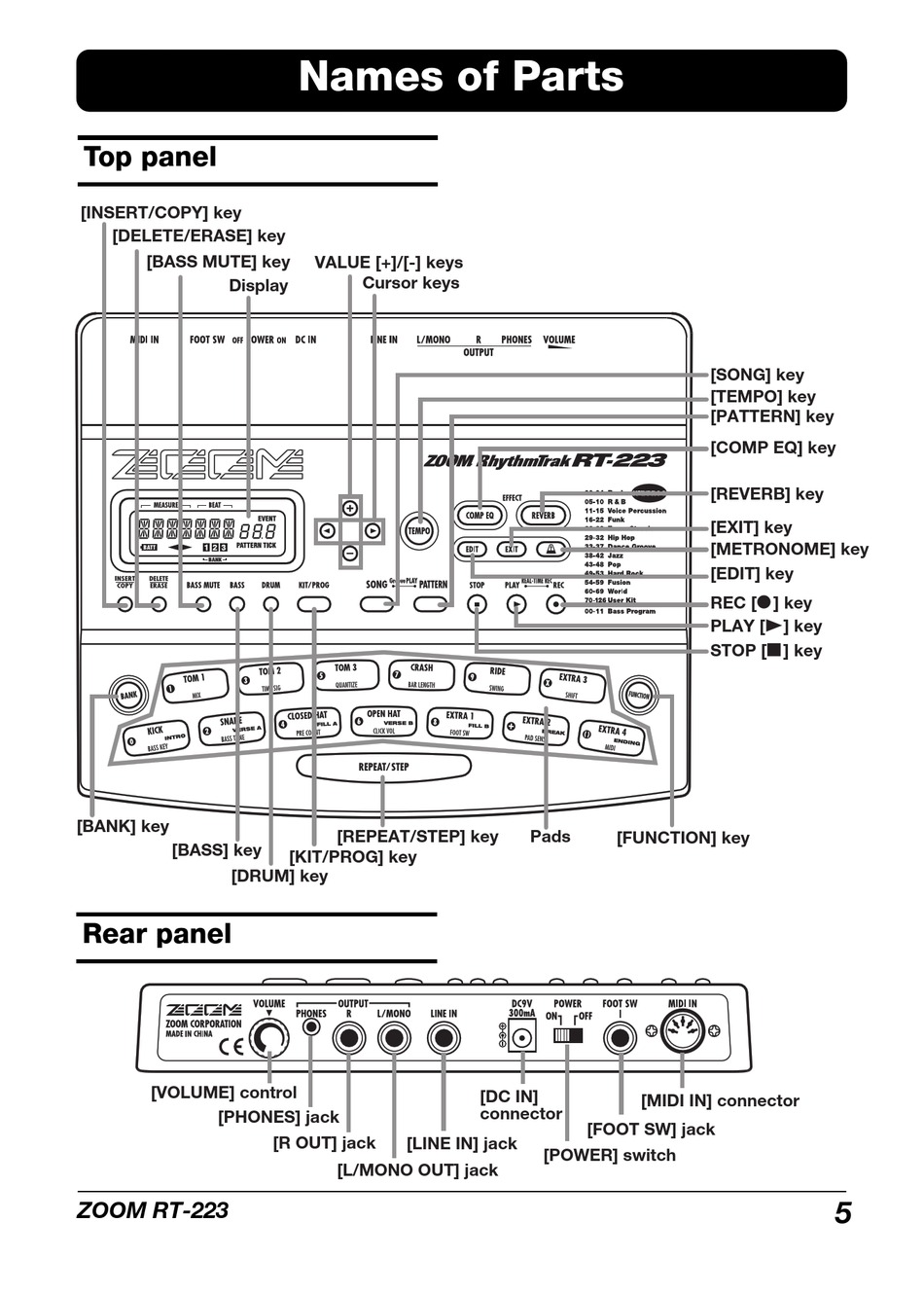

Top panel

[INSERT/COPY] key
[DELETE/ERASE] key
[BASS MUTE] key
Display
[BANK] key
[BASS] key
[DRUM] key

Rear panel

[VOLUME] control
[PHONES] jack
ZOOM RT-223

Names of Parts

VALUE [+]/[-] keys
Cursor keys
[REPEAT/STEP] key
[KIT/PROG] key
[R OUT] jack
[LINE IN] jack
[L/MONO OUT] jack
Pads
[FUNCTION] key
[DC IN]
[MIDI IN] connector
connector
[FOOT SW] jack
[POWER] switch
[SONG] key
[TEMPO] key
[PATTERN] key
[COMP EQ] key
[REVERB] key
[EXIT] key
[METRONOME] key
[EDIT] key
REC [O] key
PLAY [R] key
STOP [P] key
5
