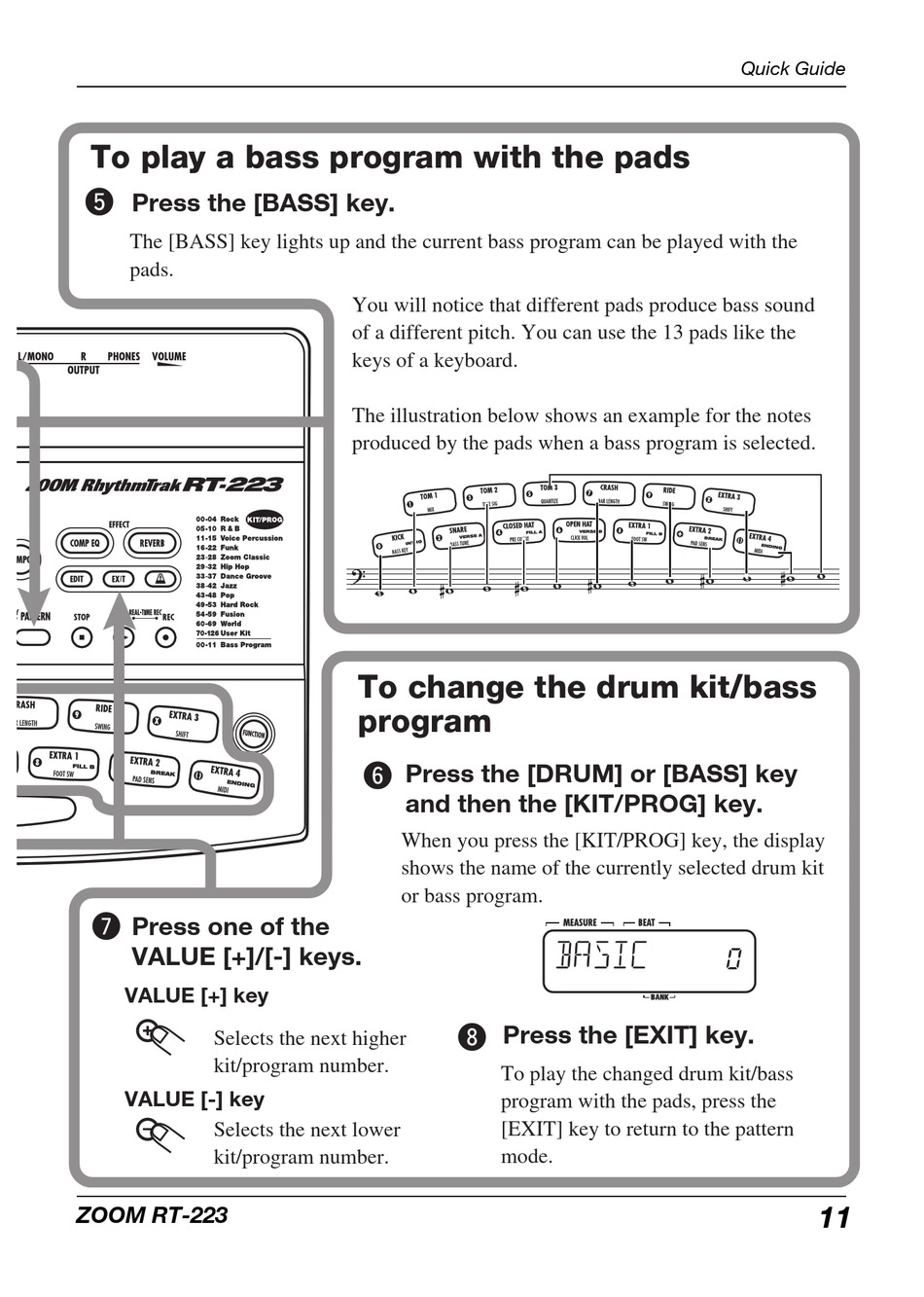

Zoom RhythmTrak RT-223 Operation Manual page 11

To play a bass program with the pads
Press the [BASS] key.
The [BASS] key lights up and the current bass program can be played with the
pads.
Press one of the
VALUE [+]/[-] keys.
VALUE [+] key
Selects the next higher
kit/program number.
VALUE [-] key
Selects the next lower
kit/program number.
ZOOM RT-223
You will notice that different pads produce bass sound
of a different pitch. You can use the 13 pads like the
keys of a keyboard.
The illustration below shows an example for the notes
produced by the pads when a bass program is selected.
To change the drum kit/bass
program
Press the [DRUM] or [BASS] key
and then the [KIT/PROG] key.
When you press the [KIT/PROG] key, the display
shows the name of the currently selected drum kit
or bass program.
Press the [EXIT] key.
To play the changed drum kit/bass
program with the pads, press the
[EXIT] key to return to the pattern
mode.
BASIC
0
Quick Guide
11
