F i n i s h i ng T o u c h e s
Step 1:
Step 2:
Step 3:
Step 4:
Step 5:
R e p e a t t h e a b o v e s t e p s f o r t h e r e m a i n d e r o f c o n n e c t e d r a c k s .
V e r i f y t h e R e t r o f i t
Step 1:
Step 2:
Step 3:
Step 4:
C o n f i g u r e t h e C E M +
Step 1:
Step 2:
Step 3:
Step 4:
2
The Retrofit

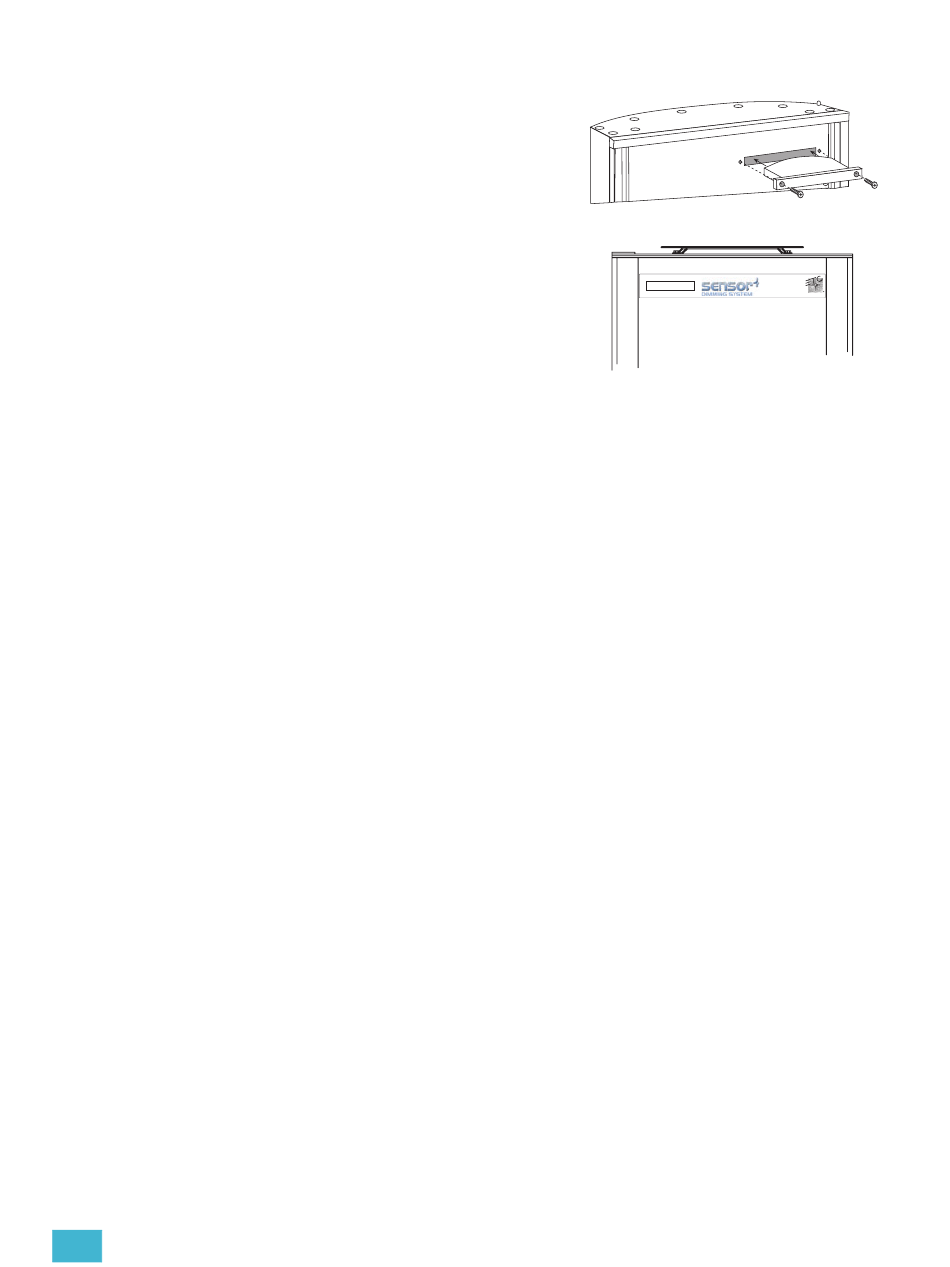

Remove the old Sensor beacon acrylic in the door and discard.
Install the Sensor+ beacon acrylic in
the door.
Remove old Sensor label from the front
of the door and discard.
Clean the door surface to remove any
dirt or old adhesive.
Apply the new Sensor+ label to the
front of the door. Line up the label
around the opening for the acrylic in the
door and be sure the label is straight.
Use a piece of cloth or paper towel to
make sure the label is flat & smooth
and properly adhered to the rack door.
Put the dimmer modules back in the rack in the correct/original order.
Put the CEM+ in the rack.
Power up the rack.
Check that the CEM+ powers up and the rack fan turns on. (The only rack errors
should be a lack of DMX on the ports if the DMX source is not present.)
Configuration of the CEM+ is done via the front face panel interface or via a
graphical HTML interface called Sensor+ Connect that is resident in the CEM+.
Configure the rack to reflect the rack type and dimmer module types installed.
Configure the data types that will be used (DMX and EDMX) including the rack
patch.
For detailed configuration information, please refer to the CEM+ Configuration
Manual.
