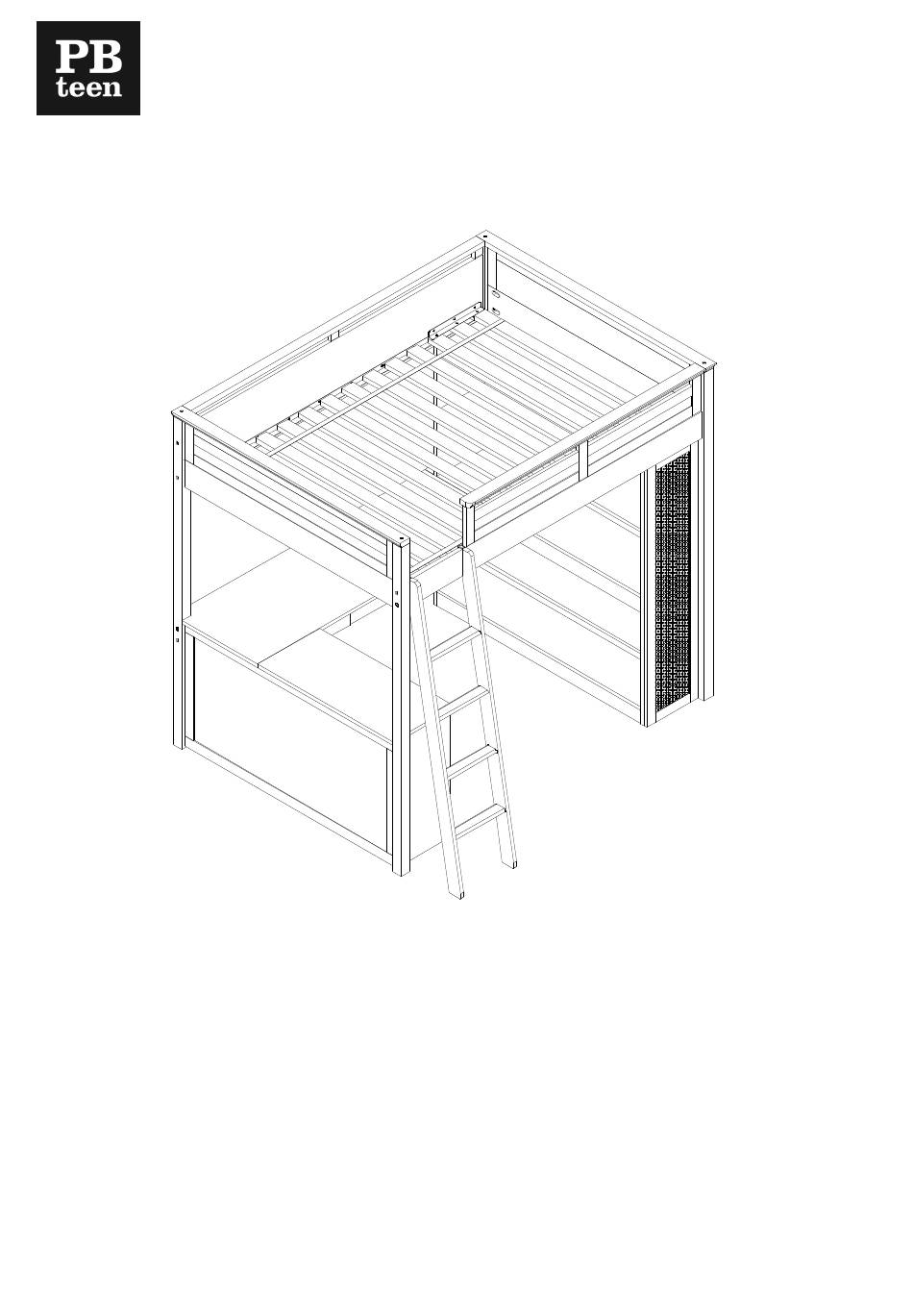

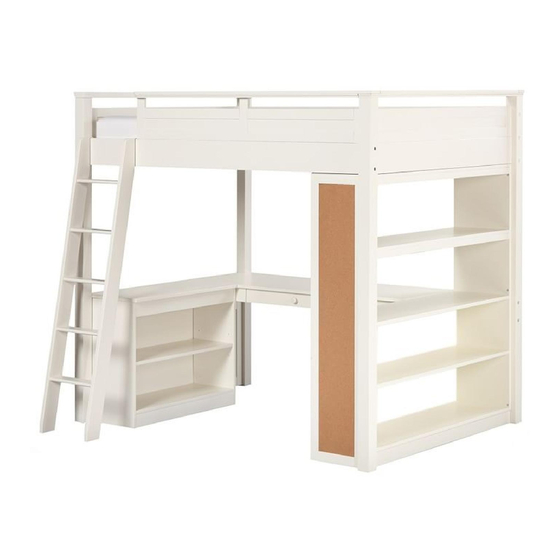

Sleep & Study Loft Bed – Bookcase

Assembly Instructions 1 of 4

PRE-ASSEMBLY:

For your safety and ease, assembly by two adults is recommended.

•

Please read all instructions before beginning assembly. The illustrations provided allow for easier assembly when

•

used in conjunction with the assembly instructions.

Remove all parts and hardware from box and lay out on a carpeted or scratch-free work surface. The shipping

•

box provides and ideal work surface. Do not dispose of any contents until assembly is completed to avoid

accidentally discarding small parts or hardware.

Use the parts and hardware lists to identify and separate each of the pieces included prior to starting assembly.

•

Note: DO not fully tighten the bolts until all parts are in place. Failure to follow these instructions may cause the

•

bolts to misalign during assembly.

Do not use power drill as it may cause cracking.

•

Date – 02-July-2012

www.pbteen.com

Page 1/3

Page 1 Sleep & Study Loft Bed – Bookcase Assembly Instructions 1 of 4 PRE-ASSEMBLY: For your safety and ease, assembly by two adults is recommended. • Please read all instructions before beginning assembly. The illustrations provided allow for easier assembly when •...
Page 2 TOOLS REQUIRED: PARTS LIST D4). Side Panel – 1pc D1). Shelf – 3pcs Philips Screwdriver D5). Cork Panel – 1pc D2). Center Shelf – 1pc (Not included) D6). Support Rail – 1pc D3). Bottom Shelf – 1pc HARDWARE LIST (D9) Short Bolt 1/4“x28mm –20x (D7) Allen Key –...
Page 3 Place Side Panel (D4) on a soft, scratch-free surface with bottom wooden blocks facing up. Attach (3) Shelf (D1), Center Shelf (D2) and Bottom Shelf (D3) to Side Panel (D4) in sequence as shown below. Insert (2) Shorts Bolts (D9) with washers from wooden cleat of each shelf into Side Panel (D4). Note: Wide apron of Center Shelf (D2) and apron of Bottom Shelf (D3) face the edge without cut-out on bottom.
