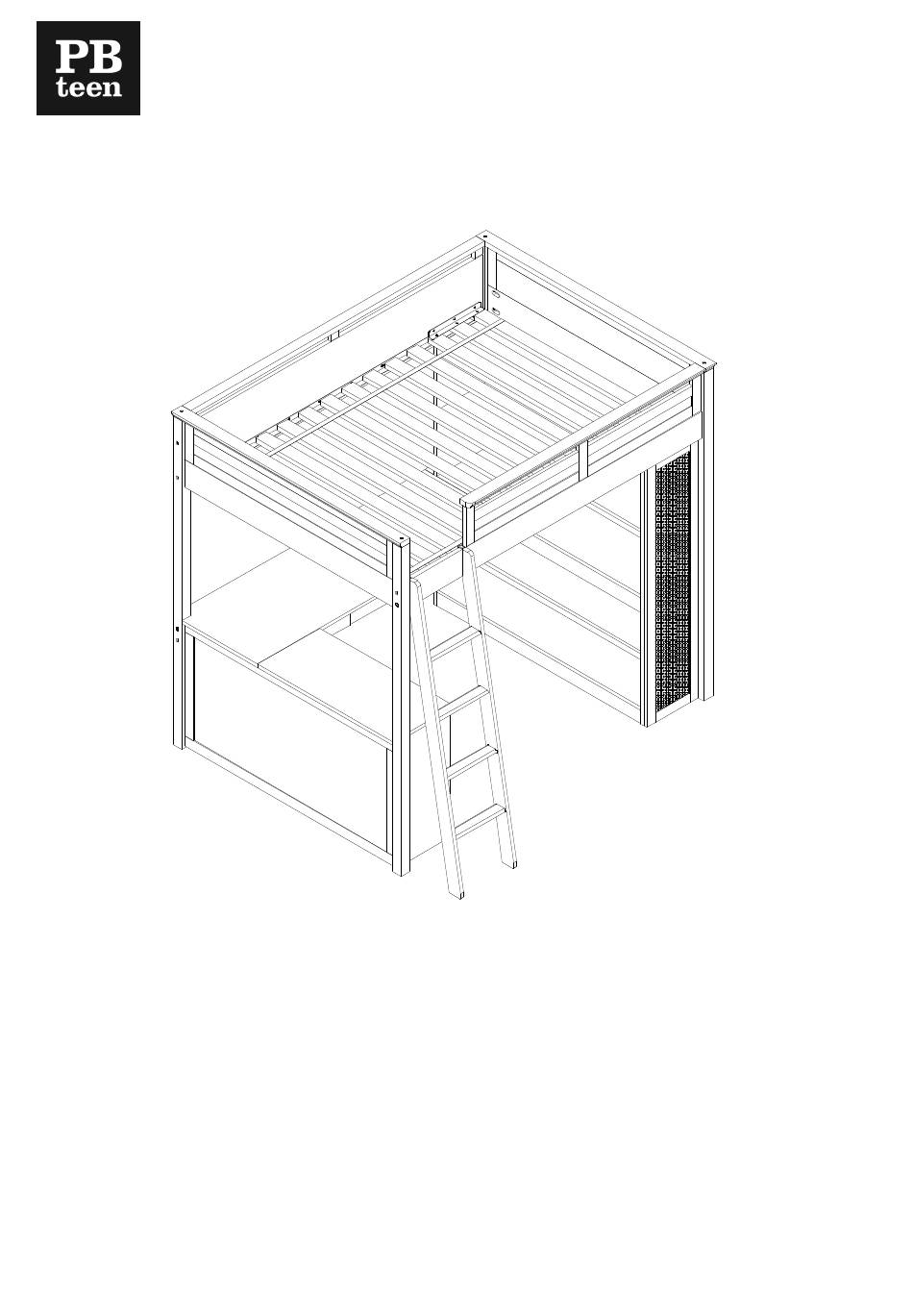

Sleep & Study Loft Bed – CD Shelf

PRE-ASSEMBLY:

For your safety and ease, assembly by two adults is recommended.
•
Please read all instructions before beginning assembly. The illustrations provided allow for easier assembly when
•
used in conjunction with the assembly instructions.
Remove all parts and hardware from box and lay out on a carpeted or scratch-free work surface. The shipping
•
box provides and ideal work surface. Do not dispose of any contents until assembly is completed to avoid
accidentally discarding small parts or hardware.
Use the parts and hardware lists to identify and separate each of the pieces included prior to starting assembly.
•
Note: DO not fully tighten the bolts until all parts are in place. Failure to follow these instructions may cause the
•
bolts to misalign during assembly.
Do not use power drill as it may cause cracking.
•
Date – 02-July-2012
www.pbteen.com
Page 1/3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sleep & Study Loft Bed CD Shelf and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PB TEEN Sleep & Study Loft Bed CD Shelf

Summary of Contents for PB TEEN Sleep & Study Loft Bed CD Shelf

  • Page 1 Sleep & Study Loft Bed – CD Shelf Assembly Instructions 2 of 4 PRE-ASSEMBLY: For your safety and ease, assembly by two adults is recommended. • Please read all instructions before beginning assembly. The illustrations provided allow for easier assembly when •...
  • Page 2 PARTS LIST: C1). Top Panel – 1pc C4). Rear Rail (Narrow) – 1pc C2). Left Side Panel – 1pc C5). Front Rail (Wide) – 1pc C3). Right Side Panel – 1pc C6). Shelf – 1pc C7). Bottom Panel – 1pc TOOLS REQUIRED: Philips Screwdriver (Not included) HARDWARE LIST (C9) Long Bolt 1/4”x45mm –...
  • Page 3 Place the assembled piece in upright position. Attach Top Panel (C1) onto the assembled piece. Insert (3) Short Bolt (C10) with washers from bottom of wooden cleats located on the Front Rail (C5) into Top Panel (C1). Insert (3) Long Bolt (C9) with washers from bottom of Rear Rail (C4) into Top Panel. Check alignments and tighten all connecting bolts.
