EXI-410 Microscope Series
Filter Cube Installation
IMPORTANT
To avoid damage to the filter
cubes, they must be carefully
and properly installed.
Cubes are numbered
according to their position in
the turret – match the number
on the cube to the position
number on the turret.
To install:

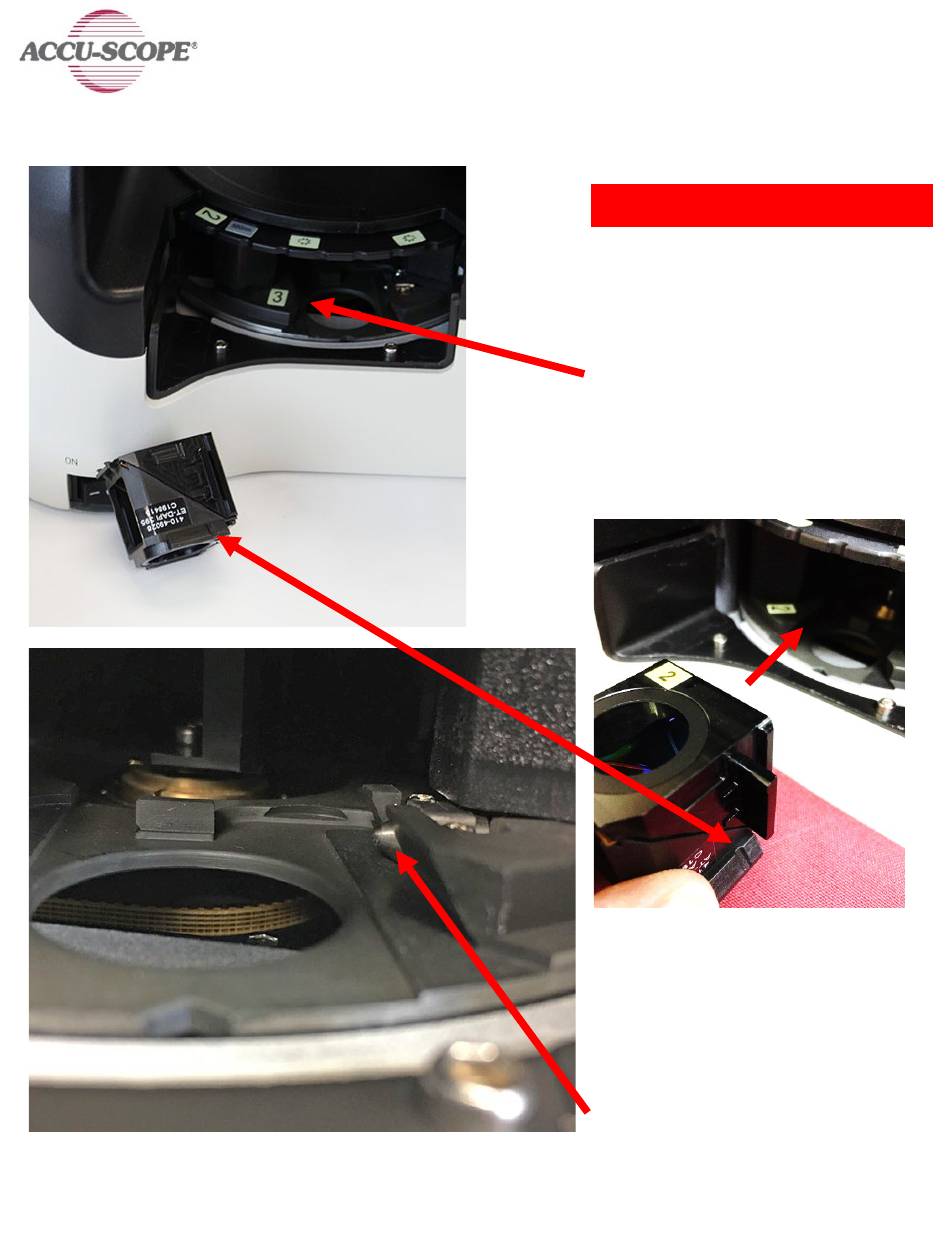

NOTES: Each filter cube has a notch
on the bottom right side of the cube
slider dovetail (see above). Position
the filter cube as shown above to insert
into the turret.
There is a securing pin on the inside of
the turret for each filter position. The
filter cube will be installed properly
when the notch on the cube clicks into
place.
Advertisement
Related Manuals for Accu-Scope EXI-410 Series
Summary of Contents for Accu-Scope EXI-410 Series
- Page 1 EXI-410 Microscope Series Filter Cube Installation IMPORTANT To avoid damage to the filter cubes, they must be carefully and properly installed. Cubes are numbered according to their position in the turret – match the number on the cube to the position number on the turret.
- Page 2 1. To install a filter cube, align the cube notch with the securing pin on the inside right of the turret receptacle and carefully slide the cube in until it clicks into place. 2. Shown here, the filter cube is properly seated and installed.
