Vanguard Instruments ATRT-03 Operating Instructions Manual

Three-phase transformer turns-ratio meter
Hide thumbs Also See for ATRT-03:
Table of Contents

Advertisement

Quick Links

Download this manual

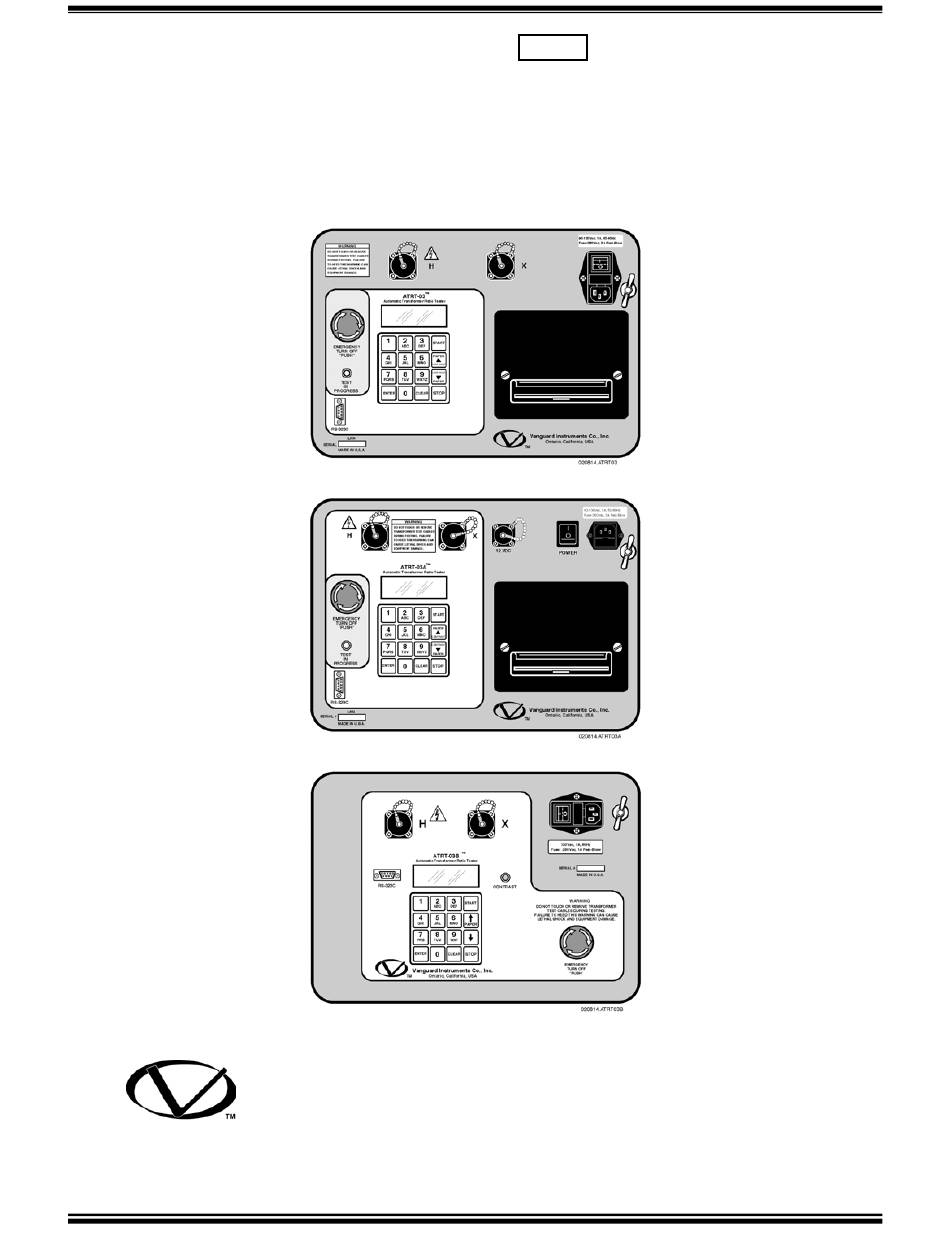

Models ATRT-03, ATRT-03A and ATRT-03B
Three-Phase Transformer Turns-Ratio Meter
TEL: 909-923-9390
FAX: 909-923-9391
OPERATING INSTRUCTIONS
for
Vanguard Instruments Co., Inc.
1710 Grevillea Court
Ontario, California 91761
I-917
August 2002
REV. 02
