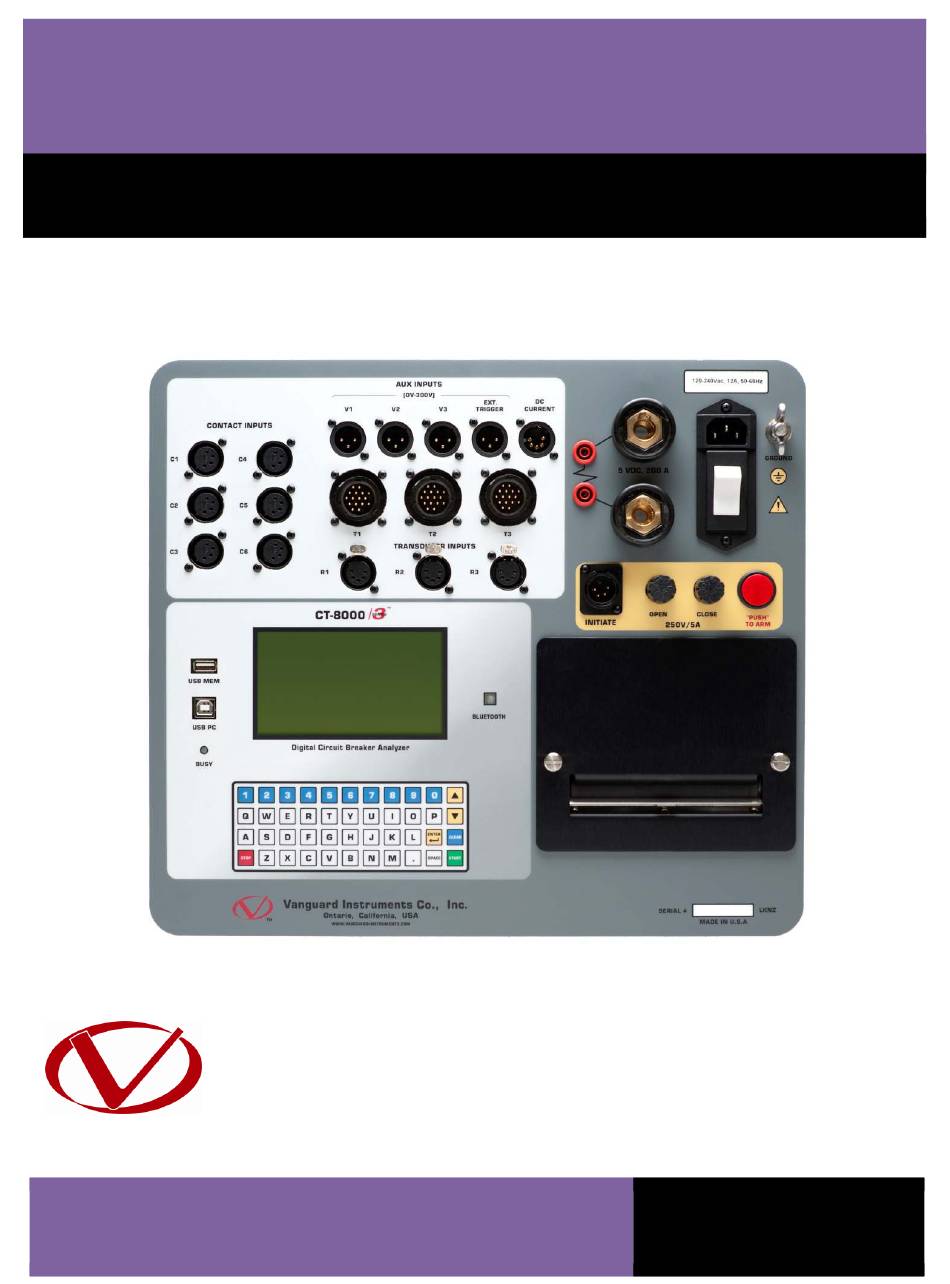

DIGITAL CIRCUIT BREAKER ANALYZER
Vanguard Instruments Company, Inc.
1520 S. Hellman Ave.
Ontario, California 91761, USA
TEL: (909) 923-9390
FAX: (909) 923-9391
CT-8000 S3
USER'S MANUAL
October 2013
Revision 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CT-8000 S3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vanguard Instruments CT-8000 S3

Summary of Contents for Vanguard Instruments CT-8000 S3

  • Page 1 CT-8000 S3 DIGITAL CIRCUIT BREAKER ANALYZER USER’S MANUAL Vanguard Instruments Company, Inc. 1520 S. Hellman Ave. Ontario, California 91761, USA TEL: (909) 923-9390 October 2013 FAX: (909) 923-9391 Revision 1...
  • Page 2 SAFETY WARNINGS AND CAUTIONS Only trained operators shall use the CT-8000 S3. All devices under test shall be off-line and fully isolated. Do not perform test procedures or service unless another person is also present who is capable of rendering aid and resuscitation.

  • Page 3: Table Of Contents

    INTRODUCTION ........................2 General Description and Features ................... 2 Optional Features ......................4 Technical Specifications ....................5 CT-8000 S3 Controls and Indicators ................. 6 PRE-TEST SETUP ........................8 LCD Screen Contrast Control .................... 8 Printer Paper Control ....................... 8 Printer Paper ........................8 OPERATING PROCEDURES ....................
  • Page 4 CT-8000 S3 USER’S MANUAL REV 1 3.4.2. Printing a Directory of Test Records Stored in the CT-8000 S3's Memory .... 86 3.4.3. Printing a Directory of Test Records Stored in a USB Flash Drive ......88 3.4.4. Recalling a Test Record from the Flash EEPROM ........... 89 3.4.5.
  • Page 5 REV 1 CT-8000 S3 USER’S MANUAL LIST OF FIGURES Figure 1. CT-8000 S3 Controls and Indicators ................. 6 Figure 2. Typical 3-Phase Circuit Breaker Connections ..............10 Figure 3. Typical Connections for Series Contact Circuit Breaker ..........11 Figure 4. Typical DC Trip and DC Close Control Circuit Connection ..........12 Figure 5.

  • Page 6: Conventions Used In This Document

    CT-8000 S3 USER’S MANUAL REV 1 CONVENTIONS USED IN THIS DOCUMENT This document uses the following conventions: • A key or switch on the CT-8000 S3 is indicated as [KEY] [SWITCH] • Menu options are referenced as (MENU OPTION). •...

  • Page 7: Introduction

    The CT-8000 S3 can also be used as a 200- ampere micro-ohmmeter to test circuit-breaker contact resistance and bus connections, or can be used for other applications where a low-resistance measurement is required.
  • Page 8 8000 S3 and then stored on the PC for future analysis and report generation. Circuit breaker test plans can also be created on the PC and transferred to the CT-8000 S3. Additionally, test records can be automatically exported in Excel, PDF, and XML formats.

  • Page 9: Optional Features

    USB Flash drive or exported to a PC via the USB port or Bluetooth (optional) with the included Windows-based software. Up to 100 circuit breaker test plans can be stored in the CT-8000 S3's Flash memory. A test plan is comprised of all circuit breaker performance specifications (contact time, stroke, velocity, etc.).

  • Page 10: Technical Specifications

    PC SOFTWARE furnished with full set of test leads CABLES transportation cases (available for the CT-8000 S3 and travel transducers), on-line timing OPTIONS mode, dual ground testing mode, Bluetooth interface designed to meet UL 6101A-1 and CAN/CSA C22.2 No 1010.1-92 standards SAFETY Operating: -10°C to +50°C (+15°F to +122°F);...

  • Page 11: Ct-8000 S3 Controls And Indicators

    CT-8000 S3 USER’S MANUAL CT-8000 S3 Controls and Indicators The CT-8000 S3’s controls and indicators are shown in Figure 1 below. A leader line with an index number points to each control and indicator, which is cross-referenced to a functional description in Table 2.

  • Page 12: Table 2. Functional Descriptions Of Ct-8000 S3 Controls And Indicators

    CT-8000 S3 USER’S MANUAL REV 1 Table 2. Functional Descriptions of CT-8000 S3 Controls and Indicators Item Panel Markings Functional Description Number CONTACT INPUTS Female connectors for the contact channels. The CT-8000-6 S3 is pictured (C1-C6) with 6 channels R1, R2, R3...

  • Page 13: Pre-Test Setup

    [] Printer Paper The CT-8000 S3’s built-in thermal printer uses 4.5-inch wide thermal paper for printing test results. To maintain the highest print quality and to avoid paper jams, the use of thermal paper supplied by Vanguard Instruments Company is highly recommended. Additional paper can be ordered from the following sources: Vanguard Instruments Co, Inc.
  • Page 14 CT-8000 S3 USER’S MANUAL REV 1 Replacing the Thermal Printer Paper The roll of thermal paper is housed inside a dispenser underneath the printer cover. To replace the paper, follow the steps below: • Unscrew the two large printer cover screws and remove the printer cover.

  • Page 15: Operating Procedures

    REV 1 CT-8000 S3 USER’S MANUAL OPERATING PROCEDURES Cable Connections 3.1.1. Contact Cable Connections A typical contact cable connection to a circuit breaker is shown in Figure 2. Red and black clips are connected across the circuit contact phases A, B, and C. A typical circuit breaker with series contacts is shown in Figure 3.

  • Page 16: Figure 3. Typical Connections For Series Contact Circuit Breaker

    CT-8000 S3 USER’S MANUAL REV 1 Figure 3. Typical Connections for Series Contact Circuit Breaker...

  • Page 17: Initiate Cable Connections

    CT-8000 S3 USER’S MANUAL 3.1.2. Initiate Cable Connections The CT-8000 S3 can trip or close breakers through a solid-state device operating on any AC or DC control voltage ranging from 10 to 300 Volts. Both the trip and close circuits are protected by 5 Ampere fuses.

  • Page 18: Figure 5. Typical Dc Trip And Ac Close Control Circuit Connection

    CT-8000 S3 USER’S MANUAL REV 1 Figure 5. Typical DC Trip and AC Close Control Circuit Connection...

  • Page 19: Dynamic Resistance Test Connections

    CT-8000 S3 USER’S MANUAL 3.1.3. Dynamic Resistance Test Connections A typical connection for performing a dynamic resistance test is shown in Figure 6. Do not modify the length of the CT-8000 S3 current cables. WARNING Figure 6. Typical Dynamic Resistance Test Connections...

  • Page 20: Online Timing Connections (With Optional Online Timing Feature)

    The CT-8000 S3 On-Line timing mode requires the use of 3 AC current sensors (provided with the Online Timing Option, Part no. 9103-OT) to monitor the contact time phases A, B, and C.

  • Page 21: Figure 8. Typical Connections For Optional On-Line Timing Mode

    REV 1 CT-8000 S3 USER’S MANUAL Figure 8. Typical Connections for Optional On-line Timing Mode...

  • Page 22: Dual Ground Connections (With Optional Dual Ground Feature)

    3.1.5. Dual Ground Connections (with optional Dual Ground feature) With the optional dual ground testing mode, the CT-8000 S3 can measure a CB contact time with ground being applied to both sides of the bushings. The clamp-on probe is connected to one side of the CB safety ground straps, and an AC signal is coupled to this strap.

  • Page 23: Analog And Digital Voltage Monitoring Connections

    REV 1 CT-8000 S3 USER’S MANUAL 3.1.6. Analog and Digital Voltage Monitoring Connections The analog voltage input “V1” can monitor a breaker’s DC control voltage during an operation. The analog voltage input records the nominal DC voltage at no load and the minimum DC voltage while the Trip or Close coil is energized.

  • Page 24: External Trigger Input Connections

    3.1.7. External Trigger Input Connections The External Trigger Mode can be used to start recording data when the CT-8000 S3 senses a voltage. A typical application for the External Trigger Mode is to time a circuit breaker in a Close operation and to start timing only when the Close coil is energized, thus bypassing the 52X relay delay time.

  • Page 25: Digital Transducer Connection

    REV 1 CT-8000 S3 USER’S MANUAL 3.1.8. Digital Transducer Connection A typical digital transducer connection is shown in Figure 12. Figure 12. Typical Digital Transducer Connection...

  • Page 26: Resistor Type Transducer Connection

    The CT-8000 S3 provides three input channels for resistor type transducers. The transducer resistance input can range from 200 Ohms to 10K Ohms. The CT-8000 S3 supplies a 5 Vdc reference voltage to power the resistor type transducer. The sense voltage is translated into a travel distance based on the transducer calibration parameters.

  • Page 27: Changing Setup Parameters

    REV 1 CT-8000 S3 USER’S MANUAL Changing Setup Parameters 3.2.1. Entering Test Record Header Information You can enter the test record header information before performing tests. The record header includes identifying information such as the company, station, circuit, model number, etc. Once the header information has been entered, it will apply to all subsequent test records.
  • Page 28 CT-8000 S3 USER’S MANUAL REV 1 d. The following screen will be displayed: STATION: ↑↓ to position "ENTER" TO ACCEPT Type the station name using the keypad and then press the key. [ENTER] e. The following screen will be displayed: CIRCUIT: ↑↓...
  • Page 29 REV 1 CT-8000 S3 USER’S MANUAL h. The following screen will be displayed: SERIAL NUMBER: ↑↓ to position "ENTER" TO ACCEPT Type the circuit breaker serial number using the keypad and then press the [ENTER] key. i. The following screen will be displayed: OPERATOR: ↑↓...

  • Page 30: Setting The Clock

    CT-8000 S3 USER’S MANUAL REV 1 3.2.2. Setting the Clock Follow the steps below to set the CT-8000 S3’s internal clock: a. Start from the “START-UP” menu: 1. RUN TEST 10/07/13 2. GET RESULTS 10:15:25 3. SAVE/RESTORE 4. SETUP 5. DIAGNOSTICS Press the key (SETUP).

  • Page 31: Configuring Automatic Or Manual Printing Of Test Results

    CT-8000 S3 USER’S MANUAL 3.2.3. Configuring Automatic or Manual Printing of Test Results The CT-8000 S3 can be configured to print graphs and tabulated results automatically or manually after each test. To configure the printing method: a. Start from the “START-UP” menu: 1.

  • Page 32: Setting The Units Of Measure

    CT-8000 S3 USER’S MANUAL REV 1 3.2.4. Setting the Units of Measure The CT-8000 S3 supports and displays both English and Metric calculations. You can switch between the English and Metric systems using the steps below: a. Start from the “START-UP” menu: 1.

  • Page 33: Setting The Open Timing Analysis Points

    REV 1 CT-8000 S3 USER’S MANUAL 3.2.5. Setting the OPEN Timing Analysis Points Two analysis points are used to calculate the velocity of the circuit breaker in the OPEN operation. To configure the OPEN timing analysis points: a. Start from the “START-UP” menu: 1.
  • Page 34 CT-8000 S3 USER’S MANUAL REV 1 Percentage of stroke is the distance based upon the percentage of the total breaker’s stroke distance. The distance is always measured from the starting point at the fully closed position of the breaker contacts.
  • Page 35 REV 1 CT-8000 S3 USER’S MANUAL e. The following screen will be displayed: OPEN ANALYSIS PT 2 1. PERCENT OF STROKE 2. DIST FROM CLOSE 3. CONTACT +/- TIME 1. PERCENT OF STROKE Press the key (PERCENT OF STROKE) to set the open analysis point #2 as a percentage of the total stroke value.

  • Page 36: Selecting The Contact Cycle Reading Frequency

    • For complex velocity calculations, the user can create a test plan using the included CT-8000 S3 Breaker Analysis PC Software. The test plan can then be downloaded to the CT-8000 S3 and recalled before running timing tests.
  • Page 37 REV 1 CT-8000 S3 USER’S MANUAL The contact time is printed on the tabulated test results printout in both milliseconds and cycles. The cycle readings can be in 50 Hz or 60 Hz. You can select the preferred frequency using the steps below: a.
  • Page 38 60 hz set Press any key to return to the “START-UP” menu. Sample tabulated test results are shown in Figure 14 and Figure 15. If the frequency value is changed, the cycle values are automatically re- calculated by the CT-8000 S3. NOTE...

  • Page 39: Figure 14. Typical 50 Hz Tabulated Test Results

    REV 1 CT-8000 S3 USER’S MANUAL Frequency Set to 50 Hz Cycle readings at 50 Hz Figure 14. Typical 50 Hz Tabulated Test Results Frequency set to 60 Hz Cycle readings at 60 Hz Figure 15. Typical 60 Hz Tabulated Test Results...

  • Page 40: Configuring The Channel Settings

    REV 1 3.2.7. Configuring the Channel Settings The CT-8000 S3 is available with 3 or 6 contact inputs. Since most common timing applications require the use of only 3 contact timing channels and one travel transducer channel, there is no need to print data for more than 3 timing channels and one transducer channel on the graphic and tabulated reports.
  • Page 41 REV 1 CT-8000 S3 USER’S MANUAL Press either the key (3 CONTACTS) or the key (6 CONTACTS) to select the corresponding number of contact channels. d. The following screen will be displayed: 1. transducer 1 2. transducers 1,2 3. transducers 1,2,3...

  • Page 42: Configuring The Contact Filter Settings

    The value can be between 1 and 300. A filter setting of 1 allows the CT-8000 S3 to pick up the first contact transition time after the resistor contact activity is detected. A filter setting of 300 allows the CT-8000 S3 to pick up the last contact transition time after the resistor contact activity is detected.

  • Page 43: Figure 16. Contact Filter Setting Illustrations

    REV 1 CT-8000 S3 USER’S MANUAL Filter Setting @ 1 will select this contact time Filter Setting @ 300 will select this contact time Filter Setting @ 1 will select this contact time Filter Setting @ 300 will select this contact time...

  • Page 44: Configuring The Transducer Encoder Filter Setting

    REV 1 3.2.9. Configuring the Transducer Encoder Filter Setting In a typical 1-second timing record, the CT-8000 S3 records 20,000 data points for each of the contact channels, digital transducer channels, voltage input channels, CT channel, DCR channel, resistor transducer channel, and initiate current channel. In most circuit breaker timing applications, the breaker activities end after 200 milliseconds.
  • Page 45 The following screen will be displayed: ENTER FILTER TIME (010 - 999) Type the filter time (in milliseconds) using the keypad, and then press the [ENTER] to return to the “START-UP” menu. The CT-8000 S3 will not record any transducer encoder data after this time.

  • Page 46: Configuring The Digital Rotary Transducer Settings

    CT-8000 S3 USER’S MANUAL REV 1 3.2.10. Configuring the Digital Rotary Transducer Settings A rotary transducer requires the user to enter the defined linear distance in millimeters or inches per one degree of rotary motion. Follow the steps below to configure the settings for a digital rotary transducer: a.
  • Page 47 REV 1 CT-8000 S3 USER’S MANUAL 1. ENGLISH (In./deg) Press the key to enter the rotary encoder linear distance per degree using English units (inches per degree). The following screen will be displayed: inches/degree 1.442 in/deg Type the desired value using the keypad. You can press the...

  • Page 48: Configuring The Resister Type Transducer Settings

    The CT-8000 S3 provides three resistor type transducer channels. The transducer must be configured before it can be used with the CT-8000 S3. Up to 9 resistor transducer setups can be stored in the CT-8000 S3’s Flash EEPROM. When a resistive transducer is used with the CT-8000 S3, it is shown as transducer #1 on the timing report as shown in Figure 18.
  • Page 49 REV 1 CT-8000 S3 USER’S MANUAL d. The following screen will be displayed: RESISTIVE ENCODER: 1. CREATE NEW SETUP 2. LOAD SETUP 3. PRINT SETUP DIR Press the key (CREATE NEW SETUP). e. The following screen will be displayed: RESISTIVE ENCODER: 1.
  • Page 50 CT-8000 S3 USER’S MANUAL REV 1 h. The following screen will be displayed (the units of measure displayed will depend on your choice in step e): ENTER THE DISTANCE MOVED: "ENTER TO CONTINUE" Enter the distance the transducer was moved using the keypad, and then press the key.
  • Page 51 REV 1 CT-8000 S3 USER’S MANUAL l. The setup will be saved and the following confirmation screen will be displayed: SETUP SAVED! Press any key to return to the “START-UP” menu. Loading a Resistor Type Transducer Setup Follow the steps below to load a resistor type transducer setup: a.
  • Page 52 CT-8000 S3 USER’S MANUAL REV 1 d. The following screen will be displayed: RESISTIVE ENCODER: 1. CREATE NEW SETUP 2. LOAD SETUP 3. PRINT SETUP DIR Press the key (LOAD SETUP). e. The following screen will be displayed: ENTER SETUP NUMBER TO LOAD (1-9) Type the setup number to load using the numeric keypad.
  • Page 53 REV 1 CT-8000 S3 USER’S MANUAL Printing a Resistor Type Transducer Setup Directory You can print a directory of the stored resistor type transducer setups on the built-in thermal printer using the steps below: a. Start from the “START-UP” menu: 1.

  • Page 54: Figure 17. Sample Resistor Type Transducer Setup Directory

    CT-8000 S3 USER’S MANUAL REV 1 Figure 17. Sample Resistor Type Transducer Setup Directory...

  • Page 55: Figure 18. Sample Timing Report Using A Resistor Type Transducer

    REV 1 CT-8000 S3 USER’S MANUAL Resistive Type Transducer Indicator Figure 18. Sample Timing Report Using a Resistor Type Transducer...

  • Page 56: Performing Circuit Breaker Timing Tests

    CT-8000 S3 USER’S MANUAL REV 1 Performing Circuit Breaker Timing Tests The CT-8000 S3 can initiate the breaker operation and perform a timing test on the following operations: • OPEN • CLOSE • OPEN-CLOSE • CLOSE-OPEN • OPEN-CLOSE-OPEN The CT-8000 S3 can start the OPEN-CLOSE operations without a delay or by using a programmable delay between the OPEN and CLOSE commands.

  • Page 57: Timing An Open Operation

    CT-8000 S3 USER’S MANUAL 3.3.1. Timing an OPEN Operation The CT-8000 S3 can time breakers with or without insertion resistors. The insertion resistance can range from 10 to 5,000 Ohms. Any insertion resistance greater than 5,000 Ohms is detected as an open circuit. The timing results will show the main contact time and the insertion resistor contact time.
  • Page 58 CT-8000 S3 USER’S MANUAL REV 1 resistor value: 1. LESS THAN 1000 OHMS 2. 1000 to 2000 OHMS 3. MORE THAN 2000 OHMS Select the resistance value by pressing the corresponding key ( , or Continue to step d. d. The following screen will be displayed: TIMING WINDOW: 1.
  • Page 59 “START-UP” menu once testing is finished. • Please see section 3.3.5 for information about printing test results. • The CT-8000 S3 can be configured to print tabulated and graphics reports NOTES automatically after performing a test. Please see section 3.2.3 for further...

  • Page 60: Timing A Close-Open Operation

    There are three options when timing a CLOSE-OPEN operation: 1. Contact #1 CLOSE The CT-8000 S3 will initiate a CLOSE operation. The open operation is then initiated after contact channel #1 is closed. This option closes simulates the breaker closing on a fault condition in the field.
  • Page 61 REV 1 CT-8000 S3 USER’S MANUAL c. The following screen will be displayed: INSERTION RESISTOR? 1. NO 2. YES Press the key (NO). d. The following screen will be displayed: TIMING WINDOW: 1. WINDOW = 1 2. WINDOW = 10 SEC 3.
  • Page 62 CT-8000 S3 USER’S MANUAL REV 1 g. The following screen will be displayed: C-O SECOND TRIGGER: 1. CONTACT #1 CLOSE 2. SET DELAY 3. NO DELAY Contact #1 CLOSE Press the key if you would like the open operation to be initiated after contact channel #1 is closed.
  • Page 63 REV 1 CT-8000 S3 USER’S MANUAL i. The following screen will be displayed: TEST IN PROGRESS HOLD "ARM" UNTIL TEST COMPLETES. (UP TO 25 SECONDS) Continue to hold down the switch until testing is finished. You will be returned [ARM]...

  • Page 64: Timing An Open-Close-Open Operation

    CT-8000 S3 USER’S MANUAL REV 1 3.3.3. Timing an OPEN-CLOSE-OPEN Operation The OPEN-CLOSE-OPEN operation requires the user to enter two time delays (in milliseconds) between the circuit breaker operations. The first delay is from the first OPEN command to the CLOSE command, and the second delay is from the CLOSE command to the second OPEN command.
  • Page 65 REV 1 CT-8000 S3 USER’S MANUAL e. The following screen will be displayed: TRIGGER MODE: 1. INTERNAL TRIGGER 2. EXTERNAL TRIGGER Press the key (INTERNAL TRIGGER). f. The following screen will be displayed: TIMING MODE: 1. OPEN 2. CLOSE 3. O-C 4.
  • Page 66 CT-8000 S3 USER’S MANUAL REV 1 i. The following screen will be displayed: HOLD "ARM" UNTIL TEsT COMPLETES. "START" TO BEGIN "STOP" TO ABORT Hold down the switch and press the key. [ARM] [START] j. The following screen will be displayed: TEST IN PROGRESS HOLD "ARM"...
  • Page 67 REV 1 CT-8000 S3 USER’S MANUAL 3.3.4. Performing an On-Line Timing Test on Live Contacts The optional "On-line" timing mode (part no. 9103-OT) can be used to capture the breaker's trip or close time, the trip/close coil current “fingerprint”, and the battery supply voltage while the breaker is still in service.
  • Page 68 CT-8000 S3 USER’S MANUAL REV 1 d. The following screen will be displayed: - > NO INITIATE CABLES - > EXTERNAL TRIGGER ONLY! "START" TO BEGIN "STOP" TO ABORT Press the key. [START] e. The following screen will be displayed temporarily: TESTING IN PROGRESS...

  • Page 69: Figure 19. Typical O-C-O Test Results Graph

    REV 1 CT-8000 S3 USER’S MANUAL Figure 19. Typical O-C-O Test Results Graph...

  • Page 70: Figure 20. Typical Tabulated Test Results Printout For An O-C-O Operation

    CT-8000 S3 USER’S MANUAL REV 1 Figure 20. Typical Tabulated Test Results Printout for an O-C-O Operation...

  • Page 71: Figure 21. Typical On-Line Timing Test Graph Printout

    REV 1 CT-8000 S3 USER’S MANUAL Figure 21. Typical On-Line Timing Test Graph Printout...

  • Page 72: Figure 22. Typical On-Line Timing Test Results Printout

    CT-8000 S3 USER’S MANUAL REV 1 Figure 22. Typical On-Line Timing Test Results Printout...

  • Page 73: Performing A Static Resistance Test

    REV 1 CT-8000 S3 USER’S MANUAL 3.3.5. Performing a Static Resistance Test The CT-8000 S3 can also be used as a 200 Ampere micro-ohmmeter. Follow the steps below to perform a static resistance test: a. Start from the "START-UP" Menu: 1.

  • Page 74: Figure 23. Typical Static Resistance Test Report

    CT-8000 S3 USER’S MANUAL REV 1 Once the test is complete, the results will be displayed as shown below: test complete μ RES = 291.6 -ohms CUR = 205.9 A Press any key to return to the "START-UP" menu. You can print the test results using the instructions in section 3.3.7.

  • Page 75: Performing A Dynamic Resistance Test

    REV 1 CT-8000 S3 USER’S MANUAL 3.3.6. Performing a Dynamic Resistance Test The Dynamic Resistance Test can graph the circuit breaker contact resistance during the circuit breaker operation and can help detect circuit contact problems during operation. Follow the steps below to perform a Dynamic Resistance Test: •...
  • Page 76 CT-8000 S3 USER’S MANUAL REV 1 Press the key (YES) if you are timing a circuit breaker with insertion resistors. The following screen will be displayed: resistor value: 1. LESS THAN 1000 OHMS 2. 1000 to 2000 OHMS 3. MORE THAN 2000 OHMS...

  • Page 77: Figure 24. Dynamic Resistance Graph (0 - 400 Micro-Ohm Linear Scale)

    REV 1 CT-8000 S3 USER’S MANUAL g. The following screen will be displayed: TEST IN PROGRESS HOLD "ARM" UNTIL TEST COMPLETES. (UP TO 25 SECONDS) Continue to hold down the switch until testing is finished. You will be returned [ARM] to the “START-UP”...

  • Page 78: Figure 25. Dynamic Resistance Graph (0 - 2000 Micro-Ohm Linear Scale)

    CT-8000 S3 USER’S MANUAL REV 1 Figure 25. Dynamic Resistance Graph (0 - 2000 micro-ohm linear scale) Figure 26. Dynamic Resistance Graph in Semi-Log Scale...

  • Page 79: Printing Or Viewing Timing Results

    REV 1 CT-8000 S3 USER’S MANUAL 3.3.7. Printing or Viewing Timing Results Follow the steps below to print or view the timing results after performing a circuit breaker timing test: a. After performing a timing test you will be returned to the “START-UP” menu: 1.
  • Page 80 CT-8000 S3 USER’S MANUAL REV 1 Press the key (DISPLAY RESULTS) to display the test results on the unit’s LCD screen. The following screen will be displayed: UP / DWN ARROWS TO SCROLL RESULTS... "STOP" TO EXIT... Press the keys to scroll through the test results. Press the []...
  • Page 81 REV 1 CT-8000 S3 USER’S MANUAL Enter the end point for the expansion by typing the first digit of the 100 millisecond increment. For example, to select 900ms, press the key. The screen will be updated as shown: EXPANSION FROM: 900MS "ENTER"...

  • Page 82: Figure 27. Typical Tabulated Test Results Printout For A Close Operation

    CT-8000 S3 USER’S MANUAL REV 1 If you are printing the results of a dynamic resistance test and you had selected option (PLOT FULL CHART), (PLOT EXPANSION), or (PLOT 0 - 200 MS), the following screen will be displayed: NOTE DYNAMIC RES PLOT μ...

  • Page 83: Table 3. Descriptions Of Tabulated Test Results Elements

    REV 1 CT-8000 S3 USER’S MANUAL Table 3. Descriptions of Tabulated Test Results Elements Item Description Number Test record number and the date and time the test was performed. Test record header information (Company, Station, Circuit, etc.). Type of test performed (OPEN, CLOSE, O-C, C-O, or O-C-O).

  • Page 84: Figure 28. Typical Test Results Graph (Cb Close Test)

    CT-8000 S3 USER’S MANUAL REV 1 Figure 28. Typical Test Results Graph (CB CLOSE Test)

  • Page 85: Figure 29. Expansion Graph From 0Ms To 200Ms (Cb Close Test)

    REV 1 CT-8000 S3 USER’S MANUAL Figure 29. Expansion Graph from 0ms to 200ms (CB CLOSE Test)

  • Page 86: Figure 30. Typical O-C-O Test Results Graph

    CT-8000 S3 USER’S MANUAL REV 1 Figure 30. Typical O-C-O Test Results Graph...

  • Page 87: Figure 31. Typical Tabulated Test Results Printout For An O-C-O Operation

    REV 1 CT-8000 S3 USER’S MANUAL Figure 31. Typical Tabulated Test Results Printout for an O-C-O Operation...

  • Page 88: Figure 32. Graphical Interpretation Of An Open Timing Shot

    CT-8000 S3 USER’S MANUAL REV 1 Figure 32. Graphical Interpretation of an OPEN Timing Shot Figure 33. Graphical Interpretation of a CLOSE Timing Shot...

  • Page 89: Figure 34. Graphical Interpretations Of An Open-Close And Close-Open Timing Shot

    REV 1 CT-8000 S3 USER’S MANUAL Figure 34. Graphical Interpretations of an OPEN-CLOSE and CLOSE-OPEN Timing Shot...

  • Page 90: Working With Test Records

    REV 1 Working with Test Records 3.4.1. Saving a Timing Record in Flash EEPROM After performing a test, you can store the results in the CT-8000 S3’s Flash EEPROM. To save a test record: a. Start from the “START-UP” menu: 1.

  • Page 91: Printing A Directory Of Test Records Stored In The Ct-8000 S3'S Memory

    CT-8000 S3 USER’S MANUAL 3.4.2. Printing a Directory of Test Records Stored in the CT-8000 S3's Memory You can print a directory of all the test records stored in the CT-8000 S3’s Flash EEPROM by using the steps below: a. Start from the “START-UP” menu: 1.

  • Page 92: Figure 35. Sample Test Record Directory Printout

    CT-8000 S3 USER’S MANUAL REV 1 Figure 35. Sample Test Record Directory Printout...

  • Page 93: Printing A Directory Of Test Records Stored In A Usb Flash Drive

    REV 1 CT-8000 S3 USER’S MANUAL 3.4.3. Printing a Directory of Test Records Stored in a USB Flash Drive To print a directory of all test records stored in a USB Flash drive: a. Make sure the USB Flash drive is inserted in the unit's USB Flash drive port ("USB MEM"...

  • Page 94: Recalling A Test Record From The Flash Eeprom

    CT-8000 S3 USER’S MANUAL REV 1 3.4.4. Recalling a Test Record from the Flash EEPROM Follow the steps below to recall a test record from the CT-8000 S3’s Flash EEPROM: a. Start from the “START-UP” menu: 1. RUN TEST 10/09/13 2.
  • Page 95 REV 1 CT-8000 S3 USER’S MANUAL e. The following screen will be displayed: RESTORE COMPLETE PRINT RECORD? 1. YES 2. NO Press the key (YES) if you would like to print the restored test record. The following screen will be displayed: 1.

  • Page 96: Restoring A Test Record From A Usb Flash Drive

    REV 1 3.4.5. Restoring a Test Record from a USB Flash Drive You can restore a test record from a USB Flash drive to the CT-8000 S3's working memory using the steps below: a. Make sure the USB Flash drive containing the test record(s) is inserted in the CT-8000 S3's USB Flash drive port ("USB MEM"...
  • Page 97 REV 1 CT-8000 S3 USER’S MANUAL Type the record number that you would like to restore and press the key. If [ENTER] you do not know the record number, you can print a test record directory using the instructions in section 3.4.3.

  • Page 98: Copying Test Records To A Usb Flash Drive

    REV 1 3.4.6. Copying Test Records to a USB Flash Drive You can easily copy test records stored in the CT-8000 S3's Flash EEPROM to a connected USB Flash drive using the steps below: a. Make sure a USB Flash drive is inserted in the unit's Flash drive port ("USB MEM" port).
  • Page 99 REV 1 CT-8000 S3 USER’S MANUAL Type the record number that you would like to copy to the USB Flash drive and then press the key. If you do not know the record number, you can first print a [ENTER] test record directory using the instructions in section 3.4.2.

  • Page 100: Deleting Test Records From The Flash Eeprom

    CT-8000 S3 USER’S MANUAL REV 1 3.4.7. Deleting Test Records from the Flash EEPROM You can delete one or all test records stored in the CT-8000 S3’s Flash EEPROM. To delete test records: a. Start from the “START-UP” menu: 1. RUN TEST 10/09/13 2.
  • Page 101 ERASE COMPLETE Press any key to return to the “START-UP” menu. ERASE ALL SHOTS! Press the key to erase all test records from the CT-8000 S3’s Flash EEPROM. The following screen will be displayed: ALL SHOTS WILL BE ERASED! "ENTER" TO CONTINUE Press the key to erase all test records.
  • Page 102 CT-8000 S3 USER’S MANUAL REV 1 The following screen will be displayed when all the test records have been completely erased: ERASE COMPLETE ANY KEY TO CONTINUE Press any key to return to the “START-UP” menu.

  • Page 103: Deleting Test Records From A Usb Flash Drive

    REV 1 CT-8000 S3 USER’S MANUAL 3.4.8. Deleting Test Records from a USB Flash Drive To erase one or all test records stored on a USB Flash drive: a. Make sure a Flash drive is inserted in the unit's Flash drive port ("USB MEM" port). Then start from the "START-UP"...
  • Page 104 CT-8000 S3 USER’S MANUAL REV 1 ERASE THUMB DRIVE REC_ Type the record number to be deleted and press the key. If you do not [ENTER] know the record number, you can first print a test record directory using the instructions in section 3.4.3.
  • Page 105 REV 1 CT-8000 S3 USER’S MANUAL ALL THUMB DRIVE RECORDS ERASED! Press any key to return to the "START-UP" menu.

  • Page 106: Working With Test Plans

    The CT-8000 S3 comes with the Vanguard Circuit Breaker Analysis S2 (VCBA S2) PC Software that can be used to create circuit breaker test plans. The test plans can then be transferred to the CT-8000 S3. The CT-8000 S3 can store up to 99 circuit breaker test plans in its Flash EEPROM.
  • Page 107 3. PRINT PLAN DIR 4. ERASE TEST PLAN 5. SAVE TEST PLAN Press the key (LOAD TEST PLAN). e. The first test plan stored in the CT-8000 S3’s Flash EEPROM will be listed: TEST PLAN # 01 BZO-145-20-7 SIEMENS DEMO TEST PLAN 1 You can scroll through the list of test plans by pressing the keys.

  • Page 108: Figure 36. Typical Test Results Printout With Pass/Fail Indicators

    CT-8000 S3 USER’S MANUAL REV 1 NOTE NO TEST PLANS FOUND "ENTER" TO CONINUE Press the key to return to the “START-UP” menu. [ENTER] Pass/Fail Indicators Figure 36. Typical Test Results Printout with Pass/Fail Indicators...

  • Page 109: Printing A Directory Of Test Plans Stored In The Ct-8000 S3'S Memory

    CT-8000 S3 USER’S MANUAL 3.5.2. Printing a Directory of Test Plans Stored in the CT-8000 S3’s Memory You can print a directory of all the test plans stored in the CT-8000 S3’s Flash EEPROM using the steps below: a. Start from the “START-UP” menu: 1.

  • Page 110: Figure 37. Typical Test Plan Directory Printout

    CT-8000 S3 USER’S MANUAL REV 1 Figure 37. Typical Test Plan Directory Printout...

  • Page 111: Printing A Directory Of Test Plans Stored In A Usb Flash Drive

    REV 1 CT-8000 S3 USER’S MANUAL 3.5.3. Printing a Directory of Test Plans Stored in a USB Flash Drive Follow the steps below to print a directory of all test plans stored in a USB Flash drive: a. Make sure a USB Flash drive is inserted in the unit's USB Flash drive port ("USB MEM"...
  • Page 112 CT-8000 S3 USER’S MANUAL REV 1 e. The following screen will be displayed: 1. INTERNAL DIRECTORY 2. THUMB DRIVE DIR Press the key (THUMB DRIVE DIR). The directory of test plans stored on the USB Flash drive will be printed on the built-in thermal printer and you will be returned to the...

  • Page 113: Printing A Breaker Test Plan Stored In The Ct-8000'S Memory

    CT-8000 S3 USER’S MANUAL 3.5.4. Printing a Breaker Test Plan Stored in the CT-8000's Memory Follow the steps below to print a breaker test plan stored in the CT-8000 S3’s Flash EEPROM: a. Start from the “START-UP” menu: 1. RUN TEST 10/09/13 2.
  • Page 114 CT-8000 S3 USER’S MANUAL REV 1 e. The first test plan stored in the CT-8000 S3’s Flash EEPROM will be listed: TEST PLAN # 01 BZO-145-20-7 SIEMENS DEMO TEST PLAN 1 You can scroll through the list of test plans by pressing the keys.

  • Page 115: Printing A Breaker Test Plan Stored In A Usb Flash Drive

    REV 1 CT-8000 S3 USER’S MANUAL 3.5.5. Printing a Breaker Test Plan Stored in a USB Flash Drive Follow the steps below to print a breaker test plan stored in a USB Flash drive: a. Make sure a USB Flash drive is connected to the unit's USB Flash drive port ("USB MEM"...
  • Page 116 CT-8000 S3 USER’S MANUAL REV 1 e. The following screen will be displayed: 1. PRINT INTERNAL TP 2. PRINT FLASH DRV TP Press the key (PRINT FLASH DRV TP). f. The following screen will be displayed: PRINT THUMB DRIVE TP...

  • Page 117: Copying A Test Plan To A Usb Flash Drive

    REV 1 CT-8000 S3 USER’S MANUAL 3.5.6. Copying a Test Plan to a USB Flash drive Follow the steps below to copy a test plan from the unit's internal memory to a connected USB Flash drive: a. Make sure a USB Flash drive is inserted in the unit's USB Flash drive port ("USB MEM"...
  • Page 118 CT-8000 S3 USER’S MANUAL REV 1 e. The following screen will be displayed: ENTER TP NUMBER TO COPY TO FLASH DRV TP NUMBER: Type the test plan number to copy using the keypad and then press the [ENTER] key. If you do not know the test plan number, you can first print a test plan directory using the instructions in section 3.5.2.

  • Page 119: Figure 38. Typical Breaker Test Plan Printout

    REV 1 CT-8000 S3 USER’S MANUAL Velocity Calculation Formula Figure 38. Typical Breaker Test Plan Printout...

  • Page 120: Figure 39. Siemens Sps2 121 Close Timing Illustration

    CT-8000 S3 USER’S MANUAL REV 1 CLOSE Time Parameters Velocity Calculation Formula Figure 39. Siemens SPS2 121 CLOSE Timing Illustration...

  • Page 121: Figure 40. Siemens Sps2 121 Open Timing Illustration

    REV 1 CT-8000 S3 USER’S MANUAL OPEN Time Parameters Figure 40. Siemens SPS2 121 OPEN Timing Illustration...

  • Page 122: Diagnostics, Verification, And Troubleshooting

    DIAGNOSTICS, VERIFICATION, AND TROUBLESHOOTING Performing a Slow-Close Test The CT-8000 S3 offers a unique “Slow-Close” test feature. This test measures the distance a breaker’s contact travels from the fully opened position to the point of contact or “touch” position, and the contact wipe or penetration distance. The test requires the operator to manually jack the breaker’s contact from the fully open position to the fully closed position.

  • Page 123: Figure 41. Typical Slow-Close Test Results Printout

    REV 1 CT-8000 S3 USER’S MANUAL Press the key to begin the test. [ENTER] d. The following screen will be displayed: CONTACT 1: OPEN CONTACT 2: OPEN CONTACT 3: OPEN LIFT TO CLS BRKR NOW Manually start closing the breaker and then press the "ENTER" key. The test results will be printed and you be returned to the “START-UP”...

  • Page 124: Performing A Transducer Self-Test

    CT-8000 S3 USER’S MANUAL REV 1 Performing a Transducer Self-Test You can check the transducer electronics by connecting the transducer to the CT-8000 S3 and running a transducer self-test using the instructions below: a. Start from the “START-UP” menu: 1. RUN TEST 10/10/13 2.
  • Page 125 REV 1 CT-8000 S3 USER’S MANUAL d. The screen will be updated with the new transducer position information: TRANSDUCER TEST: T1= 5.00 in / 360.0° T2= 0.00 in / 000.0° T3= 0.00 in / 000.0° R1= 0.00 IN R2= 0.00 IN R3= 0.00 IN...

  • Page 126: Testing The Cable Hookups

    CT-8000 S3 USER’S MANUAL REV 1 Testing the Cable Hookups You can check the CT-8000 S3 contact cable connections to the circuit breaker using the steps below: a. Start from the “START-UP” menu: 1. RUN TEST 10/10/13 2. GET RESULTS 10:10:10 3.
  • Page 127 REV 1 CT-8000 S3 USER’S MANUAL Press the key to retest the cable connections, or press the key to [START] [STOP] end the test and return to the “START-UP” menu.

  • Page 128: Printing Raw Test Record Data

    REV 1 Printing Raw Test Record Data You can print the raw hexadecimal timing data collected by the CT-8000 S3 using the “PRINT DATA” command. This feature is used mainly for factory diagnostic testing. The CT-8000 S3 collects 20,000 data points in the one-second timing window. As a result, each data sample is 0.05 ms apart.

  • Page 129: Figure 42. Partial Data Points Printout

    REV 1 CT-8000 S3 USER’S MANUAL d. The following screen will be displayed: 1. EVERY POINT 2. EVERY 5 POINTS Press the key to print every data point. The data points will be printed and you will be returned to the “START-UP” menu.

  • Page 130: Troubleshooting Guide

    A dual operation OPEN-CLOSE or CLOSE-OPEN will result in a 0ms reading. • The CT-8000 S3 contact channels may be damaged or the cables may be bad. Try the “Check Hook-UP” test (see section 4.3). No contact time (0 ms) in CLOSE- •...
  • Page 131 REV 1 CT-8000 S3 USER’S MANUAL When performing an OPEN-CLOSE • Delay between OPEN to CLOSE is probably too short. Increase the test, the breaker opens but will not delay time. close. No data or erratic reading on travel • Bad transducer. Perform a transducer diagnostic test using the transducer.

  • Page 132: Appendices

    CT-8000 S3 USER’S MANUAL REV 1 APPENDICES APPENDIX A – ITE Model 14.4K Circuit Breaker Timing Charts and Reports AP1 = 1.5” Bounce-Back AP2 = 3.5” ITE Model 14.4K Circuit Breaker Timing Charts...
  • Page 133 REV 1 CT-8000 S3 USER’S MANUAL ITE Model 14.4K Circuit Breaker CLOSE-OPEN Timing Chart...
  • Page 134 CT-8000 S3 USER’S MANUAL REV 1 ITE Model 14.4K Circuit Breaker CLOSE-OPEN Tabulated Report...
  • Page 135 REV 1 CT-8000 S3 USER’S MANUAL ITE Model 14.4K Circuit Breaker OPEN-CLOSE Timing Chart...
  • Page 136 CT-8000 S3 USER’S MANUAL REV 1 ITE Model 14.4K Circuit Breaker OPEN-CLOSE Tabulated Report...

  • Page 137: Appendix B - Siemens Tcp Breaker Velocity Calculation

    REV 1 CT-8000 S3 USER’S MANUAL APPENDIX B – Siemens TCP Breaker Velocity Calculation...

  • Page 138: Appendix C - Siemens Sps2 Breaker Velocity Calculation

    CT-8000 S3 USER’S MANUAL REV 1 APPENDIX C – Siemens SPS2 Breaker Velocity Calculation...

  • Page 139: Appendix D - Ct-8000 S3 Test Plan For Siemens Sps2

    REV 1 CT-8000 S3 USER’S MANUAL APPENDIX D – CT-8000 S3 Test Plan for Siemens SPS2...

  • Page 140: Appendix E - Ct-8000 S3 Transducer Illustrations

    CT-8000 S3 USER’S MANUAL REV 1 APPENDIX E – CT-8000 S3 Transducer Illustrations Linear Transducer on an OCB Rotary Transducer on Alsthom HE 1014 Circuit Breaker...
  • Page 141 REV 1 CT-8000 S3 USER’S MANUAL Rotary Transducer on ABB HMB Mechanism Rotary Transducer on Federal Pacific Circuit Breaker...
  • Page 142 CT-8000 S3 USER’S MANUAL REV 1 Resistor Transducer on Vacuum Circuit Breaker...

  • Page 143: Appendix F - Ct-8000 S3 Accessories

    REV 1 CT-8000 S3 USER’S MANUAL APPENDIX F – CT-8000 S3 Accessories ON-LINE DUAL GROUND TIMING PROBES PROBES (3 probes) part no 9103-OT part no 9103-DG LINEAR ROTARY TRANSDUCERS TRANSDUCER WITH 10" part no 9087-UC MAGNETIC 25" part no 9088-UC...
  • Page 144 CT-8000 S3 USER’S MANUAL REV 1 DOBLE TRANSDUCER ADAPTER Part no 9084-UC The Doble Transducer Adapter can be used to interface any Doble travel transducer to a Vanguard circuit breaker analyzer. Connected to Doble rotary transducer...
  • Page 145 1520 S. Hellman Ave • Ontario, CA 91761 • USA Phone: 909-923-9390 • Fax: 909-923-9391 www.vanguard-instruments.com Copyright © 2013 by Vanguard Instruments Company, Inc. CT-8000 S3 User’s Manual • Revision 1.0 • October 10, 2013 • TA...
