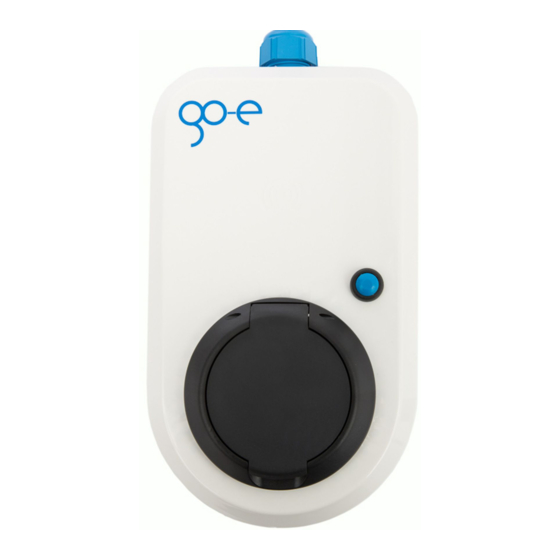

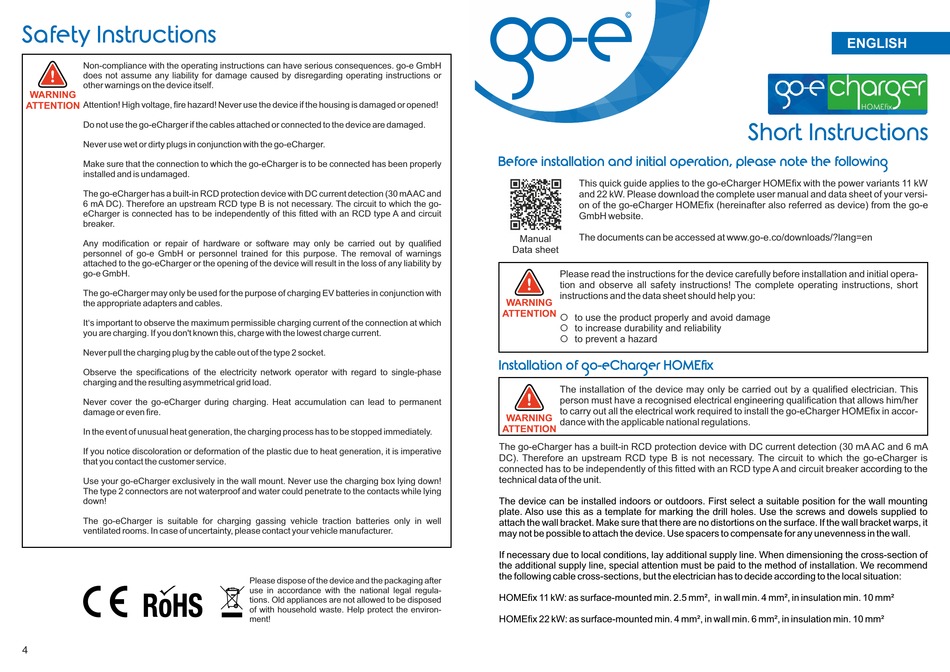

go-e HOMEfix Short Instructions

Safety Instructions
Non-compliance with the operating instructions can have serious consequences. go-e GmbH
does not assume any liability for damage caused by disregarding operating instructions or
other warnings on the device itself.
WARNING
ATTENTION Attention! High voltage, fire hazard! Never use the device if the housing is damaged or opened!
Do not use the go-eCharger if the cables attached or connected to the device are damaged.
Never use wet or dirty plugs in conjunction with the go-eCharger.
Make sure that the connection to which the go-eCharger is to be connected has been properly
installed and is undamaged.
The go-eCharger has a built-in RCD protection device with DC current detection (30 mA AC and
6 mA DC). Therefore an upstream RCD type B is not necessary. The circuit to which the go-
eCharger is connected has to be independently of this fitted with an RCD type A and circuit
breaker.
Any modification or repair of hardware or software may only be carried out by qualified
personnel of go-e GmbH or personnel trained for this purpose. The removal of warnings
attached to the go-eCharger or the opening of the device will result in the loss of any liability by
go-e GmbH.
The go-eCharger may only be used for the purpose of charging EV batteries in conjunction with
the appropriate adapters and cables.
It's important to observe the maximum permissible charging current of the connection at which
you are charging. If you don't known this, charge with the lowest charge current.
Never pull the charging plug by the cable out of the type 2 socket.
Observe the specifications of the electricity network operator with regard to single-phase
charging and the resulting asymmetrical grid load.
Never cover the go-eCharger during charging. Heat accumulation can lead to permanent
damage or even fire.
In the event of unusual heat generation, the charging process has to be stopped immediately.
If you notice discoloration or deformation of the plastic due to heat generation, it is imperative
that you contact the customer service.
Use your go-eCharger exclusively in the wall mount. Never use the charging box lying down!
The type 2 connectors are not waterproof and water could penetrate to the contacts while lying
down!
The go-eCharger is suitable for charging gassing vehicle traction batteries only in well
ventilated rooms. In case of uncertainty, please contact your vehicle manufacturer.
4
Please dispose of the device and the packaging after
use in accordance with the national legal regula-
tions. Old appliances are not allowed to be disposed
of with household waste. Help protect the environ-
ment!
Before installation and initial operation, please note the following
This quick guide applies to the go-eCharger HOMEfix with the power variants 11 kW
and 22 kW. Please download the complete user manual and data sheet of your versi-
on of the go-eCharger HOMEfix (hereinafter also referred as device) from the go-e
GmbH website.
The documents can be accessed at www.go-e.co/downloads/?lang=en
Manual
Data sheet
Please read the instructions for the device carefully before installation and initial opera-
tion and observe all safety instructions! The complete operating instructions, short
instructions and the data sheet should help you:
WARNING
ATTENTION
¡ to use the product properly and avoid damage
¡ to increase durability and reliability
¡ to prevent a hazard
Installation of go-eCharger HOMEfix
The installation of the device may only be carried out by a qualified electrician. This
person must have a recognised electrical engineering qualification that allows him/her
to carry out all the electrical work required to install the go-eCharger HOMEfix in accor-
WARNING
dance with the applicable national regulations.
ATTENTION
The go-eCharger has a built-in RCD protection device with DC current detection (30 mA AC and 6 mA
DC). Therefore an upstream RCD type B is not necessary. The circuit to which the go-eCharger is
connected has to be independently of this fitted with an RCD type A and circuit breaker
technical data of the unit.
The device can be installed indoors or outdoors. First select a suitable position for the wall mounting
plate. Also use this as a template for marking the drill holes. Use the screws and dowels supplied to
attach the wall bracket. Make sure that there are no distortions on the surface. If the wall bracket warps, it
may not be possible to attach the device. Use spacers to compensate for any unevenness in the wall.
If necessary due to local conditions, lay additional supply line. When dimensioning the cross-section of
the additional supply line, special attention must be paid to the method of installation. We recommend
the following cable cross-sections, but the electrician has to decide according to the local situation:
HOMEfix 11 kW: as surface-mounted min. 2.5 mm², in wall min. 4 mm², in insulation min. 10 mm²
HOMEfix 22 kW: as surface-mounted min. 4 mm², in wall min. 6 mm², in insulation min. 10 mm²
ENGLISH
Short Instructions
according to the
