Ceramic glass
Front baf e
support
Rear ceramic
glass baf e
& rear panel
support posts

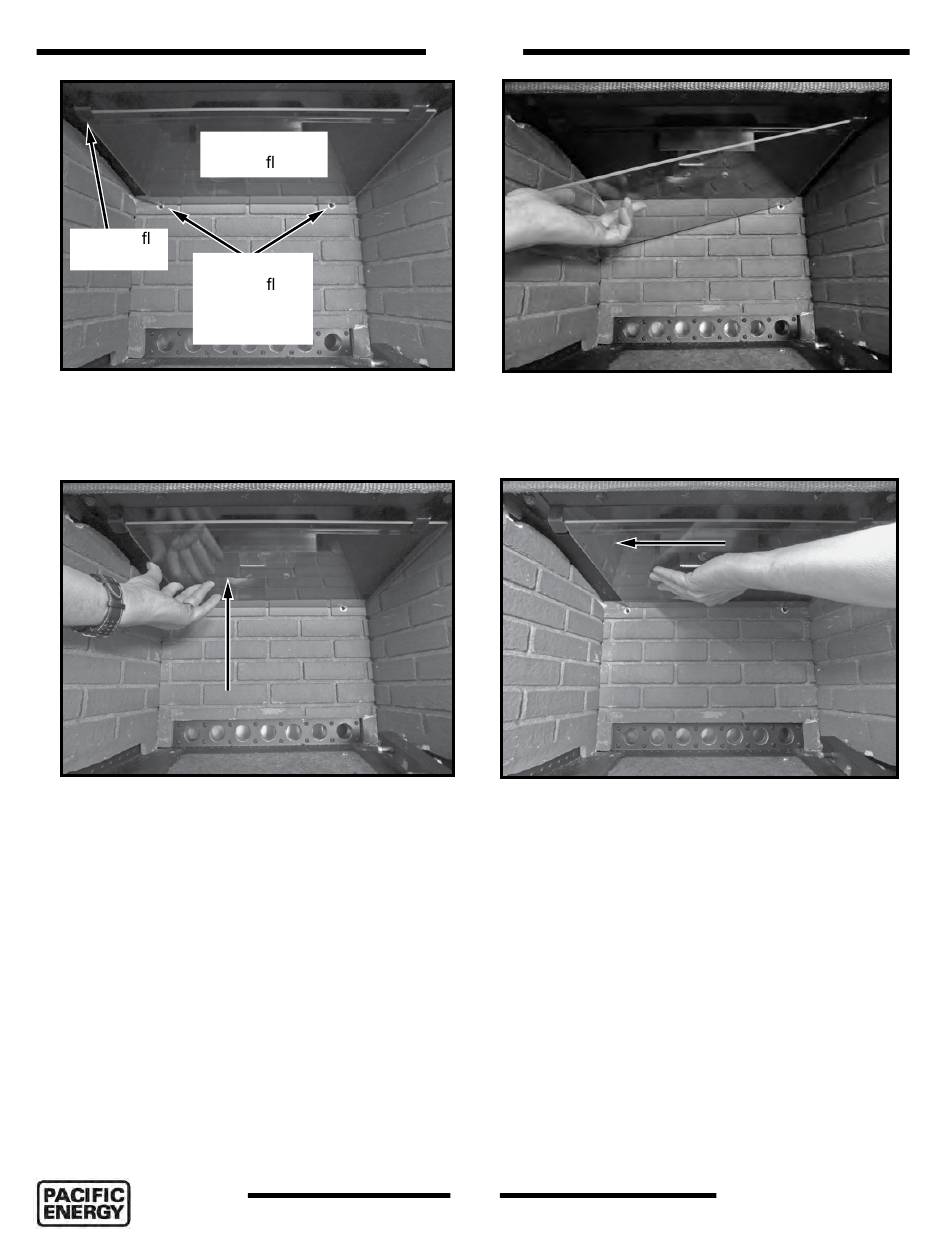

Figure 30: Ceramic glass baffle.
The baffle is made of ceramic glass which allows for the use of a halogen lamp feature. The halogen lamp is
only available on units using the SIT Proflame configuration, the Maxitrol configuration does not include the
use of a halogen lamp.
Figure 32: Raising baffle above front support.

Installing the ceramic baffle:

1. With the door removed, place one end of the baffle over one of the two upper corners so that the baffle
is resting on a rear peg and a front support (Figure 31).
2. Raise the opposite end of the baffle so that it is raised above the supports on the other side of the
firebox (Figure 32).
3. Slide the baffle over so that it is supported by all four supports (Figure 33).

Cleaning the ceramic glass baffle:

Note: Do not clean the ceramic glass baffle until the fireplace has been turned off long enough for the glass
door and ceramic baffle to sufficiently cool down. It is not necessary to remove the ceramic baffle in order
to clean it but the ceramic baffle is easily removed. Use glass cleaner to clean the ceramic baffle of soot or
other debris.
i20 TOFINO
baf e

Baffle

Figure 31: Inserting baffle into the upper corner.
Figure 33: Sliding baffle over to rest on top of supports.
