1 Scope of Manual

The following user information covers the Valtek GS general
service control valve:
• Metric DIN Units - PN 16 / 40, DN 15 - 150
• English ASME Units - Class 150 / 300, NPS ½ - 6
• Assembled with a pneumatic or electric linear actuator
• Comes with or without ancillary equipment

2 Intended Use

Control valves are pressure ves-
WARNING
sels designed and rated for spe-
cific application conditions. Before installation, check the
serial number and / or the tag number to ensure that the
valve and actuator being installed are correct for the in-
tended application. Do not use the valve outside of its rated
design limits. Exceeding the design limits may cause haz-
ardous conditions including leakage of the process media
or rupture of the pressure boundary resulting in possible
process loss, equipment or environmental damage, or seri-
ous personal injury or death.
The specific product design data can be found on the valve's
serial plate, data sheet and the calculation sheet (in acc. to the
IEC 60534-7:2010).
The Valtek GS handles a wide variety of general service ap-
plications, while offering high flow capacity. All sizes come
standard with unbalanced trim; for high pressure drop appli-
cations optional pressure balanced trim is available for NPS
sizes 3 to 6 (DIN size 80 to 150).
The Valtek GS consists of the body, bonnet, trim, and actuator.
The valve is designed with a high level of interchangeability al-
lowing the user to assemble the greatest possible number of
variations from a minimum number of components to match
each application. There are two bonnet designs, standard /
extended bonnets and bellows seal bonnets. See Figure 1 and
Figure 2.
The Valtek GS is designed in compliance with EN 1349:2009
- Industrial Process Control Valves (DIN EN 1349 and VDE
0409-1349).
The Valtek GS is designed for use in MODERATE and WORLD-
WIDE environmental conditions, ambient temperature range
Valtek GS General Service Valve
-40°F to 158°F (-40°C to +70°C), air humidity up to 93% non-
condensing, air pollution up to 300 µg/m
by the accessories.
The product offering may include optional ancillary equip-
ment, such as positioners, air-filter regulators, solenoid
valves, limit switches or boosters. Digital, I/P, or pneumatic
positioners can be mounted directly, with a mounting bracket
or according to NAMUR standards. Refer to the relevant man-
ufacturer's user instructions for information regarding other
ancillary equipment.

3 Product Identification

Each Valtek GS control valve comes with an attached serial
plate which includes key information specifically for each con-
trol valve:

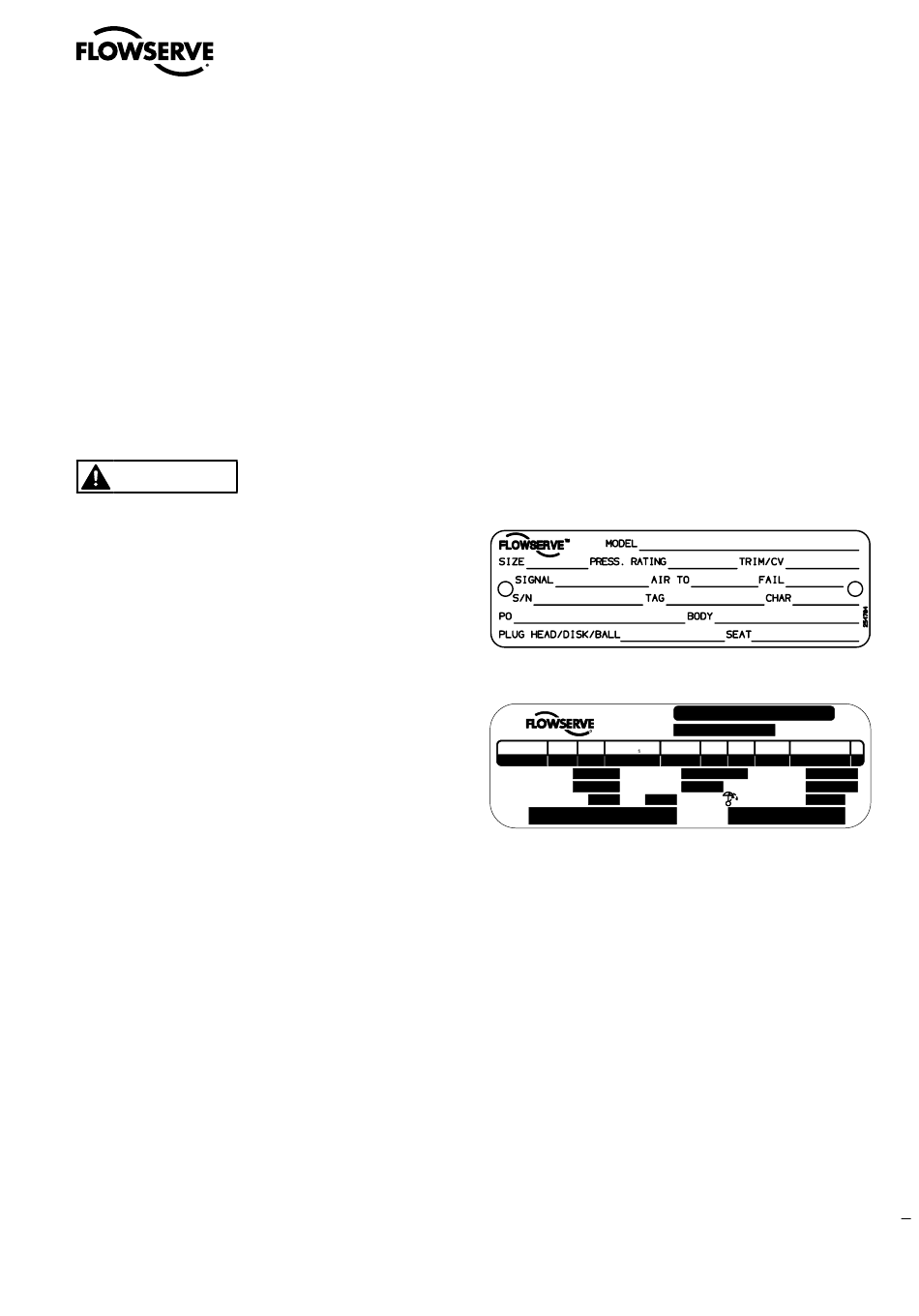

Figure 3: Serial Plate (WW-design, WorldWide)
R
Made in Villach - Austria
Typ
Gehaeuse / Atteste
DN
PN/Class
Type
Body / Certi cate
Betriebstemperatur
max.
Working Temperature
Betriebsdruck
max.
Working Pressure
Umgebungstemperatur
min.
Ambient Temperature
Figure 4: Serial Plate (EU-design, European Union)
The same serial number shown on the plate will appear on all
Valtek GS data sheets, dimensional drawings, bills of material,
and spare parts lists. Other information located on the serial
plate is self-explanatory for the Valtek GS control valve.
You can download .pdf versions of the Valtek GS documenta-
tion including a sales brochure, technical bulletin and user
instructions at www.flowserve.com. It is the user's respon-
sibility to keep this and related documentation on file and ac-
cessible for the Valtek GS product.

4 Valtek GS Modification

Valtek GS control valves are generally delivered as tested and
assembled units, with factory-mounted actuators.
FCD VLENIM0300-00-A4 08/14
, unless restricted
3
Kennzeichnung
Tag.No.
Fabrikations Nr.
Druecke sind Ueberdruecke
Serial No.
Pressures are gauge pressures
Kegel
Sitz
Innenteile
Kvs / Cv
Plug
Seat
Trim
Kennlinie / Hub
Zuluft
min. / max.
Characteristic / Stroke
Supply
fuer Antrieb
Federlaufbereich
dp
Spring Range
for Actuator
Sicherheitsstellung
Einbaulage
max.
< 30°
Arrangement
Failure Position
Besonderheiten
Specialities
flowserve.com
Antrieb
S
Actuator
3
