1 Scope of manual

The following user information covers Flowserve Valtek Valdisk,
double offset butterfly rotary control valve:

English ASME Units - Class 150, NPS 3 – 60

English ASME Units - Class 300 - 600, NPS 3 – 24

Metric DIN Units – PN 10 - 40, DN 80 – 600

Assembled with a pneumatic or electric rotary actuator.

Comes with or without ancillary equipment.

As an option an electric rotary actuator can be installed.

End Connection,
ASME Units, Wafer style: Class 150 - 600, NPS 3 - 12
ASME Units, Lug & Integral Flange style: Class 150, NPS 3
- 60 & Class 300 - 600, NPS 3 – 24
Metric DIN Units, Lug style- PN 10 - 40, DN 80 - 600

1.1 Disclaimer

These instructions cannot claim to
cover all details of all possible product
variations, nor can they provide information for every
possible example of installation, operation, or maintenance.
This means that the instructions include only the directions
to be followed by qualified personal using the product for
its defined purpose. If any uncertainties, clarification must
be obtained via Flowserve sales office. Sales office can be
found in www.flowserve.com.

2 Intended Use

Rotary control valves are pressure
vessels designed and rated for specific
application conditions. Before installation, check the serial
number and / or the tag number to ensure that the valve
and actuator being installed are correct for the intended
application. Do not use the valve outside of its rated design
limits. Exceeding the design limits may cause hazardous
conditions including leakage of the process media resulting
in possible process loss, equipment or environmental
damage, or serious personal injury or death.
The specific product design data can be found on the valve's
serial plate, data sheet and the calculation sheet.
VAIOM000286-02 (EN/AQ) May 2023
Valtek Valdisk High-Performance Butterfly Control Valves
The Valtek Valdisk handles a wide variety of applications, while
offering high flow capacity. It consists of the body, bonnet, trim,
transfer case and actuator.
The product offering may include optional ancillary equipment,
such as positioners, air-filter regulators, solenoid valves, limit
switches or boosters. Digital, I/P, or pneumatic positioners can
be mounted directly, with a mounting bracket or according to
NAMUR standards. Refer to the relevant manufacturer's user
instructions for information regarding other ancillary equipment.

3 Product Identification

Each Valtek Valdisk control valve comes with an attached serial
plate which includes key information specific to the control
valve.

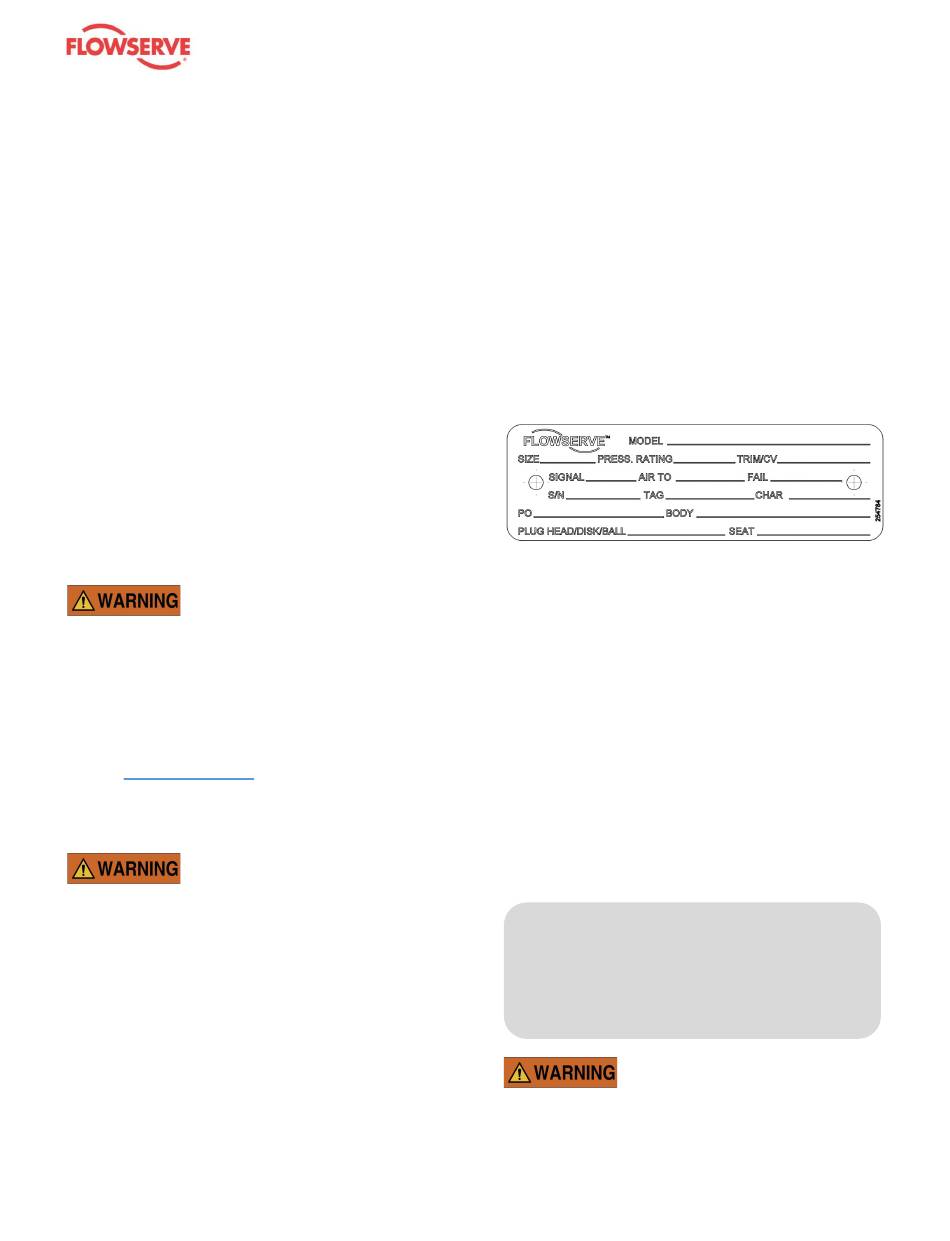

Figure 1: Valve Serial Plate
The same serial number shown on the plate will appear on all
Valtek Valdisk data sheets, dimensional drawings, bills of
material, and spare parts lists. Other information located on the
serial plate is self-explanatory for the Valtek Valdisk control
valve.
You can download .pdf versions of the Valtek Valdisk
documentation including a sales brochure, technical bulletin,
and user instructions at www.flowserve.com. It is the user's
responsibility to keep this and related documentation on file and
accessible for the Valtek Valdisk product.

4 Valtek Valdisk Modification

The Valtek Valdisk control valves are generally delivered as
tested and assembled units, with factory-mounted actuators.
Unauthorized modification of the Valtek Valdisk
control valve voids the product test certification
and product warranties, could drastically affect
product performance, and could be hazardous to
personnel and equipment.
Before Valtek Valdisk re-use, all
necessary tests must be repeated and
recorded in compliance with all test routines, guidelines,
and engineering standards.
Page 5 of 22
