Reassemble the actuator and positioner
onto the valve:
1. Mount the pneumatic diaphragm or multi-turn actuator
onto the bonnet and tighten the yoke lock nut (76)
clockwise (See Section 14: Required Torques).
The legs of the yoke should be parallel
NOTICE
to the flow direction.
2. Move the actuator to the open position.
3. Screw in the lower coupling (345) three turns and
move the actuator into the closed position.
The plug must be aligned onto the
NOTICE
seat. The cushioning effect of the bel-
lows can be prevented by tightening the packing follower.
4. Move the actuator back into the open position and
adjust the distance between the lower coupling (345)
and upper coupling (249) by adjusting the stroke
length.
Size
15 - 50 1/2" - 2"
65 - 100 3" - 4"
125 - 150 6"
Table 15: Stroke adjustment length
5. Move the actuator to the close position and install the
cap screws (240).
6. Lock the lock nut (113). Keep upper coupling (249)
from turning by securing with a wrench.
7. Reassemble the positioner on the valve as necessary
(See relevant accessory User Instruction).
8. Connect the valve into the pipeline (See Section 9:
Installation).
9. After reinstalling the control valve into the pipeline,
perform three full strokes and check the tightness of
the packing follower and bonnet bolting (See Section
10: Valve Quick-Check).
10. Log the maintenance interval and the work performed.
Valtek GS General Service Valve
Stroke
20 mm 0.787 in.
+ 0,5 + 0.02
mm 1.574 in.
40
+ 0,5 + 0.02
60 mm 2.362 in.
+ 0,8 + 0.03

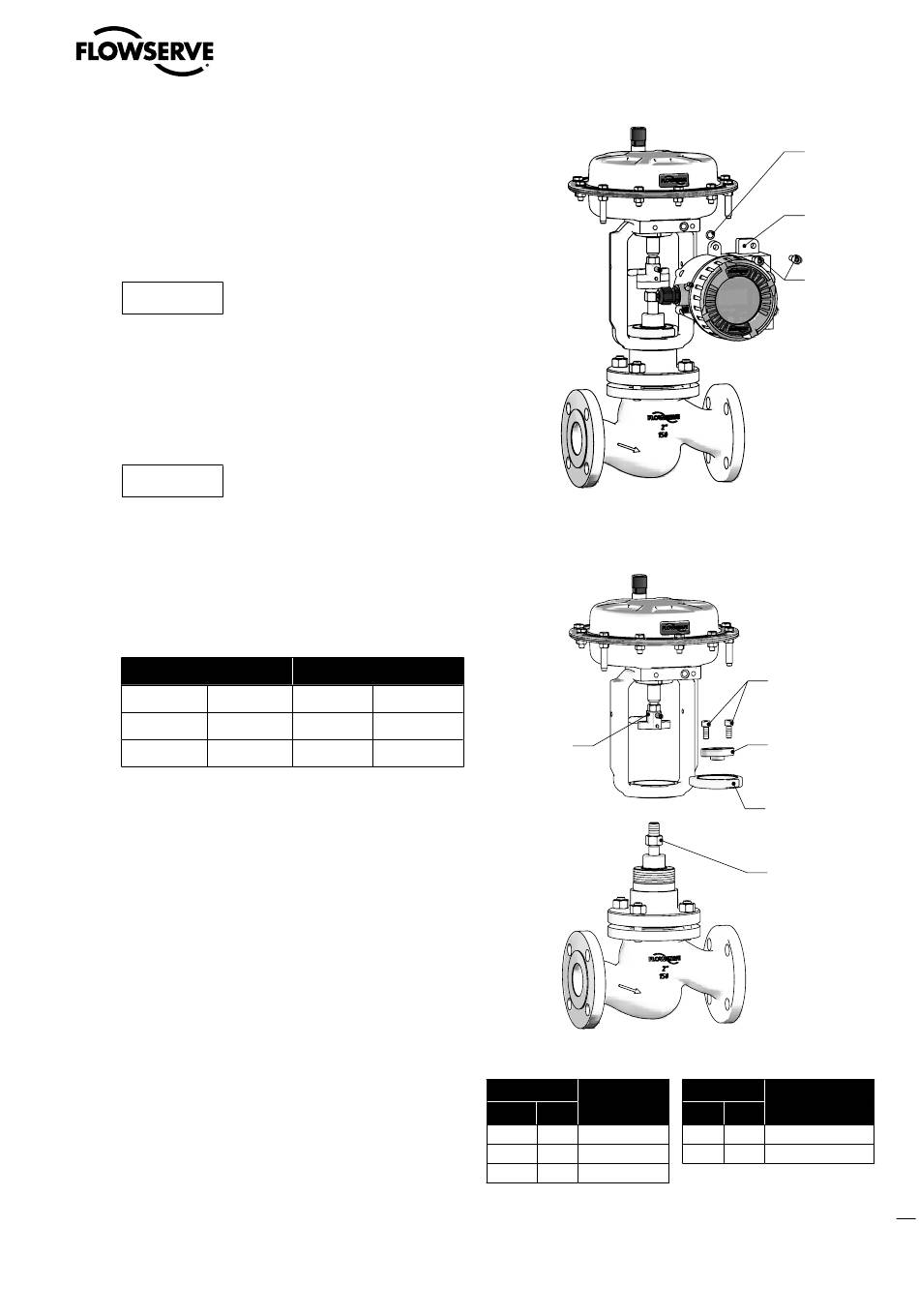

Figure 14: Remove the positioner
249
Figure 15: Remove the actuator
Item
Part
WW EU
1) 2)
76 5.10 Yoke lock nut
113 5.2 Lock nut
240 5.5 Cap screw
FCD VLENIM0300-00-A4 08/14
O-ring
Positioner
Socket screw
240
345
76
113
Item
Part
WW EU
249 5.3 Upper coupling
345 5.1 Lower coupling
Table 16: Coupling parts identification
WorldWide European Union
1) 2)
