17 Parts List

Item
Part
WW EU
1) 2)
1 1.1 Body
6 2.4 Bellows seal Unit
7 3.15 Head
8 2.3 Lock Bushing
20 2.1 Seat Ring
30 2.26 Multi. Cylinder
31 2.9 Cage
2)
40 3.1 Standard Bonnet
Extension Bonnet
Bellows Seal Bonnet
42 3.14 Plug Screw
48 3.13 Gasket
50 2.2 Contoured Plug
Quick Open
55 2.5 Profile Ring
56 2.10 Cage Gasket
58 1.2 Bonnet Gasket
59 2.15 Head Gasket
60 2.8 Profile Ring
65 2.12 Sealing Ring
66 2.21 Driving Band
80 3.4 Packing Follower
83 3.1.1 Lower Stem Guide
87 3.6 Upper Stem Guide
88 3.3 Packing
91 2.7 Seal Carrier
93 3.2 Packing box ring
106 3.17 Stud Bolt
108 1.3 Stud Bolt
109 3.7 Belleville Spring
110 3.16 Hex Nut
113 2.6 Hex Nut
1)
114 1.4 Hex Nut
133 2.28 Spring
3)
22
WorldWide European Union
1) 2)
see page 17,
1)
Available Materials
1.0619 A216 WCC 1.4408 A351 CF8M
316 SS
1.0460 A105 1.4404
or or
1.0619 A216 WCC 1.4408
316 SS
316 SS
1.4571
3)
A351 CF8M
1.0460 A105 1.4404
or or
1.0619 A216 WCC 1.4408
A2
Pure Graphite
316 SS (Alloy 6)
Pure Graphite
Pure Graphite
2)
Pure Graphite on Support Plate from 1.4401
Pure Graphite
Pure Graphite
1)
PTFE-Rings
2)
PTFE
2)
316 SS
316 SS (nitrided)
316 SS
PTFE-Rings
Graphite-Rings
316 SS
1)
316 SS
KG A193 A2-70
KG A193 A2-70
1.4310
KG A194 A2-70
316 SS
KG A194 A2-70
1.4568
K = Plug Kit, S = Seat Kit, D = Gasket Kit
Valtek GS General Service Valve
and see page 18
2) 3)
316 L
or or
A351 CF8M
S
K
316 L
or or
A351 CF8M
D
K
S
D
D
58
A193
20
A193
55
A194
108
1
A194
FCD VLENIM0300-00-A4 08/14
80
109
87
88
93
7
110
48
59
42
6
59
106
40
8
50
114

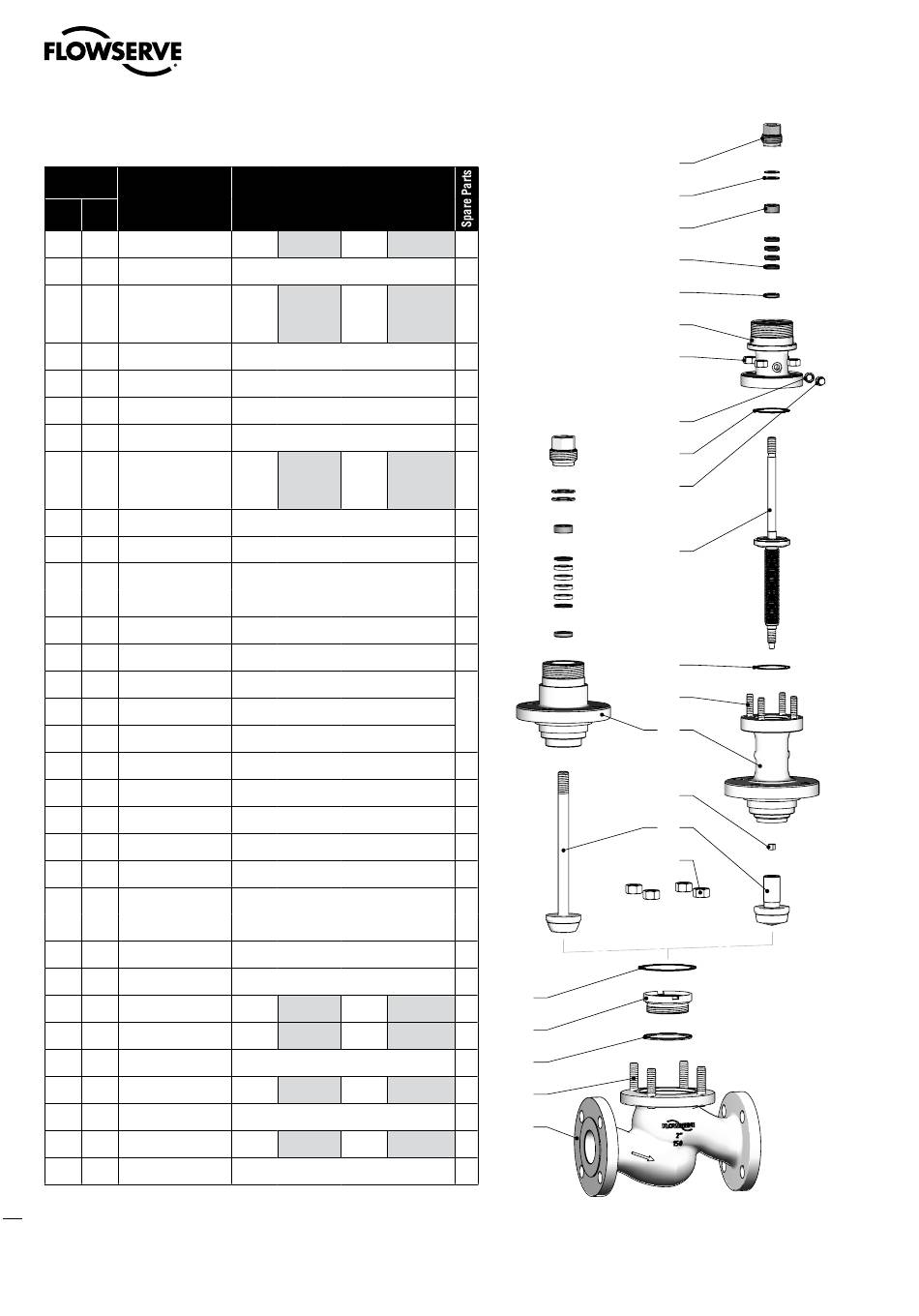

Figure 16: Complete valve parts
