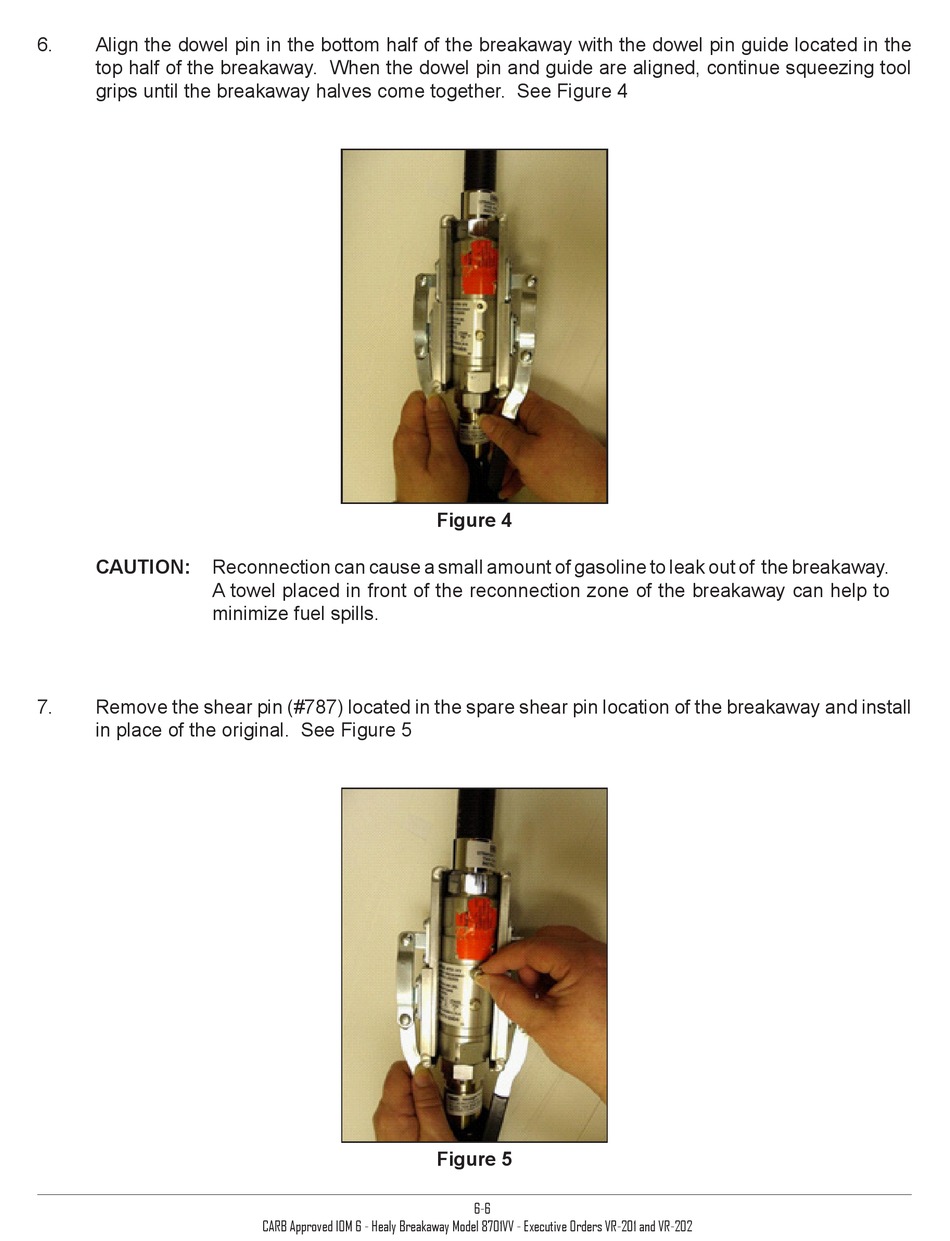

6. Align the dowel pin in the bottom half of the breakaway with the dowel pin guide located in the
top half of the breakaway. When the dowel pin and guide are aligned, continue squeezing tool
grips until the breakaway halves come together. See Figure 4
CAUTION: Reconnection can cause a small amount of gasoline to leak out of the breakaway.
A towel placed in front of the reconnection zone of the breakaway can help to
minimize fuel spills.
7. Remove the shear pin (#787) located in the spare shear pin location of the breakaway and install
in place of the original. See Figure 5
Figure 4
Figure 5
