7.

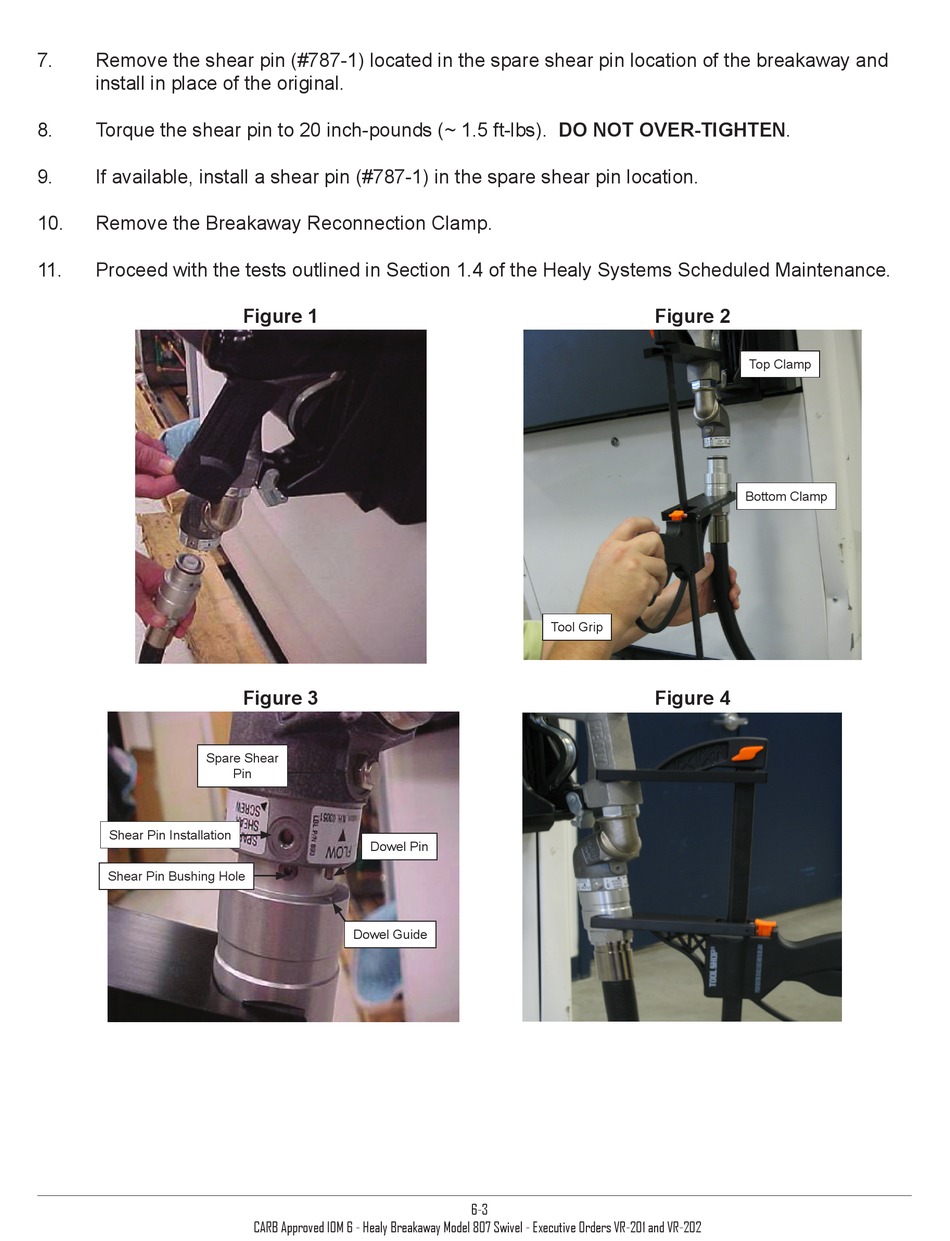

Remove the shear pin (#787-1) located in the spare shear pin location of the breakaway and
install in place of the original.
Torque the shear pin to 20 inch-pounds (~ 1.5 ft-lbs). DO NOT OVER-TIGHTEN.
8.
9.
If available, install a shear pin (#787-1) in the spare shear pin location.
10.
Remove the Breakaway Reconnection Clamp.
11.
Proceed with the tests outlined in Section 1.4 of the Healy Systems Scheduled Maintenance.
Spare Shear
Shear Pin Installation
Shear Pin Bushing Hole
Figure 1
Figure 3
Pin
Dowel Pin
Dowel Guide
CARB Approved IOM 6 - Healy Breakaway Model 807 Swivel - Executive Orders VR-201 and VR-202
Tool Grip
6-3
Figure 2
Top Clamp
Bottom Clamp
Figure 4
