Isolate fuel pressure/flow from the system. If dispenser is off and depressurized, o-rings can be
safely replaced WITHOUT draining the hose assembly. Always lubricate o-rings before installing and
reconnecting. An o-ring pick or small stiff wire will be useful to remove old o-rings.
The CTMCA has four (4) O-rings that can be serviced or replaced in the field. These are used to seal liquid (Qy. 2),
vapor (Qty. 1) and dirt (Qty. 1).
SEPARATES IN ONE DIRECTION ONLY
Use two open end wrenches and
apply in a clockwise rotary torque
ALWAYS LUBRICATE WITH OIL OR GREASE BEFORE RECONNECTION
CATLOW products should be used in compliance with applicable federal, state and local laws and regulations. Product selection
should be based on physical specifications and limitations and compatibility with the environment and material to be handled
PAGE 3 OF 4
2750 US RT 40
TIPP CITY, OHIO 45371

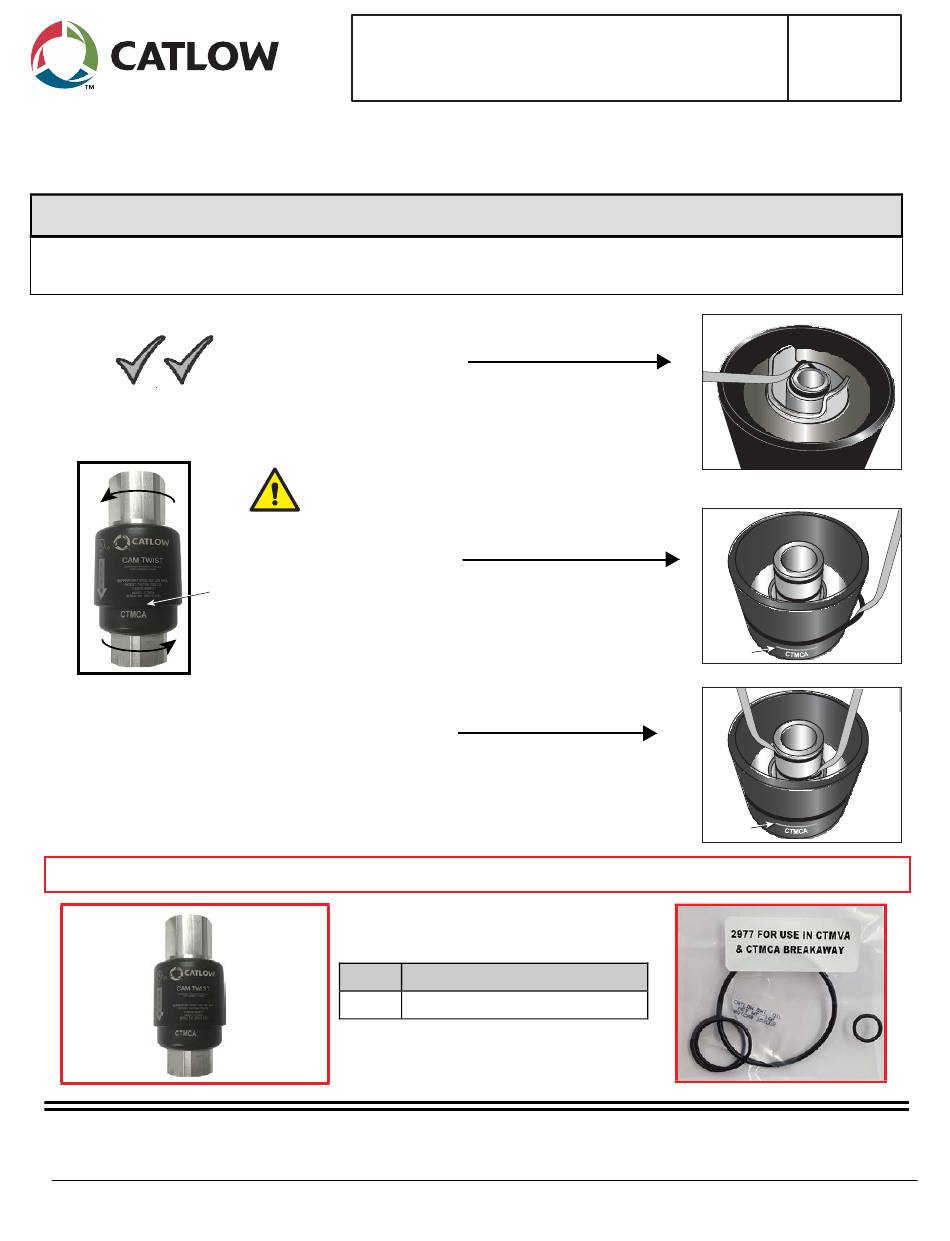

O-Ring REPAIR KIT Instructions
CAMTWIST Magnetic Breakaway
CTMCA O-RING REPLACEMENT
To Replace these O-rings use CATLOW PN #2977.
When the two halves
of the breakaway are
correctly connected, the
guide mark (see adjacent
Dirt and Liquid drawings to
the right) etched above the
letters CTMCA on the
nozzle half of the breakaway
will not be visible.
Occasionally during a drive-off or reconnection, the liquid o-ring
gets pinched or cut. If a breakaway leaks after reconnection,
replace the liquid o-ring. Reach inside the lower section of the
breakaway, squeeze the o-ring and remove it.

REPAIR KIT

PN
2977
Phone (800) 222-8569 Fax (937) 898-8631
USA
VAPOR VAPOR
VAPOR VAPOR
The Vapor o-ring is the smallest
o-ring in the repair kit. It is located in
the upper section of the breakaway.
This will need to be replaced if meter
creep is observed.
DIRT DIRT
DIRT DIRT
The largest o-ring is used to keep
dirt out of the nylon covers and
breakaway assembly. Replace if
missing or damaged.
LIQUID LIQUID
LIQUID LIQUID
DESCRIPTION
Repair Kit CTMCA
.
577014-071
DATE 03/2016
Guide
mark
Guide
mark
