top half of the breakaway. When dowel pin and guide are aligned, continue squeezing tool grip
until the breakaway halves join together.
CAUTION:
Reconnection can cause a small amount of gasoline to leak out of the
breakaway. A towel wrapped loosely around the breakaway can help to
minimize fuel spills.
7.
Remove the shear pin (#787) located in the spare shear pin location of the breakaway and
install in place of the original.
8.
Torque the shear pin to 20 inch-pounds (~ 1.5 ft-lbs). DO NOT OVER-TIGHTEN.
9.
If available, install a shear pin (#787) in the spare shear pin location.
10.
Remove the Breakaway Reconnection Clamp.
11.
Proceed with the tests outlined in Section 1.4 of the Healy Systems Scheduled Maintenance.

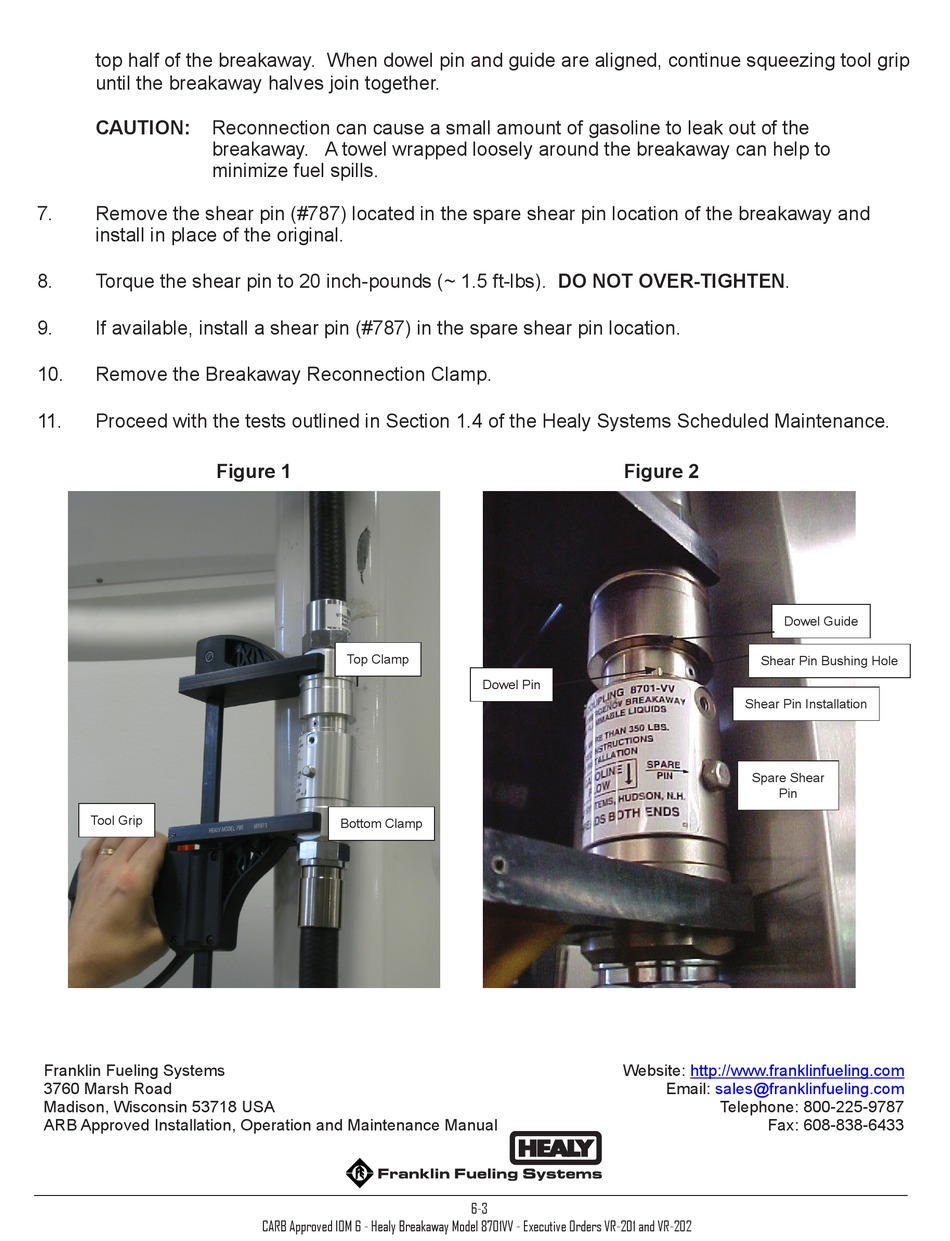

Figure 1
Tool Grip
Franklin Fueling Systems
3760 Marsh Road
Madison, Wisconsin 53718 USA
ARB Approved Installation, Operation and Maintenance Manual
Top Clamp
Bottom Clamp
CARB Approved IOM 6 - Healy Breakaway Model 8701VV - Executive Orders VR-201 and VR-202
Figure 2
Dowel Pin
Website:
6-3
Dowel Guide
Shear Pin Bushing Hole
Shear Pin Installation
Spare Shear
Pin
http://www.franklinfueling.com
Email:
sales@franklinfueling.com
Telephone: 800-225-9787
Fax: 608-838-6433
