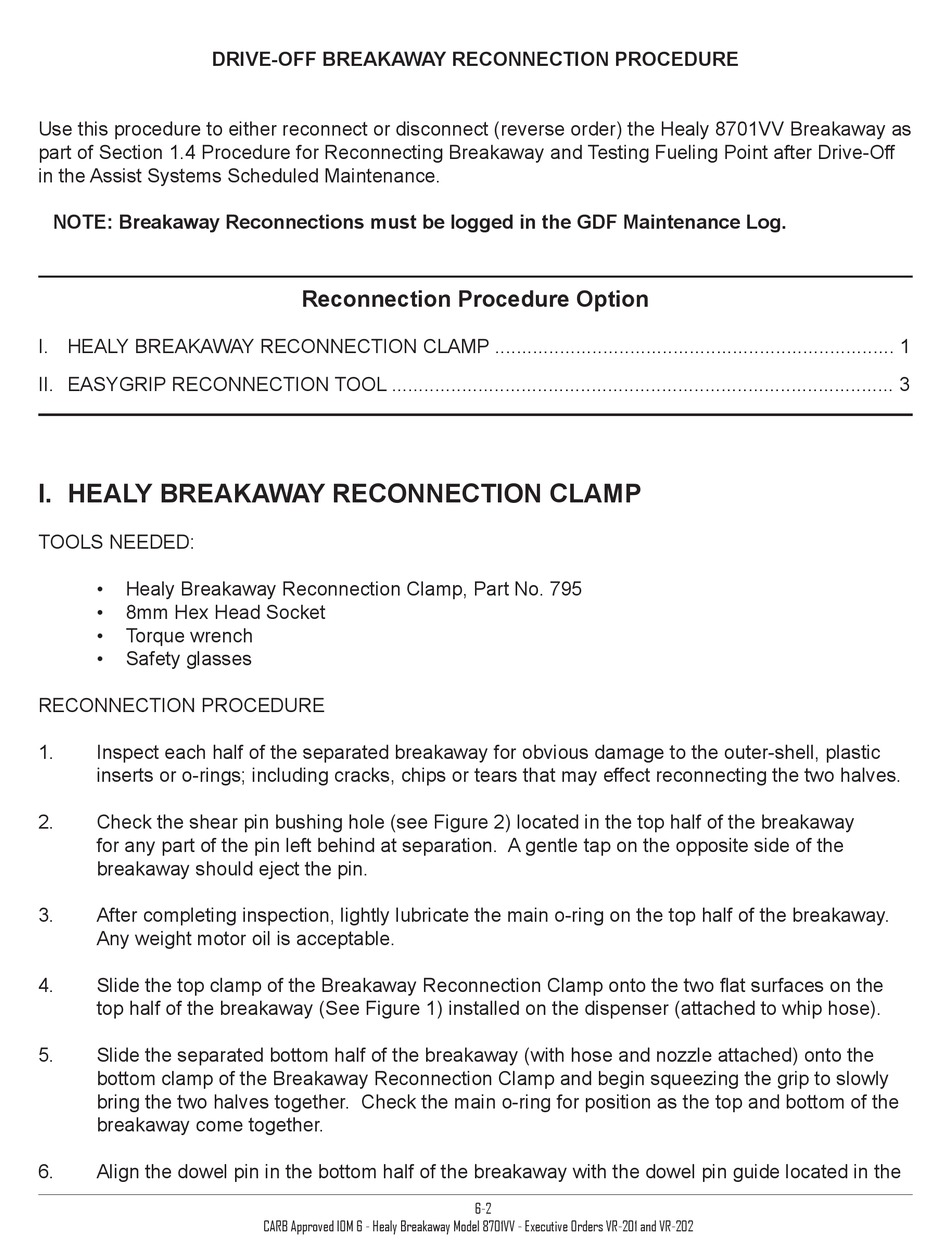

DRIVE-OFF BREAKAWAY RECONNECTION PROCEDURE
Use this procedure to either reconnect or disconnect (reverse order) the Healy 8701VV Breakaway as
part of Section 1.4 Procedure for Reconnecting Breakaway and Testing Fueling Point after Drive-Off
in the Assist Systems Scheduled Maintenance.
NOTE: Breakaway Reconnections must be logged in the GDF Maintenance Log.
I. HEALY BREAKAWAY RECONNECTION CLAMP .......................................................................... 1
II. EASYGRIP RECONNECTION TOOL ............................................................................................. 3
I. HEALY BREAKAWAY RECONNECTION CLAMP
TOOLS NEEDED:
•
Healy Breakaway Reconnection Clamp, Part No. 795
•
8mm Hex Head Socket
•
Torque wrench
•
Safety glasses
RECONNECTION PROCEDURE
1.
Inspect each half of the separated breakaway for obvious damage to the outer-shell, plastic
inserts or o-rings; including cracks, chips or tears that may effect reconnecting the two halves.
2.
Check the shear pin bushing hole (see Figure 2) located in the top half of the breakaway
for any part of the pin left behind at separation. A gentle tap on the opposite side of the
breakaway should eject the pin.
3.
After completing inspection, lightly lubricate the main o-ring on the top half of the breakaway.
Any weight motor oil is acceptable.
4.
Slide the top clamp of the Breakaway Reconnection Clamp onto the two flat surfaces on the
top half of the breakaway (See Figure 1) installed on the dispenser (attached to whip hose).
5.
Slide the separated bottom half of the breakaway (with hose and nozzle attached) onto the
bottom clamp of the Breakaway Reconnection Clamp and begin squeezing the grip to slowly
bring the two halves together. Check the main o-ring for position as the top and bottom of the
breakaway come together.
6.
Align the dowel pin in the bottom half of the breakaway with the dowel pin guide located in the
Reconnection Procedure Option
CARB Approved IOM 6 - Healy Breakaway Model 8701VV - Executive Orders VR-201 and VR-202
6-2
