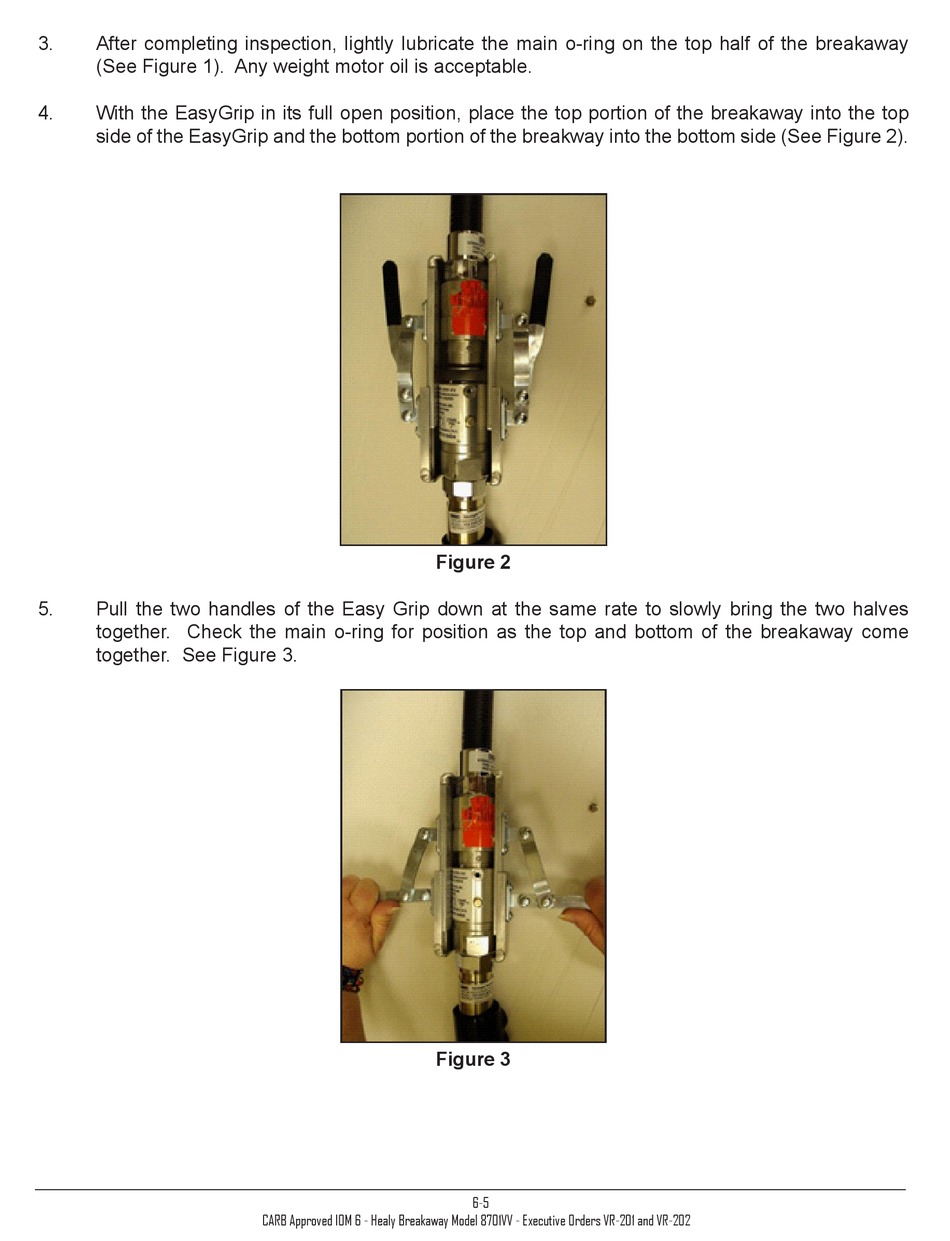

3.
After completing inspection, lightly lubricate the main o-ring on the top half of the breakaway
(See Figure 1). Any weight motor oil is acceptable.
4.
With the EasyGrip in its full open position, place the top portion of the breakaway into the top
side of the EasyGrip and the bottom portion of the breakway into the bottom side (See Figure 2).
5.
Pull the two handles of the Easy Grip down at the same rate to slowly bring the two halves
together. Check the main o-ring for position as the top and bottom of the breakaway come
together. See Figure 3.
Figure 2
Figure 3
CARB Approved IOM 6 - Healy Breakaway Model 8701VV - Executive Orders VR-201 and VR-202
6-5
