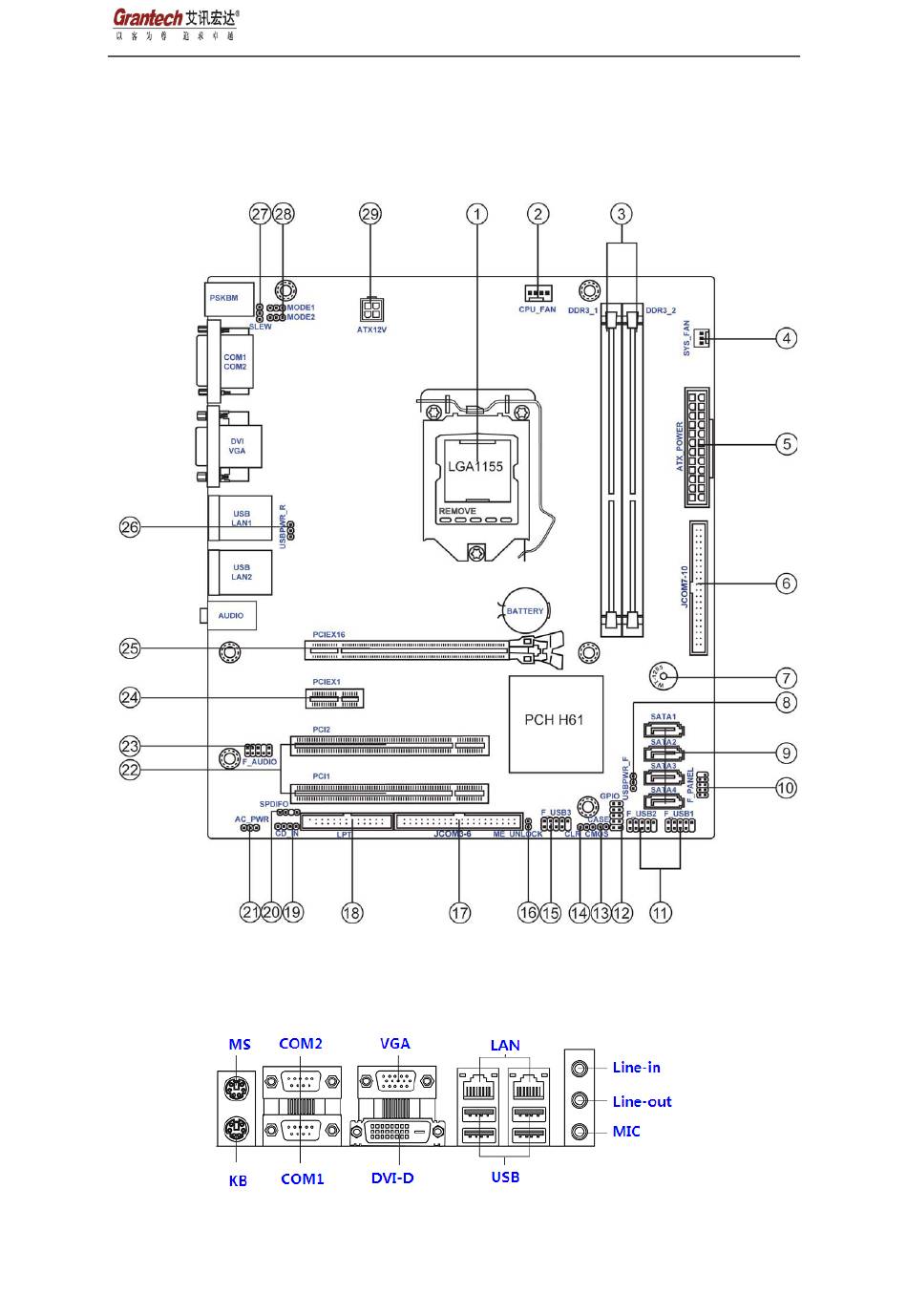

- Page 1 SYM76993VGGA Quick Installation Guide SYM76993VGGA 简易说明书 1、System Board Layout...
- Page 2 SYM76993VGGA Quick Installation Guide 2、Connectors: Label Connectors LGA 1155 Intel Core i3/i5/i7/Pentium Series (Sandy bridge or Ivy bridge ) CPU FAN Pin Header 2* 240pin DDR3 DIMM 1600/1333MHz up to 16GBz System FAN Pin Header ATX power Connector COM7~COM10 port Pin Header (4_in_1) Front panel USB power select Jumper SATA1~SATA4 port , speed up to 3.0Gb/s...
- Page 3 SYM76993VGGA Quick Installation Guide 3、Front Panel Connector setting : Define Function Define Function Reset Power GND Reset button+ Power button Button Power Reset button- JPANEL1 Power LED- HDD LED- Power LED HDD LED Power LED+ HDD LED+ 4、Jumper Setting (A)、Clear CMOS jumper:...
- Page 4 Transmitted Data terminal Data set ready Request to send Clear to send Ring Packing list: SYM76993VGGA Mainboard *1pcs Utility CD for SYM76993VGGA *1pcs Installation Guide *1pcs USB cable *1 pcs SATA cable *2pcs; Com extension cables *2pcs I/O Shield *1pcs...
