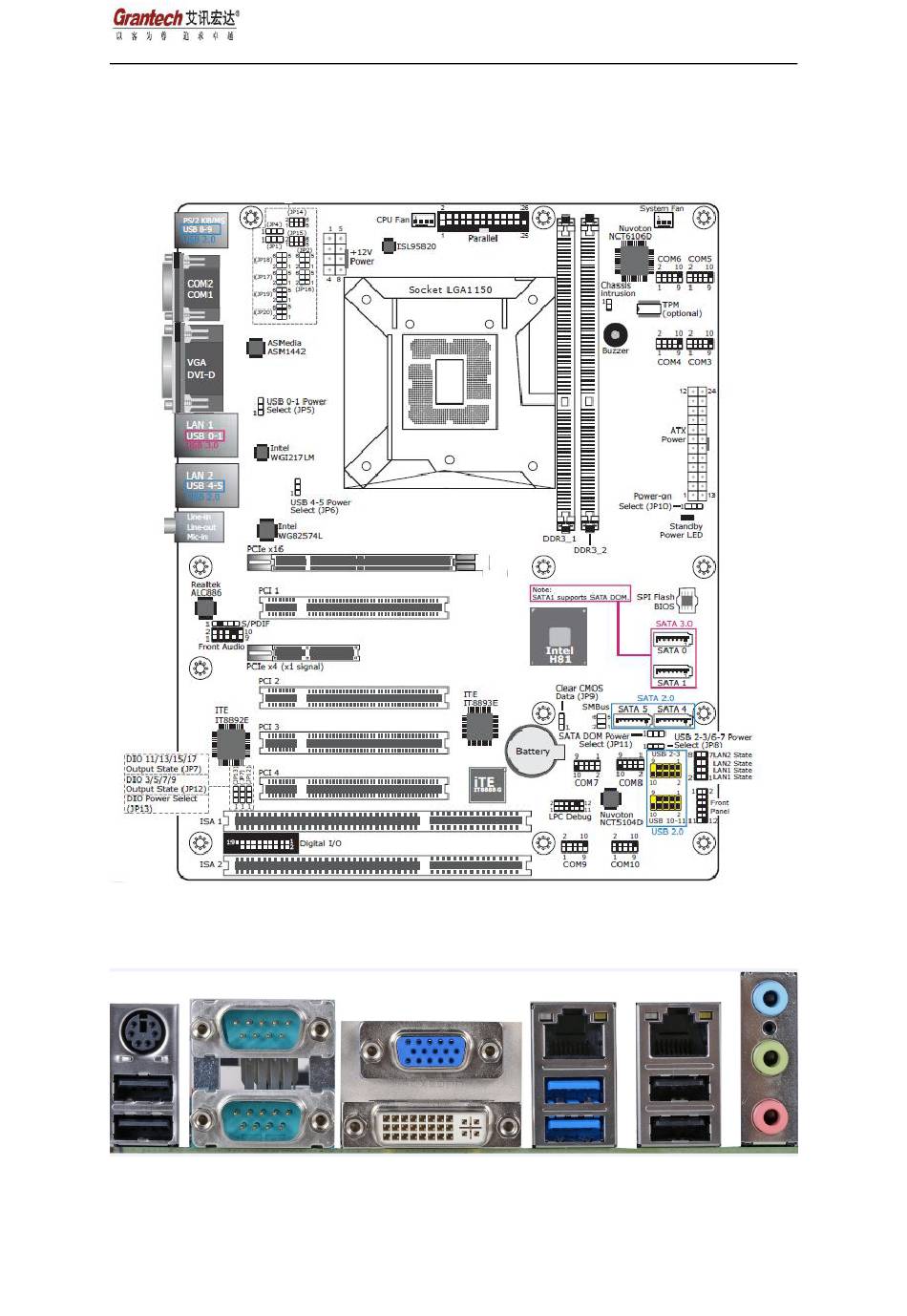

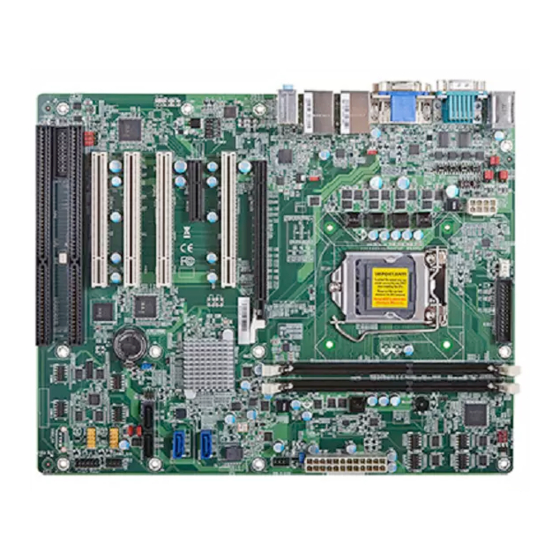

- Page 1 SYM86349VGGA Quick Installation Guide SYM86349VGGA 简易说明书 1、System Board Layout REAR IO...
- Page 2 SYM86349VGGA Quick Installation Guide 2、Connectors: Label Connectors Parallel Standard LPT ports USB2~3~USB10~11 USB 2.0 Headers SATA0~SATA1 Serial ATA 3.0 Header SATA4~SATA5 Serial ATA 2.0 Header COM3~COM10 Serial Port Header PCI1~PCI4 Standard PCI slots PCIeX4 Standard PCI Express x4 Slot PCIeX16...
- Page 3 SYM86349VGGA Quick Installation Guide 4、Front Panel Connector setting : Define Function Define Function Power LED+ Power LED HDD LED+ Power LED+ HDD LED HDD LED- Power LED- Reset + Power Button+ Reset Power Button Reset - 5、Jumper Setting (JP9、JP10): A、JP9: Clear CMOS Select...
- Page 4 SYM86349VGGA Quick Installation Guide C、COM port define Packing list: SYM86349VGGA Mainboard *1pcs Utility CD for SYM86349VGGA *1pcs Installation Guide *1pcs USB cable *2 pcs SATA cable *2pcs; COM and LPT extension cables *4pcs I/O Shield *1pcs...
