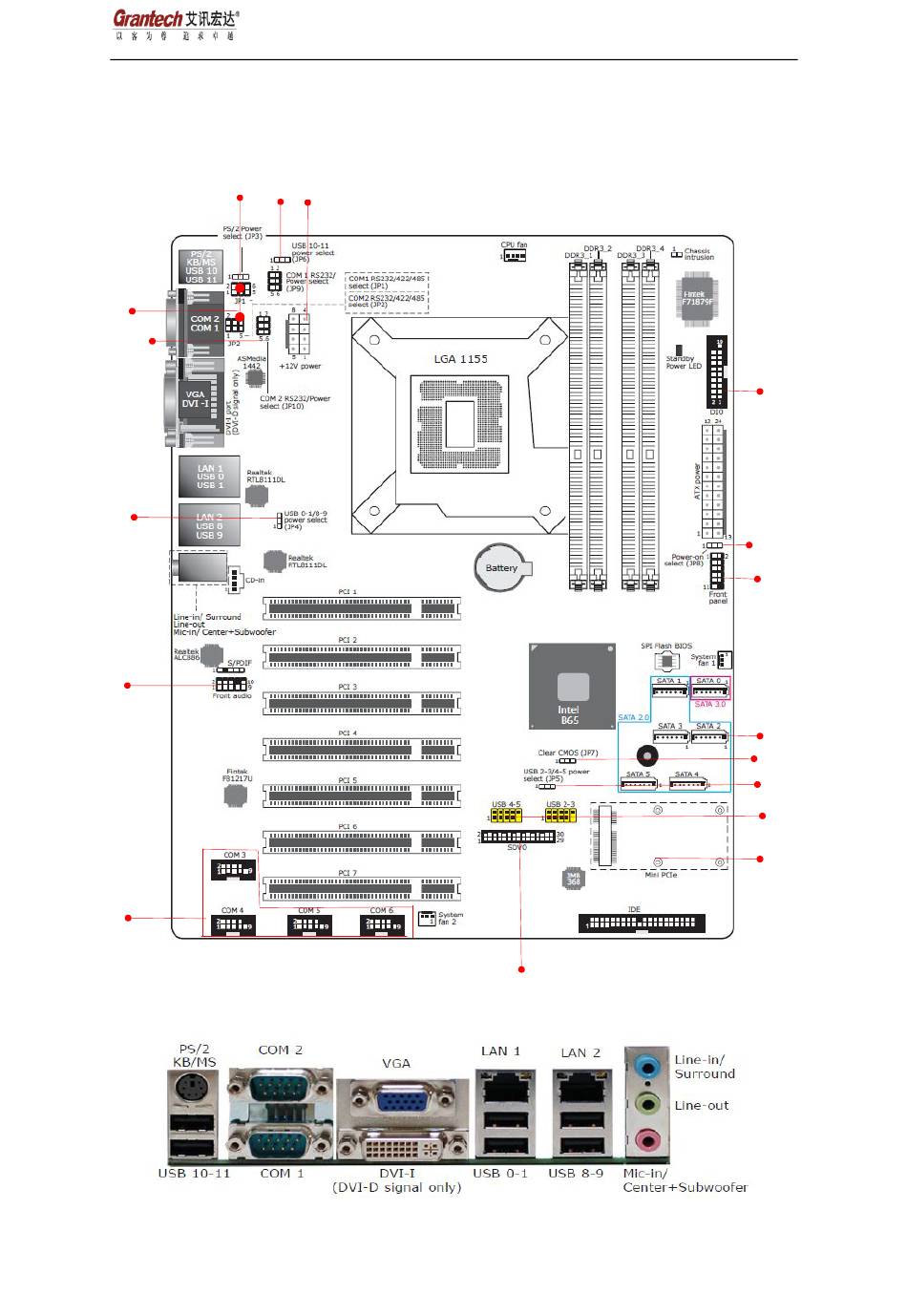

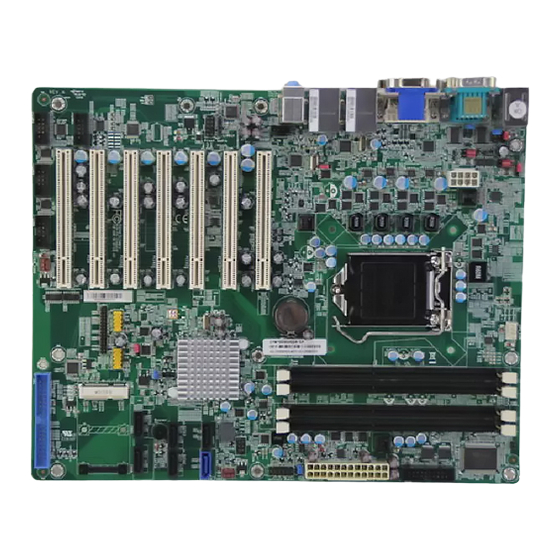

- Page 1 SYM76990VGGA-SP Quick Installation Guide 简易说明书 SYM76990VGGA-SP 1、System Board Layout JP3 JP6 12V POWER JP1/2 JP10 Front panel Front audio SATA2/3 USB2/5 Mini PCIe COM3/6 SDVO...
- Page 2 SYM76990VGGA-SP Quick Installation Guide 2、Connectors: Label Connectors PS/2 Power Select USB Power Select Power-on Select COM1 RS232/RS422/RS485 Select COM2 RS232/RS422/RS485 Select COM1RS232/Power Select JP10 COM2 RS232/Power Select Clear CMOS jumper USB2/5 Front panel USB 2.0 headers Front audio Front panel audio header SATA2/3 SATA1~SATA4 port , speed up to 3.0Gb/s...
- Page 3 SYM76990VGGA-SP Quick Installation Guide 4、Jumper Setting (A)、Clear CMOS jumper: Jumper status Short 1~2 Normal Operation (default) Short 2~3 Clear CMOS (B)、AT /ATX Power on Mode jumper: Jumper status Short 1~2 ATX mode Short 2~3 AT mode 5、COM1/COM2 RS232/422/485 setting: Note: Mode1 /Mode2 determine that COM1 belongs to RS232/422/485...
- Page 4 SYM76990VGGA-SP Quick Installation Guide Packing list: SYM76990VGGA-SP Mainboard *1pcs Utility CD for SYM76990VGGA-SP *1pcs Installation Guide *1pcs USB cable *1 pcs SATA cable *2pcs; Com extension cables *2pcs I/O Shield *1pcs...
