SYM76999VGGA Quick Installation Guide
SYM76999VGGA 简易说明书

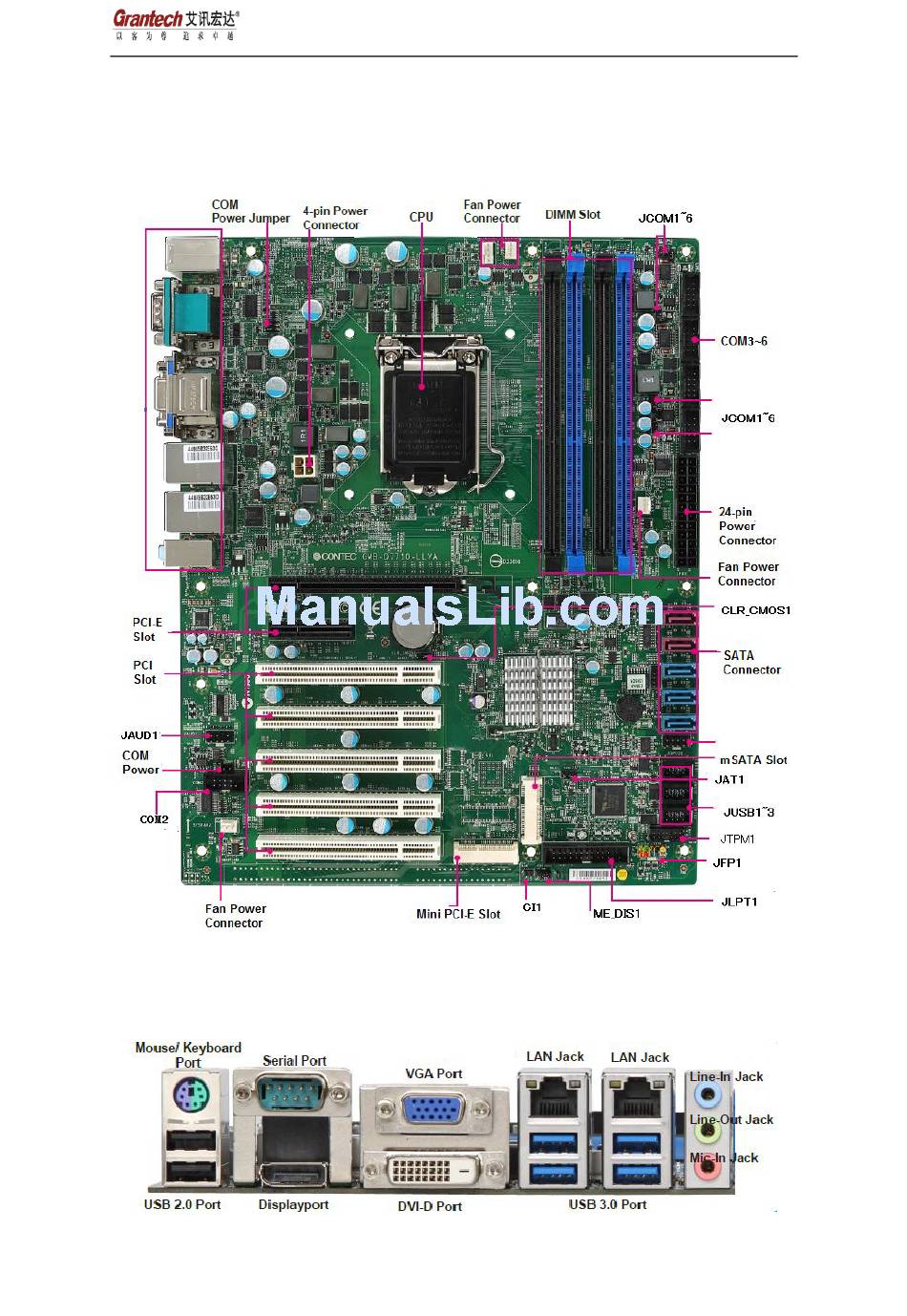

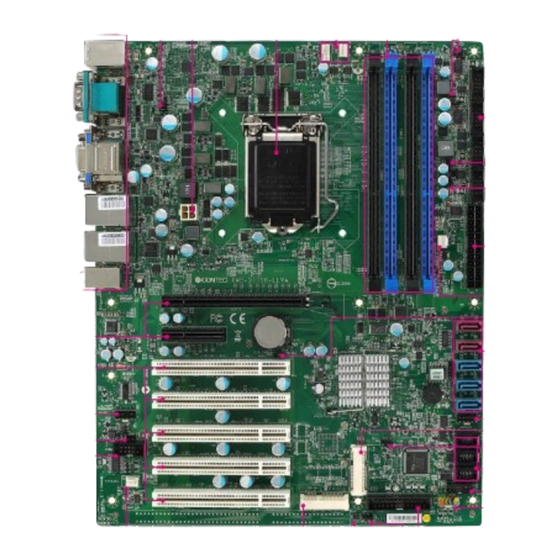

1、System Board Layout

Advertisement

loading
Need help?

Need help?

Do you have a question about the SYM76999VGGA and is the answer not in the manual?

Questions and answers

Related Manuals for Grantech SYM76999VGGA

Summary of Contents for Grantech SYM76999VGGA

  • Page 1 SYM76999VGGA Quick Installation Guide SYM76999VGGA 简易说明书 1、System Board Layout...
  • Page 2 SYM76999VGGA Quick Installation Guide 2、Connectors: Label Connectors Mini_PCIE Mini PCIe slot SATA Port Serial ATA Header Chassis Intrusion Connector JGPIO1 GPIO peripheral module Connector JTPM1 TPM Module Connector JAUD1 Front Audio Pin Header JLPT1 Parallel Port Connector ME_DIS1 Intel AMT ME Jumper JUSB1~3 USB 2.0 Pin Headers...
  • Page 3 SYM76999VGGA Quick Installation Guide 5、Jumper Setting (JBAT1、JAT1): A、JBAT1: Clear CMOS Select Jumper status 1-2 short Normal 2-3 Short Clear CMOS B、JAT1: AT/ATX Power Select Jumper status 1-2 short AT Mode 2-3 Short ATX Mode 、 RS-232/422/485 Serial Port Connector...
  • Page 4 SYM76999VGGA Quick Installation Guide Packing list: SYM76999VGGA Mainboard *1pcs Utility CD for SYM76999VGGA *1pcs Installation Guide *1pcs USB2.0 cable *3 pcs SATA cable *4pcs;...
