This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
The vendor makes no representations or warranties with respect to the contents here and specially disclaims
any implied warranties of merchantability or fitness for any purpose. Further the vendor reserves the right
to revise this publication and to make changes to the contents here without obligation to notify any party
beforehand.
Duplication of this publication, in part or in whole, is not allowed without first obtaining the vendor's approval
in writing.
The content of this user's manual is subject to be changed without notice and we will not be responsible for
any mistakes found in this user's manual. All the brand and product names are trademarks of their respective
companies.

FCC Information and Copyright

Dichiarazione di conformità sintetica
Ai sensi dell'art. 2 comma 3 del D.M. 275 del
30/10/2002
Si dichiara che questo prodotto è conforme
alle normative vigenti e soddisfa i requisiti
essenziali richiesti dalle direttive
2004/108/CE, 2006/95/CE e 1999/05/CE
quando ad esso applicabili

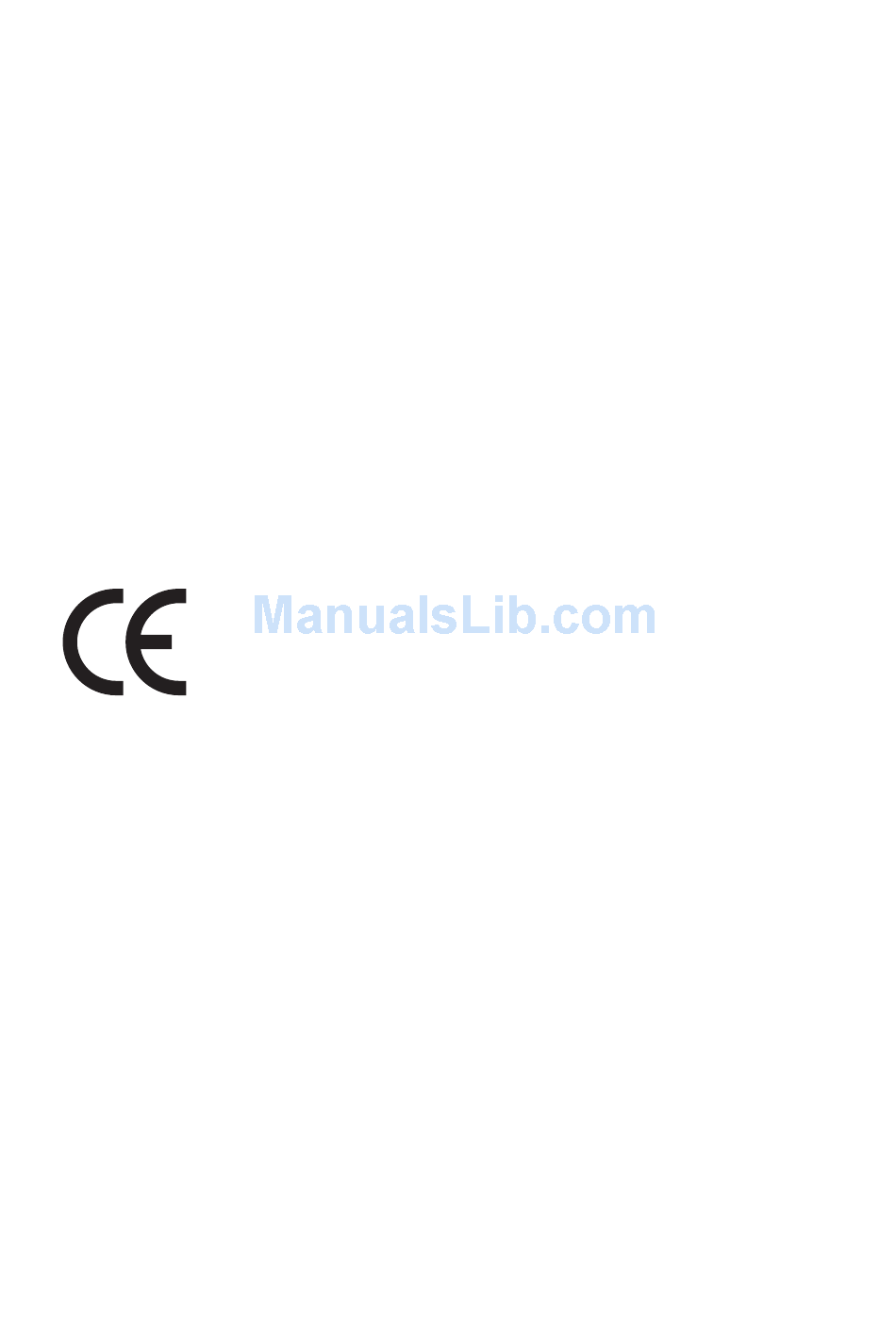

Short Declaration of conformity
We declare this product is complying with the
laws in force and meeting all the essential
requirements as specified by the directives
2004/108/CE, 2006/95/CE and 1999/05/CE
whenever these laws may be applied

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SYS8F377VGGA-3OMN and is the answer not in the manual?

Questions and answers

Summary of Contents for Grantech SYS8F377VGGA-3OMN

  • Page 1: Fcc Information And Copyright

    FCC Information and Copyright This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 2: Table Of Contents

    SYS8F377VGGA-3OMN User’s Manual Table Of Contents FCC Information and Copyright ������������������������������������������������������������������������������� 1 Chapter 1: Introduction ������������������������������������������������������������������������������������������� 3 1.1 Before You Start .............................3 1.2 Specifications ............................4 1.3 Rear Panel Connectors ...........................5 1.4 Motherboard Layout ..........................6 Chapter 2: Hardware installation ����������������������������������������������������������������������������� 8 2.1 Central Processing Unit (CPU) ........................8...
  • Page 3: Chapter 1: Introduction

    SYS8F377VGGA-3OMN User’s Manual Chapter 1: Introduction 1.1 Before You Start Thank you for choosing our product. Before you start installing the motherboard, please make sure you follow the instructions below: •  Prepare a dry and stable working environment with sufficient lighting.
  • Page 4: Specifications

    SYS8F377VGGA-3OMN User’s Manual 1.2 Specifications Intel® Braswell SoC N3160 (QC-2.24GHz) / Micro-FCBGA (SoC-type) Maximum CPU TDP (Thermal Design Power): 6Watt Within Intel Braswell SoC Dual independent displays (Extended mode) as below: Graphic -- HDMI Port (Max resolution 1920 x 1200)
  • Page 5: Rear Panel Connectors

    SYS8F377VGGA-3OMN User’s Manual 1.3 Rear Panel Connectors Chapter 1: Introduction | 5...
  • Page 6: Motherboard Layout

    SYS8F377VGGA-3OMN User’s Manual 1.4 Motherboard Layout Top View 6 | Chapter 1: Introduction...
  • Page 7 SYS8F377VGGA-3OMN User’s Manual Back View »  »  represents the 1st pin. Chapter 1: Introduction | 7...
  • Page 8: Chapter 2: Hardware Installation

    SYS8F377VGGA-3OMN User’s Manual Chapter 2: Hardware installation 2.1 Central Processing Unit (CPU) The mainboard includes an Intel® Celeron processor, and a cooler has been installed to provide sufficient cooling 2.2 Fan Headers These fan headers support cooling-fans built in the computer. The fan cable and connector may be different according to the fan manufacturer.
  • Page 9: Jumpers / Slot / Headers / Connectors

    SYS8F377VGGA-3OMN User’s Manual Installing mSATA Module Insert mSATA module into mini PCIe slot (MSATA1) Secure screw to the motherboard »  » mSATA module & screw sold separately. 2.4 Jumpers / Slot / Headers / Connectors Jumper Setting The illustration shows how to set up jumpers. When the jumper cap is placed on pins, the jumper is “close”, if not, that means the jumper is “open”.
  • Page 10 SYS8F377VGGA-3OMN User’s Manual PS2_CON: PS/2 Keyboard & Mouse Connector Pin Assignment MS_CLK PS2_VCC KB_CLK MS_DATA SP2_GND KB_DATA SATA1: Serial ATA Connector Pin Assignment Ground Ground Ground SATAPW: SATA Hard Disk Power-out Connector Pin Assignment Ground Ground +12V F_USB1/2: USB 2.0 Connectors...
  • Page 11 SYS8F377VGGA-3OMN User’s Manual JW_FP: Front Panel Header Pin Assignment Function HDD LED+ HDD LED HDD LED- Reset Button Reset Switch VCC5 Power LED+ Power LED Power LED- Power Button Power Button JDIO: Digital I/O Connector Pin Function Assignment Address Read...
  • Page 12 SYS8F377VGGA-3OMN User’s Manual JANLED: Front LAN LED Connector Pin Assignment LAN1_VCC LAN1_100M LAN2_VCC LAN2_100M LAN1_ACT LAN1_1G LAN2_ACT LAN2_1G INVERTER: LCD Backlight Inverter Connector Pin Assignment BKLT_PWR BKLT_PWR BKLT_EN BKLT_PWM LVDS: 24-bit Dual Channel LVDS Connector This connector supports 18/24 bit Dual-channel panels.
  • Page 13 SYS8F377VGGA-3OMN User’s Manual JCOM1/2/3/4/5/6: Serial Port Connectors RS-422 RS-485 Pin RS-232 (for COM1) (for COM1) Carrier detect (DCD) DATA- Received data (RXD) DATA+ Transmitted data (TXD) Data terminal ready (DTR) Signal ground (GND) Data set ready (DSR) Request to send (RTS)
  • Page 14 SYS8F377VGGA-3OMN User’s Manual JLV2: LCD Backlight Inverter Power Select Header (5V/12V) Pin 1-2 Close: VCC12S (12V) Pin 2-3 Close: VCC5S (5V) JLV3: LCD PWM / Voltage Level Mode Select Header Pin 1-2 Close: DC Mode Pin 2-3 Close: PWM Mode...
  • Page 15 SYS8F377VGGA-3OMN User’s Manual MSATA1: mSATA Connector PE1: Mini PCIe Connector SIM1: NANO SIM Card Socket Pin Assignment Pin Assignment DATA LED1/2: Power LED LED No. Function LED Color LED1 Standby LED2 Power On Blue Chapter 2: Hardware installation | 15...
  • Page 16: Chapter 3: Bios Setup

    SYS8F377VGGA-3OMN User’s Manual Chapter 3: BIOS Setup Introduction The purpose of this manual is to describe the settings in the AMI UEFI BIOS Setup program on this motherboard. The Setup program allows users to modify the basic system configuration and save these settings to NVRAM.
  • Page 17: Main Menu

    SYS8F377VGGA-3OMN User’s Manual 3�1 Main Menu Once you enter AMI UEFI BIOS Setup Utility, the Main Menu will appear on the screen providing an overview of the basic system information. BIOS Information Shows system information including UEFI BIOS version, model name, marketing name, built date, etc.
  • Page 18: Advanced Menu

    SYS8F377VGGA-3OMN User’s Manual 3.2 Advanced Menu The Advanced Menu allows you to configure the settings of CPU, Super I/O, Power Management, and other system devices. Note »  » Beware of that setting inappropriate values in items of this menu may cause system to malfunction. »  » The options and default settings might be different by RAM or CPU models. ACPI Settings Enable ACPI Auto Configuration This item enables or disables BIOS ACPI Auto Configuration.
  • Page 19: Super Io Configuration

    SYS8F377VGGA-3OMN User’s Manual ACPI Sleep State This item selects the highest ACPI sleep state the system will enter when the SUSPEND button is pressed. Options: S3 (Suspend to RAM)(Default) / Suspend Disabled Lock Legacy Resources This item enables or disables Lock of Legacy Resources.
  • Page 20 SYS8F377VGGA-3OMN User’s Manual Serial Port 1/2/3/4/5/6 Configuration Serial Port This item enables or disables Serial Port (COM). Options: Enabled (Default) / Disabled Change Settings This item selects an optimal setting for Super IO device. Options: Auto (Default) / IO=3F8h; IRQ=4 / IO=3F8h; IRQ= 3,4,5,6,7,9,10,11,12 / IO=2F8h; IRQ= 3,4,5,6,7,9,10,11,12 / IO=3E8h;...
  • Page 21 SYS8F377VGGA-3OMN User’s Manual H/W Monitor Smart Fan Function This item enable or disable Smart Fan. Options: Disabled (Default) / Enabled » The following items appear only when you set the Smart Fan function to [Enabled]. Smart Fan Mode Configuration Smart Fan Control This item allows you to select Smart Fan Mode.
  • Page 22: Cpu Configuration

    SYS8F377VGGA-3OMN User’s Manual Duty Cycle 1/2/3/4 This item auto fan speed control. Fan speed will follow different temperature by different duty cycle 1-100. » The following items appear only when you set the Smart Fan Control function to [Manual RPM Mode].
  • Page 23: Socket 0 Cpu Information

    SYS8F377VGGA-3OMN User’s Manual Socket 0 CPU Information This item shows Socket 0 CPU Information. CPU Thermal Configuration This item enabled or disabled Digital Thermal Sensor. Options: Disabled (Default) / Enabled Limit CPUID Maximum When the computer is booted up, the operating system executes the CPUID instruction to identify the processor and its capabilities.
  • Page 24: Ppm Configuration

    SYS8F377VGGA-3OMN User’s Manual P-STATE Coordination This item changes P-STATE Coordination. Options: HW_ALL (Default) / SW_ALL / SW_ANY Package C state limit This item enables or disables package C state limit. Options: C7 (Default) / C1 / C3 / C6 PPM Configuration EIST This item enables or disables Intel SpeedSteps.
  • Page 25: Sata Configuration

    SYS8F377VGGA-3OMN User’s Manual SATA Configuration Serial-ATA (SATA) This item enabled or disabled Serial ATA Device. Options: Enabled (Default) / Disabled SATA Mode Selection This item determines how SATA controller(s) operate. Options: AHCI (Default) SATA Interface Speed This item allows you to select SATA Interface Speed, CHV A1 always with Gen1 Speed.
  • Page 26: Pci Subsystem Settings

    SYS8F377VGGA-3OMN User’s Manual PCI Subsystem Settings PCI Latency Timer This item allows you to adjust value to be programmed into PCI Latency Timer Register. Options: 32 PCI Bus Clocks (Default) / 64 PCI Bus Clocks / 96 PCI Bus Clocks / 128 PCI Bus Clocks / 160 PCI...
  • Page 27: Network Stack Configuration

    SYS8F377VGGA-3OMN User’s Manual Network Stack Configuration Network Stack This item enabled or disabled UEFI network stack Options: Disabled (Default) / Enabled »  » Note: The following items appear only when you set the Network Stack function to [Enabled] IPv4 PXE Support This item enables or disables IPv4 PXE Boot Support. If disabled IPv4 PXE boot option will not be created.
  • Page 28: Usb Configuration

    SYS8F377VGGA-3OMN User’s Manual CSM Support This item enabled or disabled CSM Support Options: Enabled (Default) / Disabled GateA20 Active Upon Request – GA20 can be disabled using BIOS services. Always – do not allow disabling GA20; this option is useful when any RT code is executed above 1MB.
  • Page 29 SYS8F377VGGA-3OMN User’s Manual XHCI Hand-Off This is a workaround for OSes without XHCI hand-off support. The XHCI ownership change should be claimed by XHCI driver. Options: Enabled (Default) / Disabled USB Mass Storage Driver Support The item allows you to enable or disable USB Mass Storage Driver Support.
  • Page 30: Chipset Menu

    SYS8F377VGGA-3OMN User’s Manual 3�3 Chipset Menu This section describes configuring the PCI bus system. PCI, or Personal Computer Interconnect, is a system which allows I/O devices to operate at speeds nearing the speed of the CPU itself uses when communicating with its own special components.
  • Page 31 SYS8F377VGGA-3OMN User’s Manual IGD - LCD Control Primary IGFX Boot Display This item allows you to select the Video Device which will be activated during POST. This has no effect if external graphics present. Secondary boot display selection will appear based on your selection. VGA modes will be supported only on primary display.
  • Page 32: South Bridge

    SYS8F377VGGA-3OMN User’s Manual Max TOLUD This item sets maxium value of TOLUD. Options: 3G (Default) South Bridge Azalia Configuration Audio Controller This item control detection of the Azalia device. Disabled = Azalia will be unconditionally disabled. Enabled = Azalia will be unconditionally Enabled.
  • Page 33 SYS8F377VGGA-3OMN User’s Manual USB Configuration XHCI Mode The item enabled or disabled mode of operation of xHCI controller. Options: Enabled (Default) / Disabled SSIC Support Enable The item enable or disable SSIC Support. Options: Disabled (Default) / Enabled SSIC Init Sequence The item selects SSIC Initialization Sequence 1 - Windows, SSIC Initialization Sequence 2 - Android.
  • Page 34 SYS8F377VGGA-3OMN User’s Manual PCI Express Configuration Onboard LAN1 This item enabled or disabled Onboard PCIE LAN. Options: Enabled (Default) / Disabled Onboard LAN Ootion ROM This item enabled or disabled Onboard LAN Option ROM. Options: Disabled (Default) / Enabled Onboard LAN2 This item enabled or disabled Onboard LAN.
  • Page 35: Security Menu

    SYS8F377VGGA-3OMN User’s Manual 3.4 Security Menu Administrator Password This item sets Administrator Password. User Password This item sets User Password. Secure Boot menu Secure Boot Secure Boot can be enabled if 1. System running in user mode with enrolled Platform Key(PK) 2.CSM function is disabled.
  • Page 36 SYS8F377VGGA-3OMN User’s Manual Key Management Provision Factory Default Keys This item allows you to install factory default secure Boot keys when the system is in setup mode. Options: Enabled (Default) / Disabled Enroll all Factory Default Keys This item Force System to user mode - install all Factory Default keys (PK, KEK, db, dbt, dbx). Change takes effect after reboot.
  • Page 37: Boot Menu

    SYS8F377VGGA-3OMN User’s Manual 3.5 Boot Menu This menu allows you to setup the system boot options. Setup Prompt Timeout This item allows you to set number of seconds to wait for setup activation key. Options: 5 (Default) Bootup NumLock State This item allows you to select the keyboard NumLock state.
  • Page 38: Exit Menu

    SYS8F377VGGA-3OMN User’s Manual 3.6 Exit Menu This menu allows you to load the optimal default settings, and save or discard the changes to the BIOS items. Save Changes and Reset Reset the system after saving the changes. Discard Changes and Exit Abandon all changes made during the current session and exit setup.
