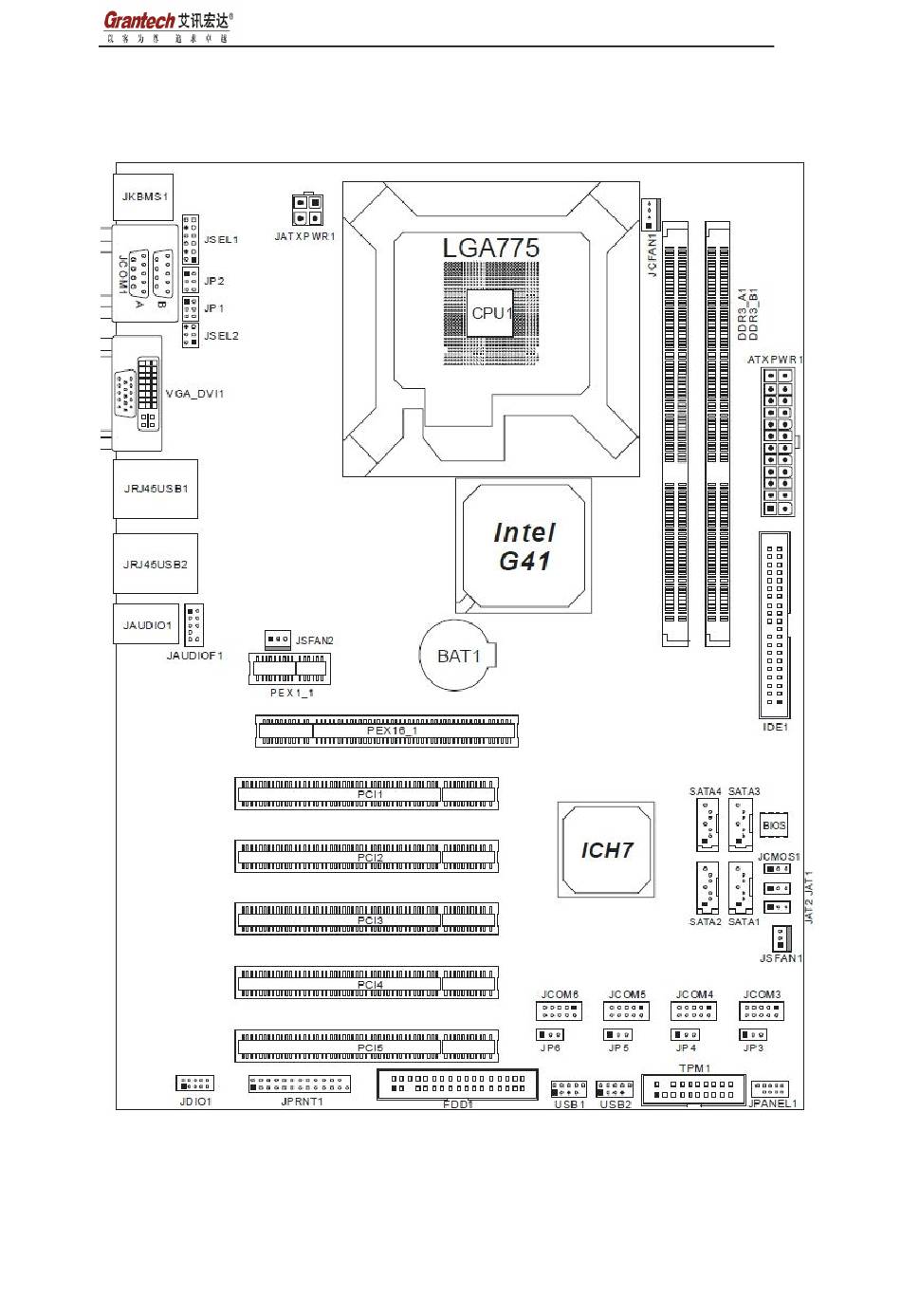

- Page 1 SYM76941VGGA Quick Installation Guide SYM76941VGGA 简易说明书 1、System Board Layout...
- Page 2 SYM76941VGGA Quick Installation Guide 2、Connectors: Label Connectors JATXPWR1 DC12V Input IDE1 IDE device Connector FDD1 Floppy disk Connector TPM1 Trusted Platform Module Header USB1~USB2 USB 2.0 Headers SATA1~SATA4 Serial ATA Header JCFAN1 CPU Fan Header JDIO1 Digital I/O Connector JSFAN1...
- Page 3 SYM76941VGGA Quick Installation Guide 4、Front Panel Connector setting : Define Function Define Function Power LED+ Power HD LED+ Power LED+ HDD LED HD LED- Power LED- JPANEL1 Reset GND Power Reset Power Button Button Reset Power GND 5、Jumper Setting (JCMOS/JAT1):...
- Page 4 SYM76941VGGA Quick Installation Guide 6、COM1 RS232/422/485 setting: Note: JSEL1/JSEL2 determine that COM1 belongs to RS232/422/485 RS232 RS422 RS485 Carrier detect TX - Received data Transmitted Data terminal Data set ready Request to send Clear to send Ring JSEL2 RS232 RS422...
