Summary of Contents for Argos 833/0325

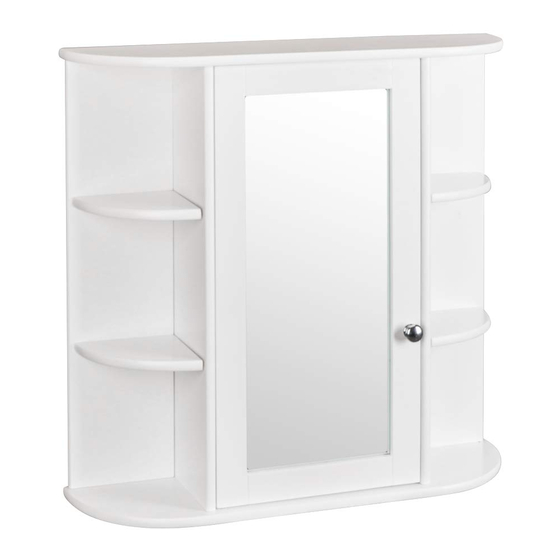

- Page 1 White Mirrored Cabinet With EXT Shelves 833/0325 60cm 16.5cm 58cm Issue 5 - 06/13/13...
- Page 2 CAUTION: please do not place metal containers on the shelves – as this could mark the paint...
- Page 3 Components - Panels If you have damaged or missing components, call the Customer Helpline:08456 400800 Please check you have all the panels listed below Bottom Panel Top Panel Door Back Panel Left side Panel Right side Panel Left & Right back Panel x 2 Shelf x 4 Adjustable Shelf...
-
Page 4: Tools Required
Components - Fittings Please check you have all the fittings listed below Note:The quantities below are the correct amount to complete the assembly .In some cases more fittings may be supplied than are required. Locking Nut x 4 Wooden Dowel x 20 Locking Pin x 4 35mm Screw x 18 12mm Screw x 2... - Page 5 Assembly Instructions Step 1 Assembling side panels NOTE:It would be useful to ask someone to help you at this stage. a: Insert dowels into shelves and use screws to fix the shelves on left & right back panels b:Insert dowels into shelves Insert locking nuts into back...
- Page 6 Assembly Instructions Step 2 Assembling bottom panel NOTE:It would be useful to ask someone to help you at this stage. Insert dowels into bottom panel and use 35mm screws to fix the bottom panel to side panels & Step 3 Assembling top and back panels NOTE:It would be useful to ask someone to help you at this stage.
- Page 7 Assembly Instructions Step 4 Assembling door panel and adjustable panel NOTE:It would be useful to ask someone to help you at this stage. a:Use 10mm screws to fix strike plate onto door panel Use 10mm screws to fix hinges onto door panel Use bolt to fix the knob onto...
- Page 8 With help , place the unit in the intended position. NOTE: Please make sure the unit is secure before use The assembly is now complete NOTE:If you have damaged or missing components, call the Customer Helpline:08456 400800 Argos LTD,489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW...
-
Page 9: A Guide To - Wall Mounting & Fixings
A Guide to - Wall Mounting & Fixings Important: When drilling into walls always Important note: check that there are no hidden wires or pipes etc. If plastic wall plugs Make sure that the screws and wall plugs being used are supplied with your are suitable for supporting your unit.
