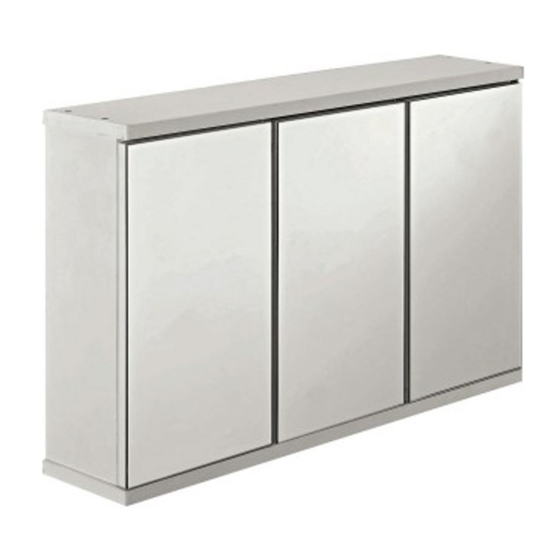

3 Door Mirror Cabinet
Assembly Instructions
Dimensions
Width - 59.2cm
Depth - 14cm
Height - 37.4cm
Important
- Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 6400800
- Please keep for future reference
832/8076
Version 3 Date: 20/06/14
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argos 832/8076
Summary of Contents for Argos 832/8076
- Page 1 Width - 59.2cm Depth - 14cm Height - 37.4cm Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: Argos = 0345 6400800 Version 3 Date: 20/06/14...
- Page 2 Warning Important - Please read these instructions fully before starting assembly BS 7449:1991 Model / Catalogue Number: 832/8076 Retailer: ARGOS Retailer address: 489-499 Avebury Boulevard, Saxon Gate West, Central Milton Keynes, Bucks, MK9 2NW WARNINGS • Do not place very hot or very cold items against or in close proximity to glass surface unless an adequately thick insulating material is used to prevent such items from coming into contact with the glass.
-
Page 3: Care And Maintenance
Safety and Care Advice Important – Please read these instructions fully before starting assembly • Check you have all the • During assembly do not stand • To reduce components and tools listed on or put weight on the product, the likelihood of the following pages. - Page 4 Components - Panels If you have damaged or missing components, call the Customer Helpline: Argos = 0345 6400800 Please check you have all the panels listed below Pilot holes for guidance only Top panel (59.1 x 14cm) Side back panel x 2 (28.7 x 18.3cm)
- Page 5 Components - Fittings Note: The quantities below are the correct amount to complete the assembly. in some cases mor may be supplied than are required. 30mm Dowel x 8 12mm Screw x 15 40mm Screw x 4 Hinge plug x 3 Door hinge x 6 50mm Screw x 16 Support cover x 12...
- Page 6 Assembly Instructions Step 1 Attaching back supports Insert Dowels into the Back supports Attach Middle right side panel and Right side panel onto the Back support Attach Middle left side panel and Left side panel onto the Back support Place a small amount of Glue into the grooves on the unit.
- Page 7 Assembly Instructions Step 2 Attaching bottom panel Insert Hinge plugs into the Bottom panel Place a small amount of Glue into the groove of Bottom panel Left side panel , Middle left side panel , Middle right side panel Right side panel onto the Bottom panel Use Screw covers...
- Page 8 Assembly Instructions Step 3 Attaching shelves SIide Support covers onto Shelf supports lnsert Shelf supports (Support covers included) into the unit. before inserting the Shelves. Note: Set the shelf supports to the desired height. Slide the Shelves into the unit. Step 4 Attaching top panel Door magnets...
- Page 9 Assembly Instructions Step 4 - continued Metal plates onto the Glass doors Insert the Door hinges into the Glass doors Carefully place the Glass doors onto the unit, locating the Door hinges into the Hinge plugs WARNING: • Do not place very hot or very cold items against or in close proximity to glass surface unless an adequately thick insulating material is used to prevent...
- Page 10 Note: Before use allow the Glue to dry for 24 hours and make sure the unit is secure. Assembly is complete. If you need help or have damaged or missing parts, call the Customer Helpline: Argos = 0345 6400800...
-
Page 11: A Guide To - Wall Mounting & Fixings
A Guide to - Wall Mounting & Fixings When drilling into walls always Important: Important note: check that there are no hidden wires or pipes etc. If plastic wall plugs Make sure that the screws and wall plugs being used are supplied with your are suitable for supporting your unit.
