Argos 832/7149 D Manual

Argos 832/7149 D Manual

Large white wood 3 door medicine cabinet
Hide thumbs

Advertisement

Quick Links

Download this manual
　　８＊３０＝４Ｘ
Ｆ
Ｇ
１
Ｇ
２
Ｈ
Ｉ
１
Ｉ
２
１

Advertisement

loading
Need help?

Need help?

Do you have a question about the 832/7149 D and is the answer not in the manual?

Questions and answers

Related Manuals for Argos 832/7149 D

Summary of Contents for Argos 832/7149 D

  • Page 1 Ｆ Ｇ １ Ｇ ２ Ｈ Ｉ １ Ｉ ２ 　　８＊３０＝４Ｘ １...

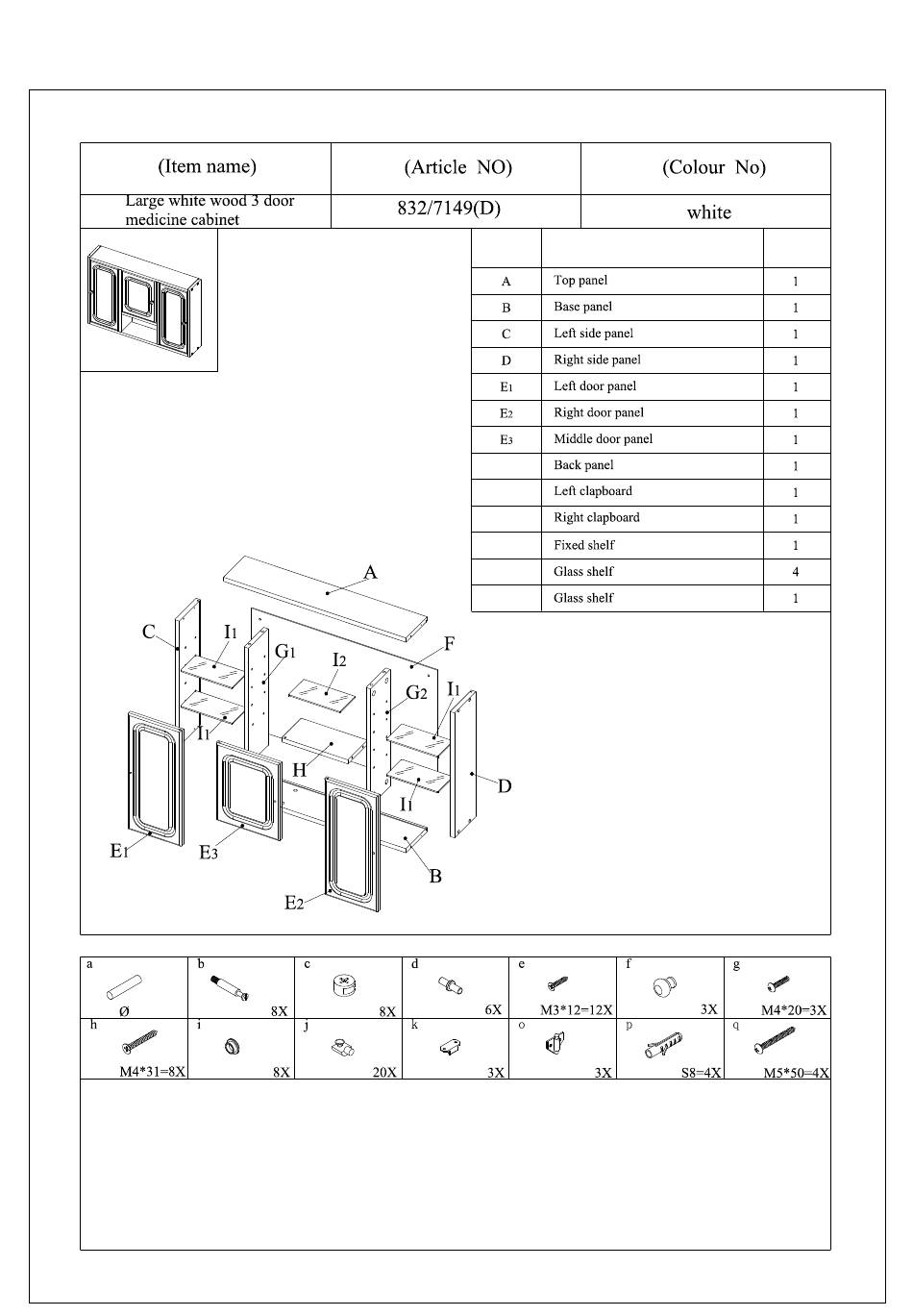

  • Page 2 　 　 　 Ａ Ｒ Ｇ Ｏ Ｓ Ｌ ａ ｒ ｇ ｅ　 ｗ ｈ ｉ ｔ ｅ　 ｗ ｏ ｏ ｄ　 ３　 ｄ ｏ ｏ ｒ ｍｅｄｉｃｉｎｅ　ｃａｂｉｎｅｔ ８ ３ ２ ／ ７ １ ４ ９ （ Ｄ ） ａ 　　８＊３０＝４Ｘ...
  • Page 3 ＃ １ ＃２ ３...
  • Page 4 ＃ ３ ＃４ ４...
  • Page 5 ＃ ５ ＃６ ｄ ｄ ｄ ５...
  • Page 6 ＃ ７ ＃８ ６...
  • Page 7 ＃ ９ ＃１０ ｊ ｊ ｊ Ｉ １ ７...
  • Page 8 ＃ １ １ ＃１２ ８...
  • Page 9 BS7449 : 1991 Keep these instructions for future use: Catalogue Number: 832/7149(D) Manufacture date: Retailer: ARGOS WARNINGS Retailer address: 489-499 Avebury Boulevard *It is essential that this unit is fixed to a wall with the Saxon Gate West fixings provided.

  • Page 10: Care And Maintenance

    A Guide to Wall Mounting & Fixings IMPORTANT: When drilling into walls always check that there are no hidden wires or pipes etc. Make sure that the screws and wall plugs being used are suitable for supporting your unit. Consult a qualified tradesperson if you are unsure. HINTS: 1) General Rule Always use a larger screw and wall plug if you are not sure.
  • Page 11 Large White Wood 3 Door Medicine Cabinet 832/7149 12.7...
  • Page 13 Components - Panels Please check you have all the panels listed below Bottom Left & right side x 2 4 Left & right door x 2 5 Middle door 6 Back Shelf 7 Left clapboard Right clapboard Glass shelf 1 x 4 11 Glass shelf 2...

  • Page 14: Tools Required

    Components - Fittings If you have damaged or missing components, call the Customer Helpline:08456 400800 Please check you have all the panels listed below Note:The quantities below are the correct amount to complete the assembly .In some cases more fittings may be supplied than are required. Wooden dowel x 4 Locking Pin x 8 Locking Nut x 8...

  • Page 15: Assembly Instruction

    Assembly Instruction Step 1 Assembling clapboards and fixed shelf NOTE:It would be useful to ask someone to help you at this stage. Use dowels to fix left and right clapboards 7 and with shelf in the middle Step 2 Assembling top and bottom panel NOTE:It would be useful to ask someone to help you at this stage.
  • Page 16 Assembly Instruction Step 4 Assembling back panel NOTE:It would be useful to ask someone to help you at this stage. Carefully slide the back panel into the grooves Step 5 Assembling right side panel NOTE:It would be useful to ask someone to help you at this stage.
  • Page 17 Assembly Instruction Step 6 Assembling glass shelves NOTE:It would be useful to ask someone to help you at this stage. a:Insert shelf supports into panels holes as shown b:Carefully input the glass shelves in the middle Turn the supports clockwise to lock the shelves c:Repeat step a and b to input the other 2pcs glass shelves...
  • Page 18 Assembly Instruction Step 7 Finishing the unit NOTE:It would be useful to ask someone to help you at this stage. a: Use 12mm screws to fix strike plate onto door panels Use knob bolt to fix knobs onto door panels b: Insert door shafts into door panels...
  • Page 19 Assembly Instruction Step 8 Finishing the unit NOTE:It would be useful to ask someone to help you at this stage. a:Insert screw caps into screw holes b:Use 35mm screw and Wall Plug to fix the unit on the wall With help , place the unit in the intended position NOTE: Please make sure the unit is secure before use...

  • Page 20: A Guide To - Wall Mounting & Fixings

    A Guide to - Wall Mounting & Fixings Important: When drilling into walls always Important note: check that there are no hidden wires or pipes etc. If plastic wall plugs Make sure that the screws and wall plugs being used are supplied with your are suitable for supporting your unit.

  • Page 21: Safety Warning Information

    SAFETY WARNING INFORMATION BS7449 : 1991 832/7149(D) Keep these instructions for future use: Catalogue Number: Manufacture date: May.10th.2010 Retailer: Argos Retailer address: 489-499 Avebury Boulevard Saxon Gate West Central Milton Keynes WARNINGS Bucks, MK9 2NW *Do not place very hot or very cold items against or in...
  • Page 22 Large White Wood 3 Door Medicine Cabinet 832/7149 12.7 Issue 4-12/11/12...
  • Page 24 Components - Panels If you have damaged or missing components, call the Customer Helpline:08456 400800 Please check you have all the panels listed below Top panel Left & right side x 2 Bottom panel Glass shelf 1 Left clapboard Glass shelf 2 x 4 Right clapboard 6 Back panel Shelf...
  • Page 25 Components - Fittings Please check you have all the fittings listed below Note:The quantities below are the correct amount to complete the assembly .In some cases more fittings may be supplied than are required. 35mm Screw x 16 Wooden dowel x 4 Shaft x 6 Strike Plate x 3 Knob x 3...
  • Page 26 Assembly Instructions Step 1 Assembling clapboards and fixed shelf NOTE:It would be useful to ask someone to help you at this stage. a:Use dowels to fix left and right clapboards with shelf in the middle. b:Use 35mm screws to fix bottom panel to the middle unit.
  • Page 27 Assembly Instructions Step 3 Assembling glass shelves NOTE:It would be useful to ask NOTE:It would be useful to ask someone to help you at this stage. someone to help you at this stage. a:Insert shelf supports into panels holes as shown. Carefully input the glass shelves in the middle.
  • Page 28 Assembly Instructions Step 4 Assembling door panels Use 10mm screws to fix strike plates onto door panels Use knob bolts to fix knobs onto door panels. Step 5 Assembling top panel and door panels NOTE:It would be useful to ask someone to help you at this stage.
  • Page 29 Assembly Instructions Step 5 - Continued Assembling top panel and door panels NOTE:It would be useful to ask someone to help you at this stage. b: Insert door shafts into bottom panel and shelf Carefully insert left door panel and right door panel into bottom panel Carefully insert middle door panel...
  • Page 30 With help , place the unit in the intended position. NOTE: Please make sure the unit is secure before use The assembly is now complete NOTE:If you have damaged or missing components, call the Customer Helpline:08456 400800 Argos LTD,489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW...
  • Page 31 A Guide to - Wall Mounting & Fixings Important: When drilling into walls always Important note: check that there are no hidden wires or pipes etc. If plastic wall plugs Make sure that the screws and wall plugs being used are supplied with your are suitable for supporting your unit.
  • Page 32 SAFETY WARNING INFORMATION BS7449 : 1991 832/7149(D) Keep these instructions for future use: Catalogue Number: Manufacture date: Dec.11th.2012 Retailer: Argos Retailer address: 489-499 Avebury Boulevard Saxon Gate West Central Milton Keynes WARNINGS Bucks, MK9 2NW *Do not place very hot or very cold items against or in...
