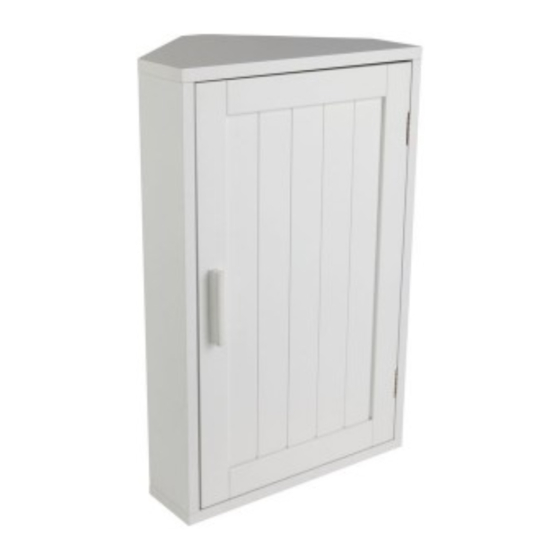

- Page 1 White Wooden Corner Cabinet 833/4792 35cm 25cm 55cm Issue 1 - 8/30/12...
- Page 3 Components - Panels If you have damaged or missing components, call the Customer Helpline:08456 400800 Please check you have all the panels listed below Left side Panel Middle back Panel Right side Panel Bottom Panel Adjustable shelf Top Panel 7 Door Panel 8 Left &...
-
Page 4: Tools Required
Components - Fittings Please check you have all the fittings listed below Note:The quantities below are the correct amount to complete the assembly .In some cases more fittings may be supplied than are required. Wooden dowel x 6 Locking Pin x 6 Locking Nut x 6 Hinge x 2 Magnetic Catch x 1... - Page 5 Assembly Instructions Step 1 Assembling bottom and middle back panel a: Insert dowels and locking pins into bottom panel b: Insert locking nut into middle back panel and attach it onto the bottom panel Tighten the locking nut secure the unit. Option 1 Step 2 Option 2...
- Page 6 Assembly Instructions Step 3 Assembling top panel a:Screw locking pins into top panel Using 10mm screws to fix hanger brackets onto top panel. b:Insert dowels and locking nuts into middle back panel side panels Carefully attach top panel to the unit.
- Page 7 Assembly Instructions Step 5 Assembling door panel NOTE:It would be useful to ask someone to help you at this stage. a:Use 12mm screws to fix hinges onto the door panel Use 30mm screws to fix wooden handle onto door panel b:Carefully use 12mm screws to fix hinges onto the right side...
- Page 8 Carefully put the adjustable shelf panel on it. NOTE: Please make sure the unit is secure before use. NOTE:If you have damaged or missing components, The assembly is now complete. call the Customer Helpline:08456 400800 Argos LTD,489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW...
-
Page 9: A Guide To - Wall Mounting & Fixings
A Guide to - Wall Mounting & Fixings Important: When drilling into walls always Important note: check that there are no hidden wires or pipes etc. If plastic wall plugs Make sure that the screws and wall plugs being used are supplied with your are suitable for supporting your unit.
