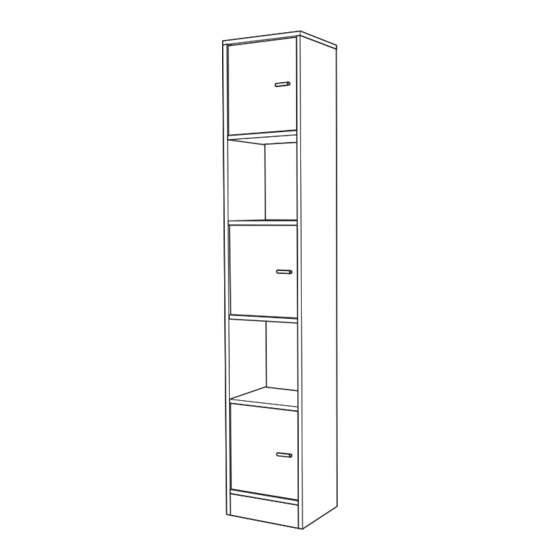

Tall Storage Unit
Assembly Instructions
Dimensions
Width - 32.5cm
Depth - 30.1cm
Height - 180cm
Important
- Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
- Please keep for future reference
833/2536
Version 2 Date: 08/09/11
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argos 833/2536
Summary of Contents for Argos 833/2536
- Page 1 Tall Storage Unit 833/2536 Assembly Instructions - Please keep for future reference Dimensions Width - 32.5cm Depth - 30.1cm Height - 180cm Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800...
- Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly • Check you have all the • Do not stand on the product, • We do not components and tools listed on this could cause damage. recommend the pages 2 and 3.
- Page 3 Components - Panels If you have damaged or missing components, call the Customer Helpline: 08456 400800 Please check you have all the panels listed below Pilot holes for guidance only Left side panel (178.4 x 29.9cm) Pilot holes for guidance only Right side panel (178.4 x 29.9cm) Pilot holes...
-
Page 4: Tools Required
Components - Fittings Note: may be supplied than are required. Wooden dowel x 20 30mm Screw x 6 50mm Screw x 14 15mm Screw x 6 14mm Screw x 9 12mm Screw x 3 Door stopper x 3 Handle x 3 Door hinge x 6 Hinge plug x 3 Screw cover x 14... - Page 5 Assembly Instructions Step 1 Fitting hinges and handles to doors Metal plate onto the Door Insert the Door hinges into the Door Handle onto the Door Use the same method as to assembly another doors.
- Page 6 Assembly Instructions Step 2 Fitting dowels and door stopper Caution: Always check the assembly method is correct before applying glue. Insert Hinge plug into the Middle panel Place a small amount of Glue into the dowel holes. Insert Wooden dowels into the Middle panel Door stopper...
- Page 7 Assembly Instructions Step 3 Fitting the bottom panel Place a small amount of Glue into the dowel holes. Insert Wooden dowels into the Bottom panel Insert Hinge plug into the Bottom panel Plastic supports onto the Front panel Finished front edge Finished front edge Front panel...
- Page 8 Assembly Instructions Step 4 Fitting left side panel Place a small amount of Glue into the dowel panel and Middle panel onto Left side panel using Screws Plastic supports onto the Left side panel Use Screw covers cover the Screw heads. Place a small amount of Glue into the dowel...
- Page 9 Assembly Instructions Step 4 - continued Place a small amount of Glue into the dowel holes. Position Top shelf and Shelves onto Left side panel using Screws Use Screw covers cover the Screw heads. Step 5 Fitting the back panels It would be useful Note: to ask someone to help...
- Page 10 Assembly Instructions Step 6 Fitting the right side panel Place a small amount of Glue into the dowel holes and groove. Use side panel onto the unit. Plactic Support onto the Right side panel Use Screw covers cover the Screw heads. Step 7 Fitting the top panel Door stopper...
- Page 11 Assembly Instructions Step 8 Note: Wall plugs supplied are for solid wall only. Fixing to wall wall be used for your wall, seek professional advice if in doubt It is recommended that the strap onto the top panel. With help, move unit into Top panel position.
-
Page 12: A Guide To - Wall Mounting & Fixings
A Guide to - Wall Mounting & Fixings Important: When drilling into walls always Important note: check that there are no hidden wires or pipes etc. If plastic wall plugs Make sure that the screws and wall plugs being used are supplied with your are suitable for supporting your unit.
