ZURN Ecolotrol Z1310 Manual

HYDRANTS

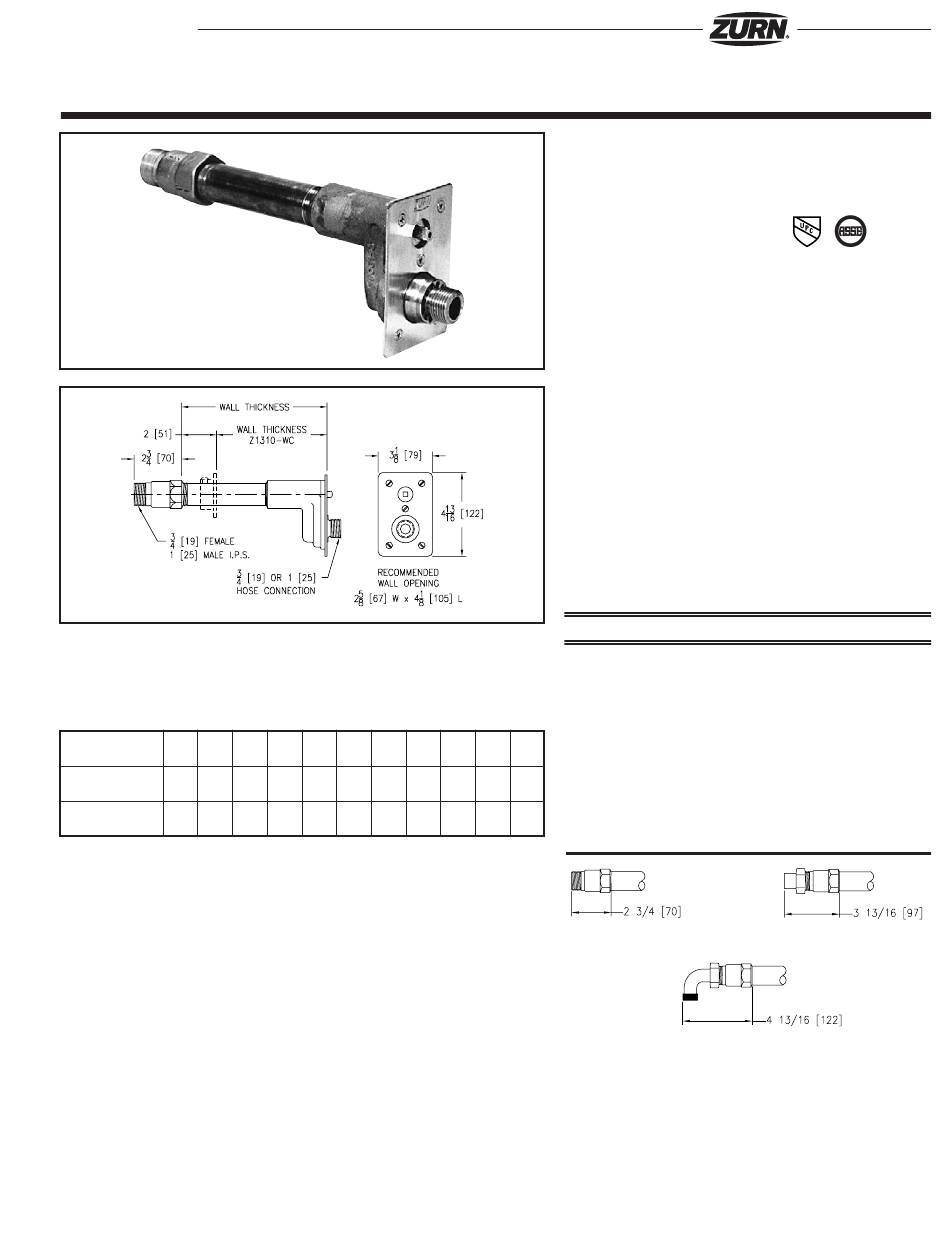

Z1310 ECOLOTROL WALL HYDRANT – Exposed, Non-Freeze, Anti-Siphon, Automatic Draining
ENGINEERING SPECIFICATION: ZURN Z1310 Exposed Ecolotrol anti-siphon automatic
draining wall hydrant. Complete with non-freeze integral backflow pre ven ter, bronze
casing, all bronze interior parts, non-turning operating rod with free-floating compres-
sion closure valve, replaceable bronze seat and seat washer, and combination 3/4" [19
mm] female or 1" [25 mm] male straight IP inlet. Stainless steel face with operating key.
Wall Thickness 4" 6"
Inches [mm] [102] [152] [203] [254] [305] [356]
Overall Length*
6 ⁄ " 8 ⁄ " 10
3 3
4 4
Inches [mm]
[171] [222] [273] [324] [375] [425]
Approx. Weight 5 5
Lbs. [Kg] [2] [2]
*3/4" [19 mm] female and 1" [25 mm] male IPS connections.
ZURN INDUSTRIES, LLC Specification Drainage Operation , 1801 Pittsburgh Avenue, Erie, PA 16502, 855.663.9876 Form No. ZMKTG210-15, 7/18
8" 10" 12" 14" 16" 18"
[406] [457]
⁄ " 12 ⁄ " 14 ⁄ " 16 ⁄ " 18 ⁄ " 20
3 3 3 3 3 3
4 4 4 4 4
[476] [527]
5 8 8 8 11 11
[2] [4] [4] [4] [5] [5]

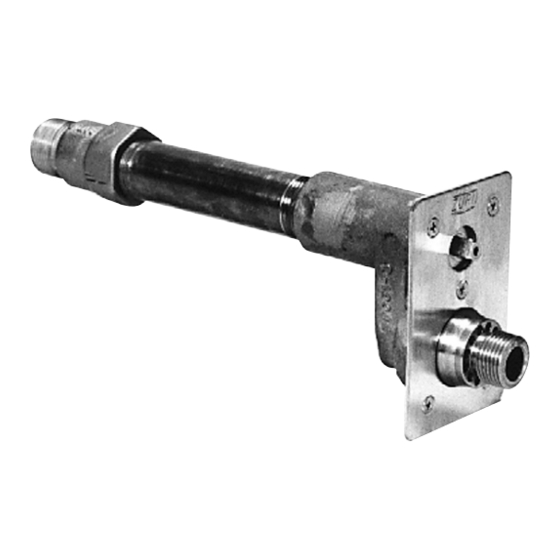

Z1310 Ecolotrol Wall Hydrant
The Z1310 Ecolotrol is an exposed, automatic draining, non-freeze, anti-
siphon wall hydrant designed for commercial applications such as office
buildings, institutions, hospitals, malls and retail outlets, and schools.

Hydrant Features

• Certification – IAPMO
Approved under ASSE standard 1019-A
(3/4" [19 mm] connection).
• Integral Anti-Siphon Vacuum Breaker/Backflow Preventer – Unique
design utilizes an internal Equa-Balance
tion of the potable water supply through back siphonage. The use of an
additional hose-connection vacuum breaker with ASSE 1011 approval
is not necessary.
• Valve Seat – Removable bronze valve seat with circular seating surface.
• Valve – One-piece assembly, replaceable, free-floating compression
closure valve plunger operates the water flow and drainage with a maxi-
mum of two and one-half (2-1/2) turns. No adjustments are necessary.
• Casing – Threaded brass pipe nipple.
• Operating Screw – Chrome-plated brass.
• Operating Rod – 3/8" [10 mm] solid brass.
• Faceplate – Constructed of type 304 stainless steel with brush finish.
• Modular Installation – Hydrant may be installed in a horizontal or
vertical orientation. Fits standard modular brick course when installed
horizontally.
• Drainage – Through circular drain ports of the nozzle.
• Operating Pressures – Minimum running pressure 8 psi. Maximum
static pressure 125 psi.
• Temperature Range – Minimum 33°F. Maximum 130°F.

SUFFIXES

–PB
–RA2 12" [305 mm] Replacement Rod Assembly with Repair Kit (-RK)
–RA4 24" [610 mm] Replacement Rod Assembly with Repair Kit (-RK)
–RK
20" 22" 24"
[508] [559] [610] –SB
–WC
⁄ " 22 ⁄ " 24 ⁄ " 26 ⁄ "
3 3 3
4 4 4 4
[578] [629] [679]
–34FS 3/4" [19 mm] Solder Female Inlet Adapter
–34UN 3/4" [19 mm] IP 90° Inlet Elbow with Union Nut
14 14 14
[6] [6] [6]
Inlet Descriptions
Standard
® listed.
®

OPTIONS

Polished Bronze Face
Hydrant Parts Repair Kit
Statuary Bronze Face (Specify light, medium, or dark finish.)
Wall Clamp
-34UN
®
seal to prevent contamin a-
-34FS
Page 17
