ZURN ZSHIELD Z1072 Installation Instructions

TM

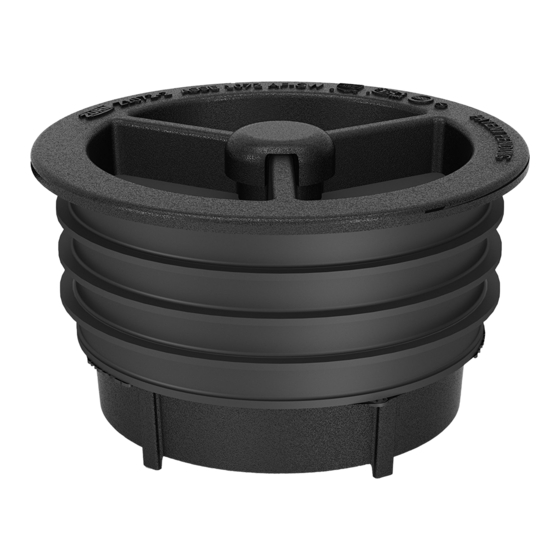

Z1072 ZSHIELD can be installed in Extra Heavy Cast Iron Soil
Pipe, Hubless Cast Iron Soil Pipe, PVC Drain, Waste and Vent
Pipe, PVC Schedule 40 Pipe and Service Cast Iron Soil Pipe.

For 2", 3" and 3.5" Retro-Fit Installation

4" Size can be Retro-Fit, if the -HD (4" Shank) top assembly was
installed
1. Remove screws and strainer from installed drain.
Make sure drain outlet is clear of any debris or obstructions prior to
installing the Z1072.
2. Align Z1072 with the center of the drain assembly
3. Push Z1072 into bottom of drain body or outlet pipe until the
underside of the barrier trap is flush with bottom of drain or top of
the pipe. See Fig. 3)
If using the 3.5" barrier trap seal push the barrier trap down until the
underside of the barrier trap is flush with the shank of the strainer.
See Fig. 3a
WARNING: Cancer and Reproductive Harm -
ADVERTENCIA: Cáncer y daño reproductivo -
AVERTISSEMENT: Cancer et effets néfastes sur la reproduction -
Zurn Industries, LLC | Specification Drainage Operation
1801 Pittsburgh Avenue, Erie, PA U.S.A. 16502 · Ph. 855-663-9876, Fax 814-454-7929
In Canada | Zurn Industries Limited
3544 Nashua Drive, Mississauga, Ontario L4V 1L2 · Ph. 905-405-8272, Fax 905-405-1292
www.zurn.com

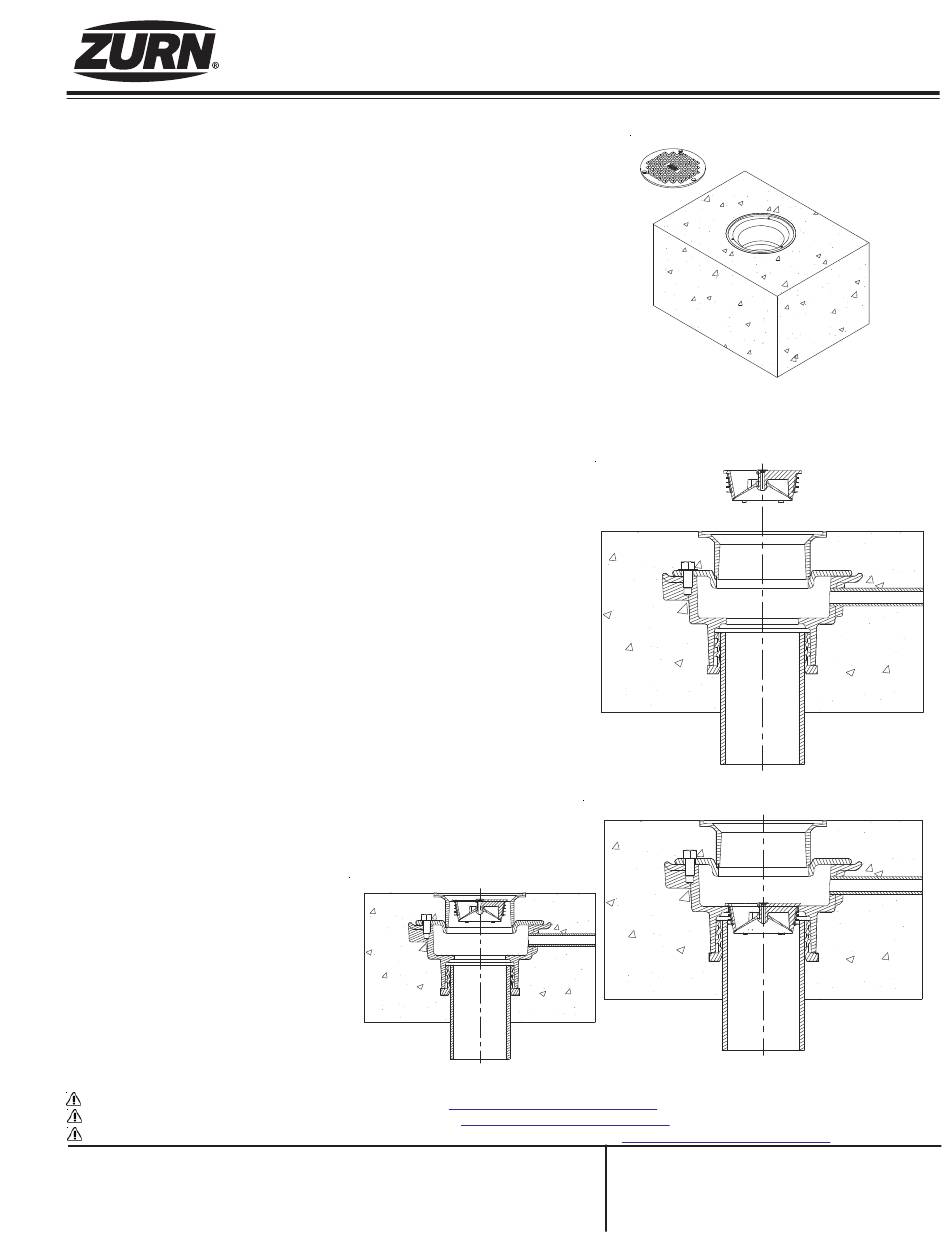

ZSHIELD BARRIER TRAP INSTALLATION INSTRUCTIONS
™
Fig. 3a
www.P65Warnings.ca.gov
www.P65Warnings.ca.gov
Z1072
www.P65Warnings.ca.gov
Rev. B
Date: 11/19/2018
C.N. No. 140861
Form No. FD95
Fig. 1
Fig. 2
Fig. 3
Page 1 of 2
