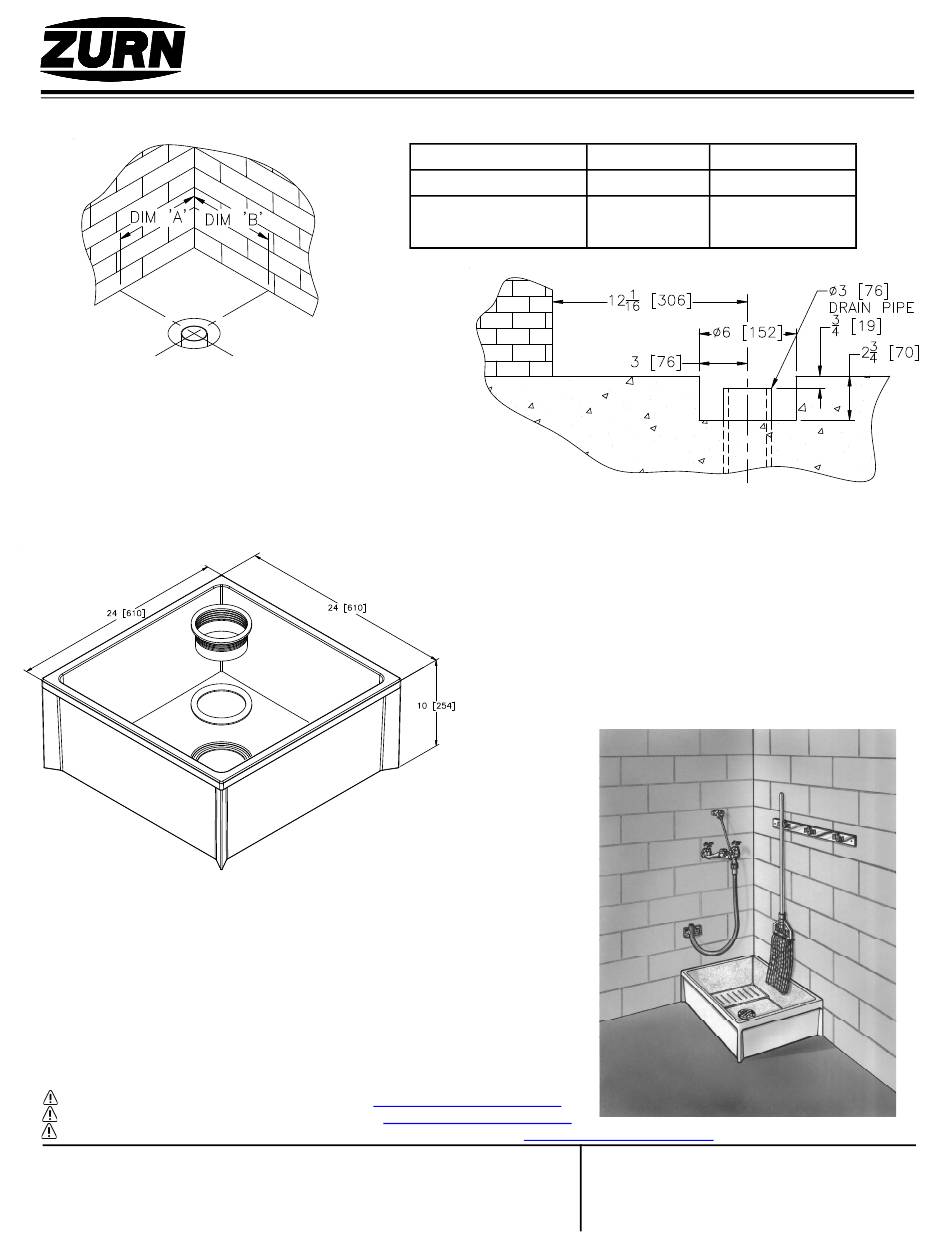

ZURN Z1996 Installation And Maintenance Instructions

®
Dimensional Data (inches and [mm]) are Subject to Manufacturing Tolerances and Change Without Notice
1. EXCAVATION
Locate center of the drain pipe according to what size
mop sink is being used and how it is positioned. Refer
to the drawing and chart above for this information. It is
important to leave a 6" diameter pocket in the con-
crete, around the drain pipe to allow for the drain body.
3. MAINTENANCE
In order to uphold the longevity of the ZURN mop sink. It should be
rinsed out or wiped down after every use and periodically cleaned with
a non-abrasive mild detergent.
WARNING: Cancer and Reproductive Harm -
ADVERTENCIA: Cáncer y daño reproductivo -
AVERTISSEMENT: Cancer et effets néfastes sur la reproduction -
Zurn Industries, LLC | Specification Drainage Operation
1801 Pittsburgh Avenue, Erie, PA U.S.A. 16502 · Ph. 855-663-9876, Fax 814-454-7929
In Canada | Zurn Industries Limited
3544 Nashua Drive, Mississauga, Ontario L4V 1L2 · Ph. 905-405-8272, Fax 905-405-1292
www.zurn.com
Z1996 MOP BASIN INSTALLATION
AND MAINTENANCE INSTRUCTIONS
www.P65Warnings.ca.gov
www.P65Warnings.ca.gov
MOP SINK
24 [810] X 24 [810] 12-1/16 [306]
18-1/16 [459]
24 [810] X 36 [914]
12-1/16 [306]
The stainless steel drain bodies are factory installed. The PVC drain
bodies are assembled at the job site. Once the drain body is in-
stalled, carefully place the mop basin in the designated area aligning
the drain body with the drain pipe (lubricating the drain pipe with soap
or petroleum jelly will ease the gasket alignment). Secure the gasket
around the drain pipe with the compression ring and disposable
wrench provided. Replace the stainless steel strainer and fasten with
the two screws provided. Once the mop basin is in place, seal all
www.P65Warnings.ca.gov
Rev.
Date:
C.N. No.
Form No. FT138
DIM 'A' DIM 'B'
12-1/16 [306]
12-1/16 [306]
18-1/16 [459]
2. ASSEMBLY & INSTALLATION
sides with a silicone caulking.
B
05/14/2018
140032
