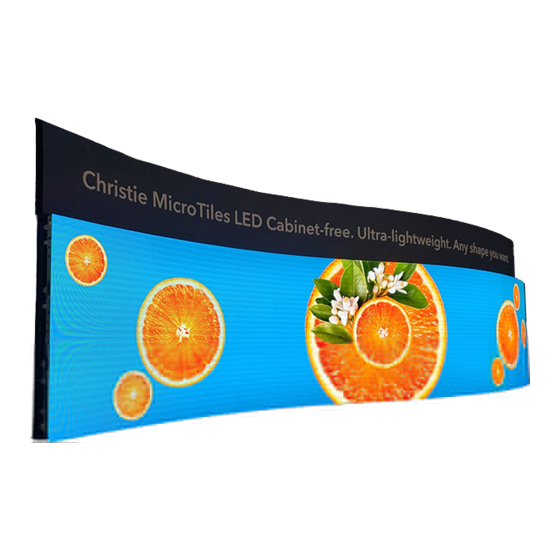

Christie MicroTiles LED User Manual
  1. Manuals
  2. Brands
  3. Christie Manuals
  4. Monitor
  5. MicroTiles
  6. User manual

Christie MicroTiles LED User Manual

Hide thumbs Also See for MicroTiles LED:
Table of Contents

Advertisement

Quick Links

Download this manual
User Guide
020-102835-03
MicroTiles LED

Advertisement

Table of Contents
loading

Related Manuals for Christie MicroTiles LED

Summary of Contents for Christie MicroTiles LED

  • Page 1 User Guide 020-102835-03 MicroTiles LED...
  • Page 2 The warranty does not apply to any product where the serial number has been removed or obliterated. The warranty also does not apply to any product sold by a reseller to an end user outside of the country where the reseller is located unless (i) Christie has an office in the country where the end user is located or (ii) the required international warranty fee has been paid.

  • Page 3: Table Of Contents

    Understanding the MicroTiles LED interface........6...
  • Page 4 Updating the MicroTiles LED software........

  • Page 5: Product Overview

    Product overview Christie MicroTiles LED tiles are modular, high-quality image display units that can be configured to create small display configurations as well as larger more complex display canvases of virtually any size and shape. Each tile captures a portion of the image and applies scaling, as required, which results in a single picture.

  • Page 6: Understanding The Microtiles Led Interface

    Understanding the MicroTiles LED interface Learn the different areas of the web user interface. Task bar—Provides access to the configuration of the MicroTiles LED array. • Dashboard—Displays a summary view of the array. • Input Selection—Identifies and tests the inputs providing content to the array.

  • Page 7: Configuring The Array

    Configure the MicroTiles LED array through the web user interface. Accessing the MicroTiles LED web user interface Learn how to access the web user interface. The MicroTiles LED web user interface is supported on the following browsers: • Google Chrome •...

  • Page 8: Accessing The Generated User Account Password

    Use the generated password to access the web user interface. Displaying content on the array Learn the different methods of configuring the input for a MicroTiles LED array. Selecting the input Configure the input for an array with one or more LED wall controllers.
  • Page 9 Redundancy models with a single wall controller • One input into the array, providing no input redundancy. Redundancy exists between octrollers. MicroTiles LED User Guide 020-102835-03 Rev. 1 (09-2020) Copyright © 2020 Christie Digital Systems USA, Inc. All rights reserved.
  • Page 10 • Each wall controller has two inputs from the same source but the sources are different, providing redundancy for stitched content. MicroTiles LED User Guide 020-102835-03 Rev. 1 (09-2020) Copyright © 2020 Christie Digital Systems USA, Inc. All rights reserved.

  • Page 11: Resetting All Tiles To Use The Primary Wall Controller

    Resetting all tiles to use the primary wall controller (on page 11) Generating an EDID Configure MicroTiles LED to accept the video source in the preferred signal formats. 1. Log into the MicroTiles LED web user interface. 2. Select Input Selection.

  • Page 12: Mapping The Canvas

    MicroTiles LED tiles are equipped with neighbor detection, which automatically determines the location of each tile within the canvas and the overall configuration of the canvas. Christie recommends automatically mapping the tiles in the array after the chassis are installed, and after the LED tiles are installed on the chassis.

  • Page 13: Manually Mapping The Tiles In The Array

    When typing the row or column number, do not include the letter after the number. For example, type 5 and not 5R. The location of the tile is updated immediately. MicroTiles LED User Guide 020-102835-03 Rev. 1 (09-2020) Copyright © 2020 Christie Digital Systems USA, Inc. All rights reserved.

  • Page 14: Scaling The Content

    5. Set the width and height of the content window. Setting up MicroTiles LED for 3D MicroTiles LED is capable of displaying stereoscopic 3D video sources, relying on additional hardware (stereo emitters and glasses) to complete the display system. 3D is only available on 1.25mm tiles.

  • Page 15: 3D Requirements

    MicroTiles LED uses a dual-input configuration for displaying 3D content, where two video streams are provided by the video server, with the left eye supplied by one stream and the right eye supplied by the other.

  • Page 16: Active Stereo 3D Configuration

    2. Using an appropriate length of QSFP+AOC optical cable, connect the cables from the LED wall controller to the first Octroller. Various lengths of this cable assembly are available from Christie. 3. Connect a QSFP+DAC cable between each Octroller in the array.

  • Page 17: Enabling 3D

    Various lengths of CAT 6 unshielded, UTP, 24 AWG pre-terminated cables are available from Christie. Alternatively, a custom length of Ethernet cable can be created using the Christie Cat 6 cable spool (P/N: 161-120104-XX), rJ45 Connect kit (P/N: 161-122106-XX) and Ethernet crimping tool (P/N: 11-121105-XX).

  • Page 18: Adjusting The Image

    To return the seam values back to the original values, return the seams to the default settings. 1. Select Seam Correction. 2. Click Reset. MicroTiles LED User Guide 020-102835-03 Rev. 1 (09-2020) Copyright © 2020 Christie Digital Systems USA, Inc. All rights reserved.

  • Page 19: Adjusting The Color Luminosity Of The Array

    Defines the hue of each primary color component (red, green, and blue). Adjustments to the color saturation may require that seam brightness be re-adjusted. MicroTiles LED User Guide 020-102835-03 Rev. 1 (09-2020) Copyright © 2020 Christie Digital Systems USA, Inc. All rights reserved.

  • Page 20: Adjusting The Brightness Of Led Modules

    12. Confirm the brightness uniformity and balance is matched across all LED modules. 13. If the brightness is still not uniform or balanced, repeat steps 4 to 11 until the brightness is correct. MicroTiles LED User Guide 020-102835-03 Rev. 1 (09-2020) Copyright © 2020 Christie Digital Systems USA, Inc. All rights reserved.

  • Page 21: Maintaining The Array

    Understand the procedures for performing maintenance on the MicroTiles LED array. Checking the current software version Verify the version of the software running on the MicroTiles LED array. 1. Select System Settings. 2. In the Software area, review the current version and the date of the last update.

  • Page 22: Synchronizing The Date And Time

    4. To power on the array, turn on the rectifiers and wall controllers. 5. To bring the array out of Standby mode, in the web user interface select Power > Power On Wall. MicroTiles LED User Guide 020-102835-03 Rev. 1 (09-2020) Copyright © 2020 Christie Digital Systems USA, Inc. All rights reserved.

  • Page 23: Cleaning The Led Panels

    Maintaining the array Cleaning the LED panels Learn how to clean the MicroTiles LED panel. Notice. If not avoided, the following could result in property damage. • Always wear clean, lint-free gloves when handling the product. To avoid the risk of damaging the LEDs, clean the panel only if absolutely necessary.

  • Page 24: Troubleshooting The Array

    Learn the information and procedures for troubleshooting issues with the MicroTiles LED array. Viewing the status of the entire array To assist with diagnostics, use the status interface to view status information about the Christie MicroTiles LED. 1. Select Status or click the colored bar in the top right corner.

  • Page 25: Downloading The Log Files

    The tiles in the array are updated to display their current temperatures in Celcius. 4. To turn off the test pattern, select Off. MicroTiles LED User Guide 020-102835-03 Rev. 1 (09-2020) Copyright © 2020 Christie Digital Systems USA, Inc. All rights reserved.
  • Page 26 Corporate offi ces Worldwide offi ces Christie Digital Systems USA, Inc. Africa United Kingdom Columbia Korea (Seoul) ph: 714 236 8610 ph: +27 (0)11 510 0094 ph: +44 (0) 118 977 8000 ph: +57 (318) 447 3179 ph: +82 2 702 1601 Christie Digital Systems Canada Inc.
